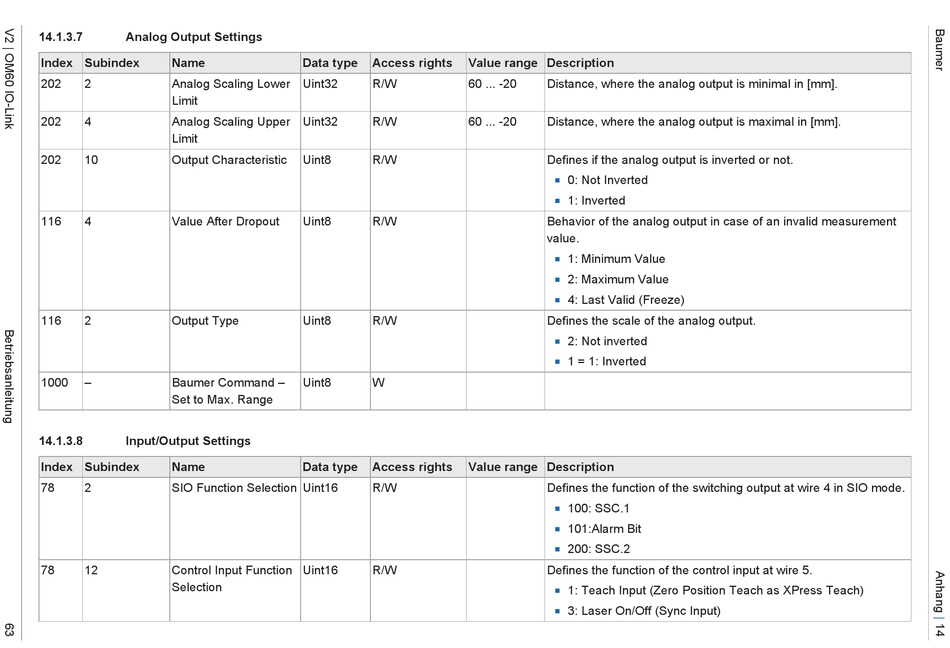

14.1.3.7
Analog Output Settings
Index Subindex
Name
202
2
Analog Scaling Lower
Limit
202
4
Analog Scaling Upper
Limit
202
10
Output Characteristic
116
4
Value After Dropout
116
2
Output Type
1000
–
Baumer Command –
Set to Max. Range
14.1.3.8
Input/Output Settings
Index Subindex
Name
78
2
SIO Function Selection Uint16
78
12
Control Input Function
Selection
Data type
Access rights
Value range Description
Uint32
R/W
60 ... -20
Uint32
R/W
60 ... -20
Uint8
R/W
Uint8
R/W
Uint8
R/W
Uint8
W
Data type
Access rights
Value range Description
R/W
Uint16
R/W
Distance, where the analog output is minimal in [mm].
Distance, where the analog output is maximal in [mm].
Defines if the analog output is inverted or not.
0: Not Inverted
n
1: Inverted
n
Behavior of the analog output in case of an invalid measurement
value.
1: Minimum Value
n
2: Maximum Value
n
4: Last Valid (Freeze)
n
Defines the scale of the analog output.
2: Not inverted
n
1 = 1: Inverted
n
Defines the function of the switching output at wire 4 in SIO mode.
100: SSC.1
n
101:Alarm Bit
n
200: SSC.2
n
Defines the function of the control input at wire 5.
1: Teach Input (Zero Position Teach as XPress Teach)
n
3: Laser On/Off (Sync Input)
n
