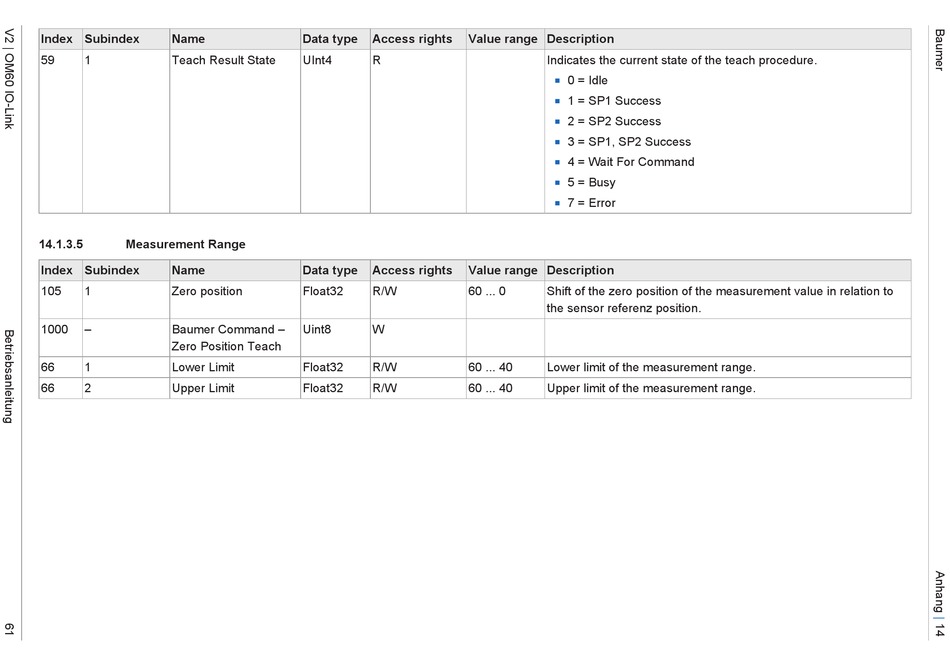

Index Subindex
Name
59
1
Teach Result State
14.1.3.5
Measurement Range
Index Subindex
Name
105
1
Zero position
1000
–
Baumer Command –
Zero Position Teach
66
1
Lower Limit
66
2
Upper Limit
Data type
Access rights
Value range Description
UInt4
R
Data type
Access rights
Value range Description
Float32
R/W
60 ... 0
Uint8
W
Float32
R/W
60 ... 40
Float32
R/W
60 ... 40
Indicates the current state of the teach procedure.
0 = Idle
n
1 = SP1 Success
n
2 = SP2 Success
n
3 = SP1, SP2 Success
n
4 = Wait For Command
n
5 = Busy
n
7 = Error
n
Shift of the zero position of the measurement value in relation to
the sensor referenz position.
Lower limit of the measurement range.
Upper limit of the measurement range.
