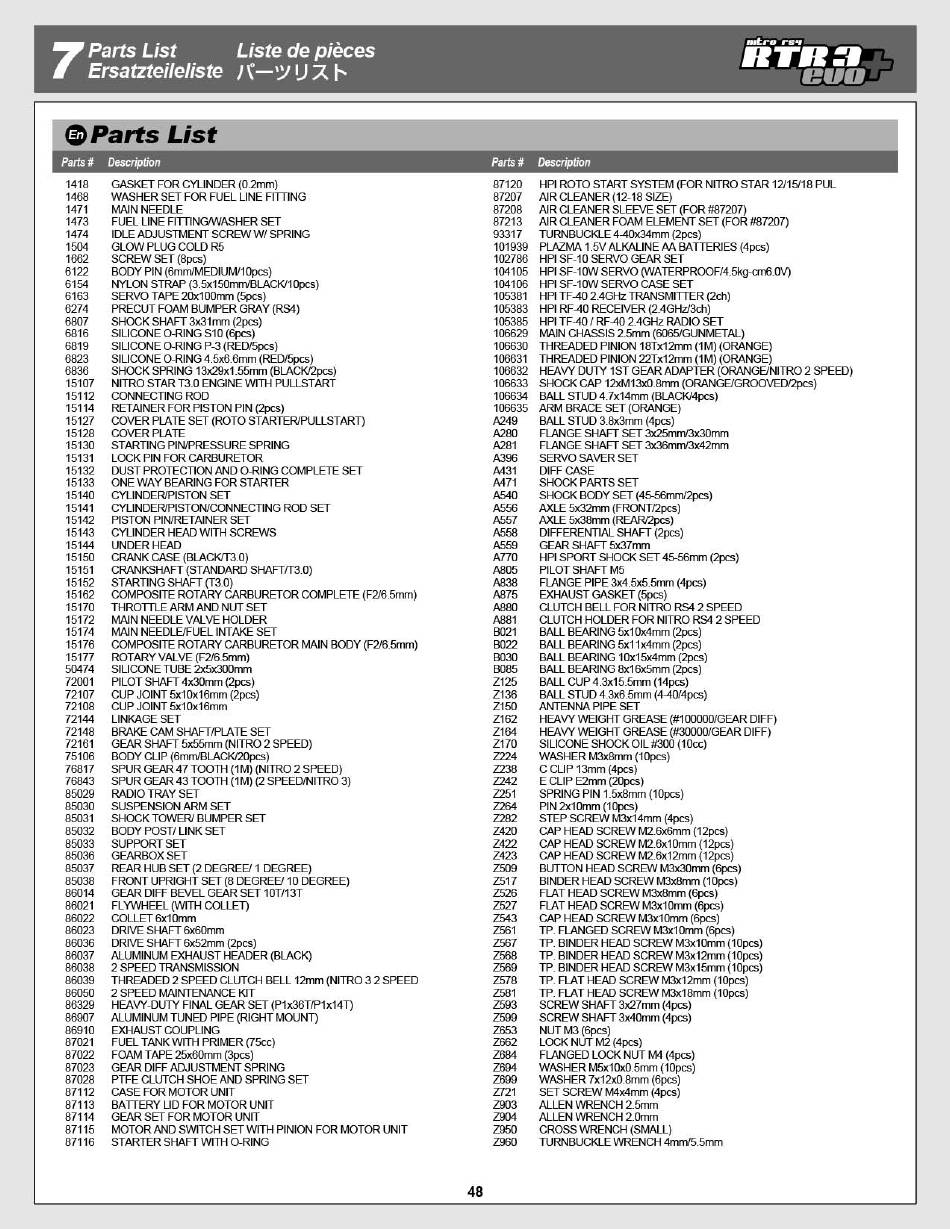

HPI Racing NITRO RS4 RTR 3 EVO+ Bauanleitung Seite 48

Liste de piéces
parts List
Ersatzteileliste
O Parts List
Pans # Description
1418 GASKET FOR CYLINDER (02mm)
1468 WASHER SET FOR FUEL LINE FITTING
1471 MAIN NEEDLE
1473 FUEL LINE FITTING/WASHER
1474 IDLE ADJUSTMENT SCREW
1504 GLOW PLUG COLD R5
1662 SCREW SET (8pcs)
6122 BODY PIN (6mm/MEDlUWIOpcs)
NYLON STRAP (3.5x150m-vBLACWIOpcs)
6154
6163 SERVO TAPE 20x100mrn (5pcs)
6274 PRECUT FOAM BUMPER GRAY (RS4)
6807 SHOCK SHAFT 3x31mm (2pcs)
6816 SILICONE O-RING SIO (6pcs)
6819 SILICONE O-RING P-3 (RED/5pcs)
6823 SILICONE O-RING 4.5x6.6mm (RED/5pcs)
6836 SHOCK SPRING 13x29x1.55mm (BLACKQpcs)
15107 NITRO STAR T3.O ENGINE
15112 CONNECTING ROD
15114 RETAINER FOR PISTON PIN (2pcs)
15127 COVER PLATE SET (ROTO STARTER/PULLSTART)
15128 COVER PLATE
15130 STARTING PIWPRESSURE
15131 LOCK PIN FOR CARBURETOR
15132 DUST PROTECTION AND ORING
15133 ONE WAY BEARING FOR STARTER
15140 CYLINDER/PISTON SET
15141 CYLINDER'PISTON/CONNECTING
15142 PISTON PIN/RETAINER SET
15143 CYLINDER HEAD WITH SCREWS
15144 UNDER HEAD
15150 CRANK CASE (BLACK/T3.O)
15151 CRANKSHAFT (STANDARD SHAFTIT3.O)
15152 STARTING SHAFT 03.0)
15162 COMPOSITE ROTARY CARBURETOR COMPLETE (F2/6.5mm)
15170 THROTTLE ARM AND NUT SET
15172 MAIN NEEDLE VALVE HOLDER
15174 MAIN NEEDLE/FUEL INTAKE
15176 COMPOSITE ROTARY CARBURETOR MAIN BODY (F2/6.5mm)
15177 ROTARY VALVE (F2/6.5mm)
50474 SILICONE TUBE 2x5x300mm
PILOT SHAFT 4x30mm (2pcs)
72001
72107 CUP JOINT 5x10x16mm (2pcs)
72108 CUP JOINT 5x10x16mm
72144 LINKAGE SET
72148 BRAKE CAM SHAFT/PLATE
72161 GEAR SHAFT 5x55mm (NITRO 2 SPEED)
75106 BODY CLIP (6mm/BLACK/20pcs)
76817 SPUR GEAR 47 TOOTH (1M) (NITRO 2 SPEED)
SPUR GEAR 43 TOOTH (1M) (2 SPEEDINITRO 3)
76843
85029 RADIO TRAY SET
85030 SUSPENSION ARM SET
85031 SHOCK TOWER/ BUMPER
85032 BODY POST/ LINK SET
85033 SUPPORT SET
85036 GEARBOX SET
85037 REAR HUB SET (2 DEGREE] 1 DEGREE)
85038 FRONT UPRIGHT SET (8 DEGREE/ 10 DEGREE)
86014 GEAR DIFF BEVEL GEAR SET IOT/13T
86021 FLWVHEEL (WITH COLLET)
86022 COLLET 6x10mm
86023 DRIVE SHAFT 6x60mm
86036 DRIVE SHAFT 6x52mm (2pcs)
86037 ALUMINUM EXHAUST HEADER (BLACK)
86038 2 SPEED TRANSMISSION
THREADED 2 SPEED CLUTCH BELL 12mm (NITRO 3 2 SPEED
86039
86050 2 SPEED MAINTENANCE KIT
86329 HEAVY-DUTY FINAL GEAR SET (Pix36T/P1x14T)
86907 ALUMINUM TUNED PIPE (RIGHT MOUNT)
86910 EXHAUST COUPLING
87021 FUEL TANK WITH PRIMER (75cc)
87022 FOAM TAPE 25x60mm (3pcs)
87023 GEAR DIFF ADJUSTMENT
87028 PTFE CLUTCH SHOE AND SPRING
87112 CASE FOR MOTOR UNIT
87113 BATTERY LID FOR MOTOR
87114 GEAR SET FOR MOTOR UNIT
87115 MOTOR AND SWITCH SET WITH
87116 STARTER SHAFT WITH O-RING
SET
WI SPRING
WITH PULLSTART
SPRING
COMPLETE SET
ROD SET
SET
SET
SET
SPRING
SET
UNIT
PINION FOR MOTOR UNIT
Part # Description
87120 HPI ROTO START SYSTEM (FOR NITRO STAR 12/15/18 PUL
87207 AIR CLEANER (12-18 SIZE)
87208 AIR CLEANER SLEEVE SET (FOR #87207)
87213 AIR CLEANER FOAM ELEMENT SET (FOR #87207)
TURNBUCKLE 440x34mm (2pcs)
93317
101939 PLAZtvtA 1SV ALKALINE AA BATTERIES (4pcs)
102786 HPI SF-IO SERVO GEAR
104105 HPI SF-IOW SERVO (WATERPROOF/4.5kg-crn6.OV)
104106 HPI SF-IOW SERVO CASE SET
105381 HPI TF402AGHz TRANSMIITER (2ch)
105383 HPI RF-40 RECEIVER (2.4GHz]3ch)
105385 HPI TF401 RF40 2_4GHz RADIO
106629 MAIN CHASSIS 25mm (6065/(31-JNBÆTAL)
106630 THREADED PINION 18Tx12mm (1M) (ORANGE)
106631 THREADED PINION 22Tx12mm (1M) (ORANGE)
106632 HEAVY DUTY 1ST GEAR ADAPTER (ORANGE'NITRO 2 SPEED)
SHOCK CAP 12xM13xO.8mm (ORANGEJGROOVED/2pcs)
106633
106634 BALL STUD 4_7x14mm (BLACK,'4pcs)
106635 ARM BRACE SET (ORANGE)
A249 BAI I STUD 3.8x3mm(4pcs)
A280 FLANGE SHAFT SET 3x25mm/3x30mm
A281 FLANGE SHAFT SET 3x36mm/3x42mm
A396 SERVO SAVER SET
DIFF CASE
A471 SHOCK PARTS SET
A540 SHOCK BODY SET (45-56mm,'2pcs)
A556 AXLE 5x32mm (FRONT/2pcs)
A557 AXI F 5x38mm (REARQpcs)
DIFFERENTIAL SHAFT (2pcs)
A558
A559 GEAR SHAFT 5x37mm
A770 HPI SPORT SHOCK SET 45-56mm (2pcs)
A805 PILOT SHAFT M5
FLANGE PIPE 3x4.5x5_5mrn(4pcs)
A838
A875 EXHAUST GASKET (5pcs)
A880 CLUTCH BELL FOR NITRO
A881 CLUTCH HOLDER FOR NITRO
8021 BAI I BEARING 5x10x4mm (2pcs)
8022 BAI I BEARING 5x11x4mm(2pcs)
B030 BALL BEARING 1Ox15x4mm(2pcs)
8085 RAI I BEARING 8x16x5mm (2pcs)
BAI I CUP 4.3x15.5mm (14pcs)
Z125
Z136 BALL STUD 4_3x6.5mm (440/4pcs)
Z150 ANTENNA PIPE SET
Z162 HEAVY WEIGHT GREASE (#IOOOOO/GEAR DIFF)
HEAVY WEIGHT GREASE (#30000/GEAR DIFF)
Z164
Z170 SILICONE SHOCK OIL #300 (1occ)
Z224 WASHER M3x8mm (IOpcs)
038 C CLIP 13mm (4pcs)
E CLIP emm (20pcs)
242
251 SPRING PIN 1.5x8mm (IOpcs)
Z264 PIN 2xIOmm (I Opcs)
282 STEP SCREW M3x14mm (4pcs)
CAP HEAD SCREW M2.6x6mm (12pcs)
Z420
Z422 CAP HEAD SCREW M2.6x10mm (12pcs)
Z423 CAP HEAD SCREW M2.6x12mm (12pcs)
Z509 BUTTON HEAD SCREW M3x30mm (6pcs)
Z517 BINDER HEAD SCREW M3x8mm (IOpcs)
Z526 FLAT HEAD SCREW M3x8mm (6pcs)
Z527 FLAT HEAD SCREW M3x10mm (6pcs)
Z543 CAP HEAD SCREW M3x10mm (6pcs)
TP. FLANGED SCREW M3x10mm (6pcs)
Z561
Z567 TP. BINDER HEAD SCREW M3x10mm (IOpcs)
Z568 TP. BINDER HEAD SCREW M3x12mm (IOpcs)
Z569 TP. BINDER HEAD SCREW M3x15mm (10pcs)
TP. FLAT HEAD SCREW M3x12rm (IOpcs)
Z578
Z581 TP. FLAT HEAD SCREW M3x18rnm (IOpcs)
Z593 SCREW SHAFT 3x27mm (4pcs)
Z599 SCREW SHAFT 3x40mm (4pcs)
Z653 NUT M3 (6pcs)
Z662 LOCK NUT M2 (4pcs)
Z684 FLANGED LOCK NUT
Z694 WASHER M5x10xO.5rnrn (IOpcs)
WASHER 7x12xO.8mm(6pcs)
Z699
Z721 SET SCREW M4x4mrn (4pcs)
Z903 ALLEN WRENCH 2.5mm
Z904 ALLEN WRENCH 2.0mm
CROSS WRENCH (SMALL)
Z950
Z960 TURNBUCKLE WRENCH
48
mero rs••
euo
SET
SET
RS4 2 SPEED
RS4 2 SPEED
(4pcs)
4mrW5.5mm
