Initial Setting Of Gas Valve Assembly - elco VECTRON GL 05.700 DUO PLUS Betriebsanleitung

Start-up
Initial setting
Compact gas valve assembly
MBVEF default setting data
V ratio : 1,5
Zero value N : 0
Gas valve
opening indicator
D value
R ratio
indicator
indicator"

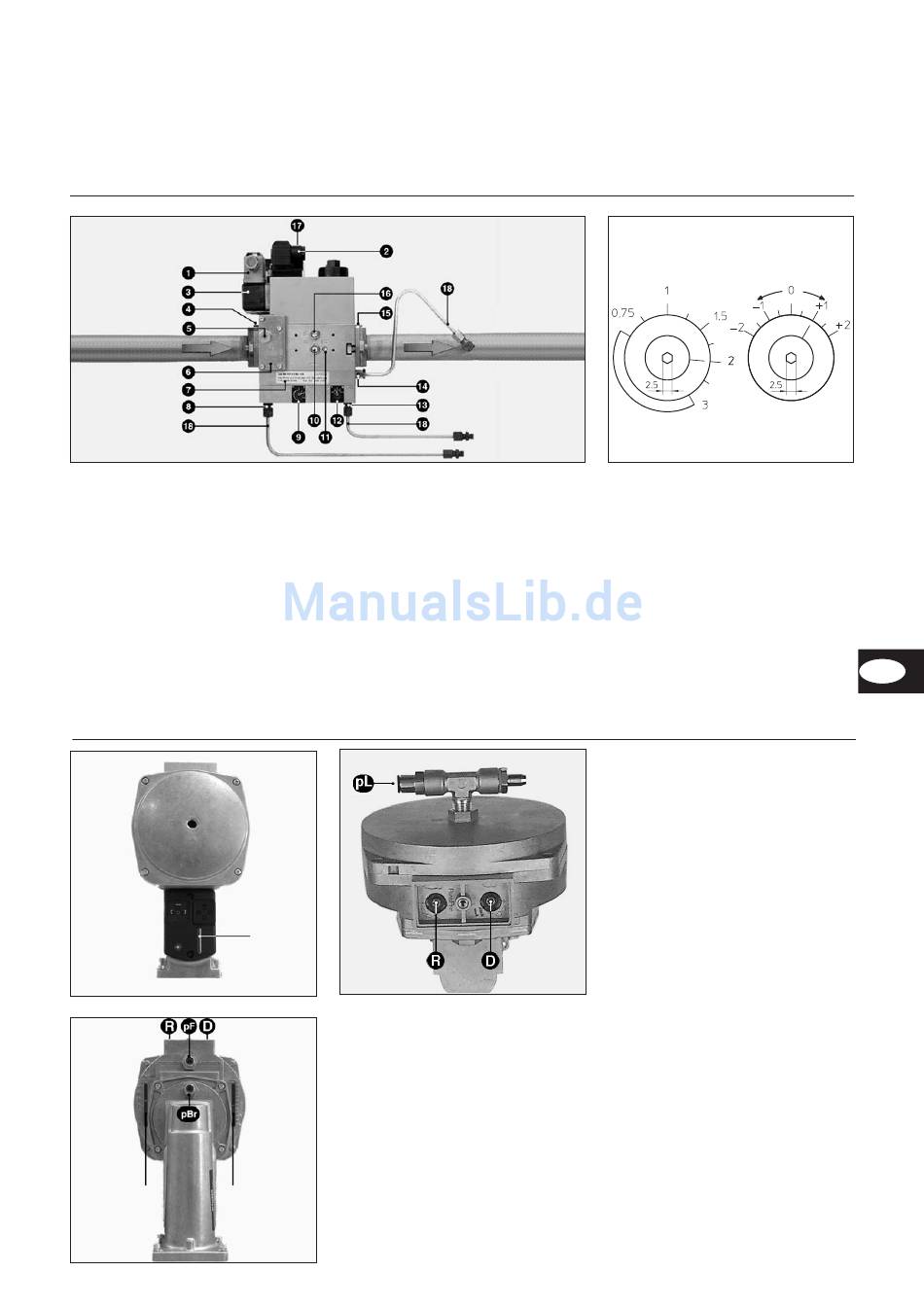

MBVEF gas valve assembly
1 Electrical connection for gas
pressure switch (DIN 43650)
2 Electrical connection for magnetic
valves (DIN 43650)
3 Gas pressure switch
4 Input flange
5 Pressure measuring nipple R 1/8,
ahead of filter (both sides)
6 Filter (under cover)
7 Type plate
8 Connection for air pressure pipe
pL, R 1/8
9 Setting screw for V ratio
10 Pressure measuring nipple pe,
ahead of valve 1, both sides
SKP 75 default setting data
R ratio : +1,3
(setting range 0.4 to 9)
D ratio : +1
(setting range -5 to +5)
06/2006 - Art. Nr. 13 018 106B
V
11 Gas pressure measuring nipple M4
after valve 2
12 Setting screw for zero excess air
value N
13 Connection for furnace pressure
pipe pF, R 1/8
14 Connection for gas pressure pipe
pG, R 1/8
15 Output flange
16 Pressure measuring nipple pa after
valve 1, both sides
17 Valve V1 and V2 operation
indicator (option)
18 Pressure release pipes
SKP gas valve
pBr (pG)= gas pressure release pipe
pF = furnace pressure release pipe
pL = air pressure release pipe
D = setting screw (excess air)
R = setting screw (air/gas ratio)
N
