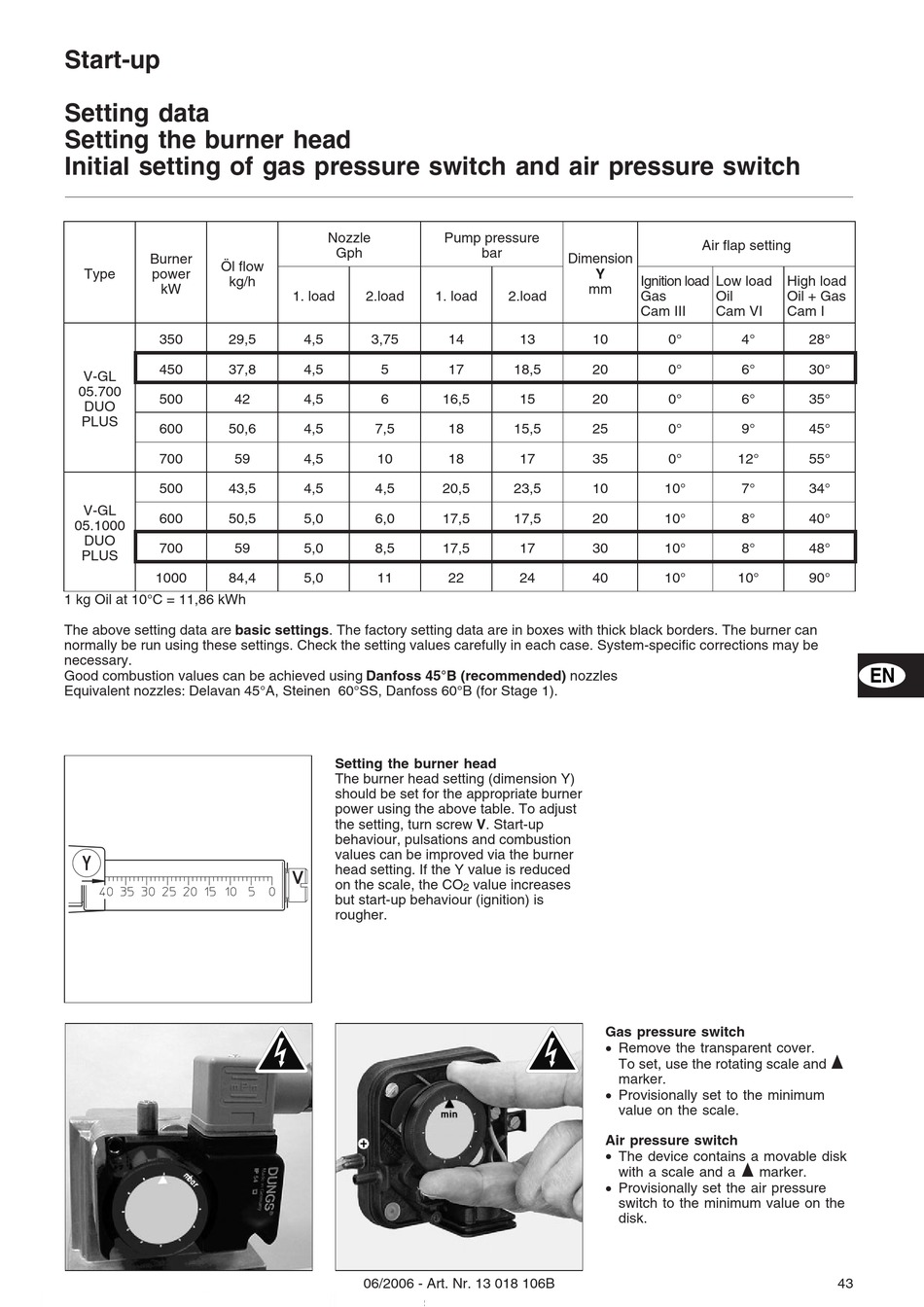

Start-up

Setting data
Setting the burner head
Initial setting of gas pressure switch and air pressure switch
Burner
Öl flow
Type power
kg/h
kW
350 29,5
450 37,8
V-GL
05.700
500 42
DUO
PLUS
600 50,6
700 59
500 43,5
V-GL
600 50,5
05.1000
DUO
700 59
PLUS
1000 84,4
1 kg Oil at 10°C = 11,86 kWh
The above setting data are basic settings. The factory setting data are in boxes with thick black borders. The burner can
normally be run using these settings. Check the setting values carefully in each case. System-specific corrections may be
necessary.
Good combustion values can be achieved using Danfoss 45°B (recommended) nozzles
Equivalent nozzles: Delavan 45°A, Steinen 60°SS, Danfoss 60°B (for Stage 1).
Nozzle Pump pressure
Gph
1. load 2.load 1. load
4,5 3,75 14
4,5 5 17
4,5 6 16,5
4,5 7,5 18
4,5 10 18
4,5 4,5 20,5
5,0 6,0 17,5
5,0 8,5 17,5
5,0 11 22
Setting the burner head
The burner head setting (dimension Y)
should be set for the appropriate burner
power using the above table. To adjust
the setting, turn screw V. Start-up
behaviour, pulsations and combustion
values can be improved via the burner
head setting. If the Y value is reduced
on the scale, the CO
2
but start-up behaviour (ignition) is
rougher.
06/2006 - Art. Nr. 13 018 106B
bar
Dimension
Y
Ignition load
mm
2.load Gas
Cam III
13 10
18,5 20
15 20
15,5 25
17 35
23,5 10
17,5 20
17 30
24 40
value increases
Gas pressure switch
· Remove the transparent cover.
To set, use the rotating scale and x
marker.
· Provisionally set to the minimum
value on the scale.
Air pressure switch
· The device contains a movable disk
with a scale and a x marker.
· Provisionally set the air pressure
switch to the minimum value on the
disk.
Air flap setting
Low load High load
Oil Oil + Gas
Cam VI Cam I
0° 4° 28°
0° 6° 30°
0° 6° 35°
0° 9° 45°
0° 12° 55°
10° 7° 34°
10° 8° 40°
10° 8° 48°
10° 10° 90°
