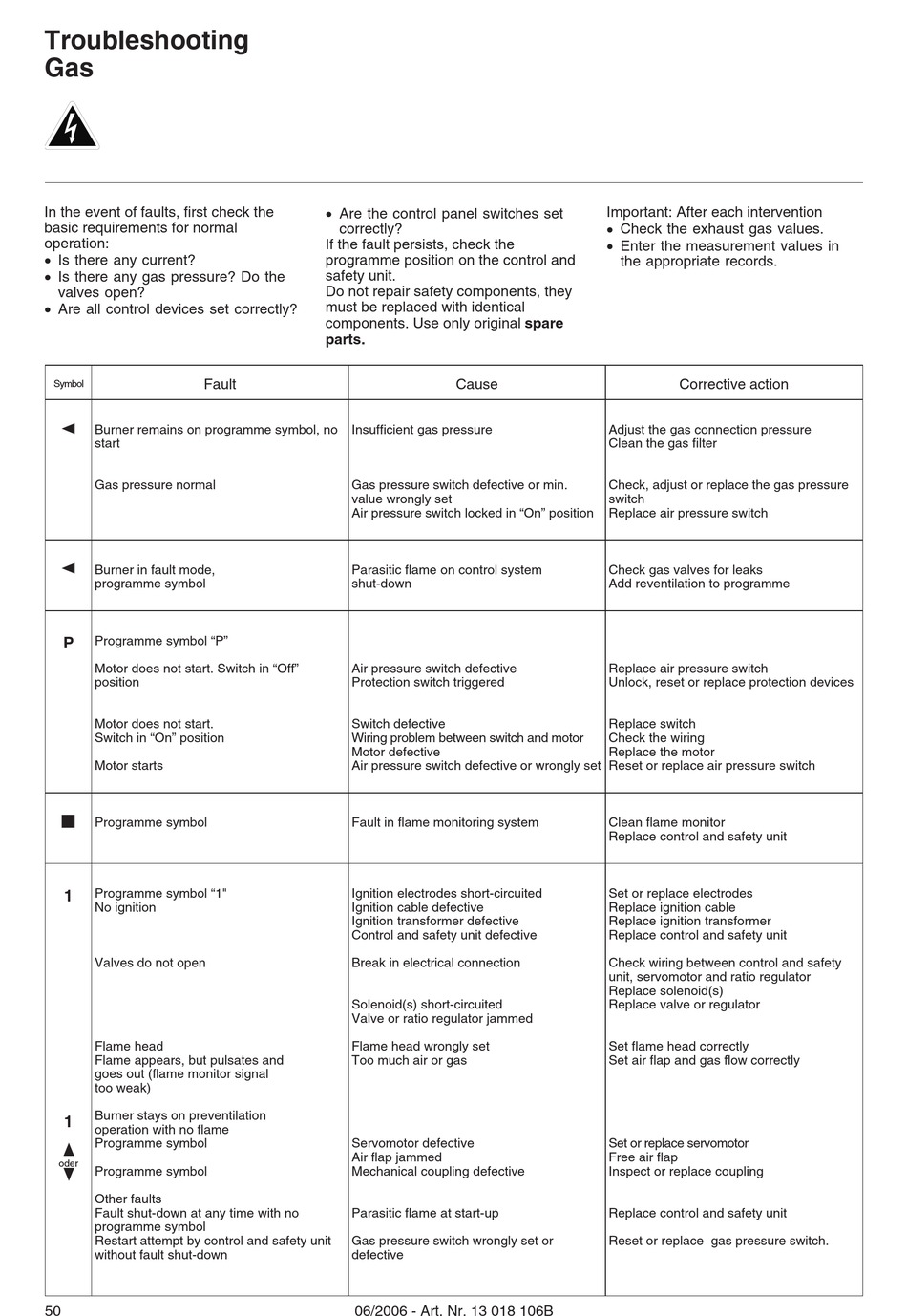

Troubleshooting

Gas
In the event of faults, first check the
basic requirements for normal
operation:
· Is there any current?
· Is there any gas pressure? Do the
valves open?
· Are all control devices set correctly?
Fault
Symbol
w
Burner remains on programme symbol, no
start
Gas pressure normal
w
Burner in fault mode,
programme symbol
Programme symbol "P"
P
Motor does not start. Switch in "Off"
position
Motor does not start.
Switch in "On" position
Motor starts
z
Programme symbol
Programme symbol "1"
1
No ignition
Valves do not open
Flame head
Flame appears, but pulsates and
goes out (flame monitor signal
too weak)
Burner stays on preventilation
1
operation with no flame
Programme symbol
x
oder
Programme symbol
v
Other faults
Fault shut-down at any time with no
programme symbol
Restart attempt by control and safety unit
without fault shut-down
50
· Are the control panel switches set
correctly?
If the fault persists, check the
programme position on the control and
safety unit.
Do not repair safety components, they
must be replaced with identical
components. Use only original spare
parts.
Cause
Insufficient gas pressure
Gas pressure switch defective or min.
value wrongly set
Air pressure switch locked in "On" position
Parasitic flame on control system
shut-down
Air pressure switch defective
Protection switch triggered
Switch defective
Wiring problem between switch and motor
Motor defective
Air pressure switch defective or wrongly set
Fault in flame monitoring system
Ignition electrodes short-circuited
Ignition cable defective
Ignition transformer defective
Control and safety unit defective
Break in electrical connection
Solenoid(s) short-circuited
Valve or ratio regulator jammed
Flame head wrongly set
Too much air or gas
Servomotor defective
Air flap jammed
Mechanical coupling defective
Parasitic flame at start-up
Gas pressure switch wrongly set or
defective
06/2006 - Art. Nr. 13 018 106B
Important: After each intervention
· Check the exhaust gas values.
· Enter the measurement values in
the appropriate records.
Corrective action
Adjust the gas connection pressure
Clean the gas filter
Check, adjust or replace the gas pressure
switch
Replace air pressure switch
Check gas valves for leaks
Add reventilation to programme
Replace air pressure switch
Unlock, reset or replace protection devices
Replace switch
Check the wiring
Replace the motor
Reset or replace air pressure switch
Clean flame monitor
Replace control and safety unit
Set or replace electrodes
Replace ignition cable
Replace ignition transformer
Replace control and safety unit
Check wiring between control and safety
unit, servomotor and ratio regulator
Replace solenoid(s)
Replace valve or regulator
Set flame head correctly
Set air flap and gas flow correctly
Set or replace servomotor
Free air flap
Inspect or replace coupling
Replace control and safety unit
Reset or replace gas pressure switch.
