Overview

Burner description

Burner description
The burners VECTRON GL 05.700
DUO PLUS and VECTRON GL
05.1000 DUO PLUS are two-stage
burners for oil and two-stage phased /
modulating burners for gas, of
monobloc construction. They can be
fitted to all heat generators complying
with DIN 4702 in their power range.
28
Scope of delivery
The burner is delivered on a pallet,
packed in three boxes:
Burner housing with operating
–
instructions, circuit diagram, spare
parts list, boiler-house plate and
transparent cover/stopper
Burner head with flange seal and
–
securing screws
Gas valve assembly module
–
06/2006 - Art. Nr. 13 018 106B
Optional accessories:
leakage test device VPS504
–
manometer
–
compensator
–
test burner
–
separate air intake box
–
suction intake noise absorber
–
oil/gas running time meter
–
RWF 40 universal regulator
–
potentiometer on servomotor
–
air pressure switch with test button
–
oil volume meter
–

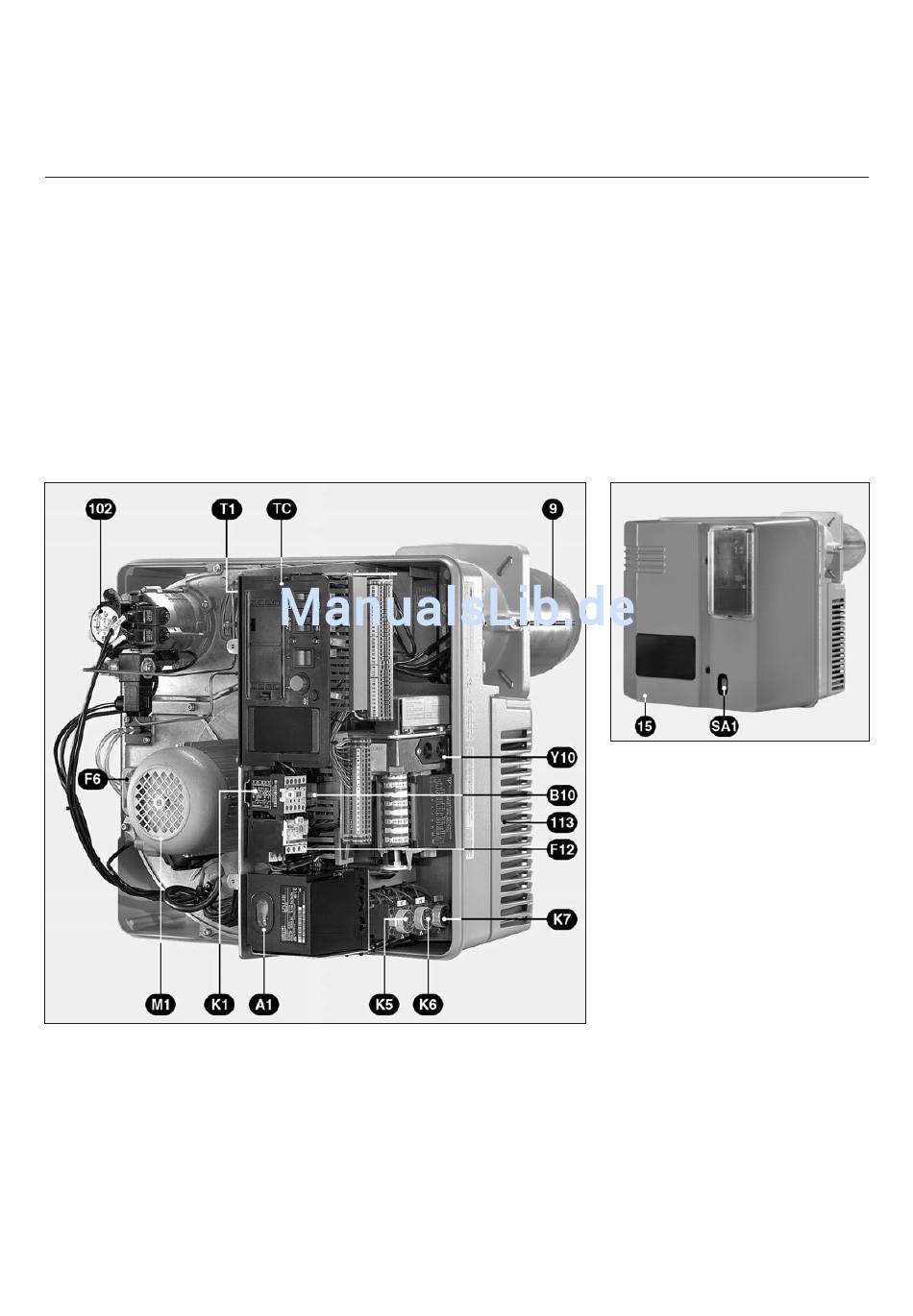

A1 control and safety unit
B10 measure point [µA DC]
F6 air pressure switch
F12 motor protection relay
K1 motor protection
K5-K6-K7 time delay switches
M1 blower motor
SA1 On the control unit, display of:
- the programm,
- the faults: red control lamp
lights up, and push button to
release the fault.
TC control panel TC
T1 ignition transformer
Y10 servomotor
9 blast tube
15 cover
102 motor/pump
113 air box
