Overview
MBVEF compact gas valve assembly
SKP 75 regulator

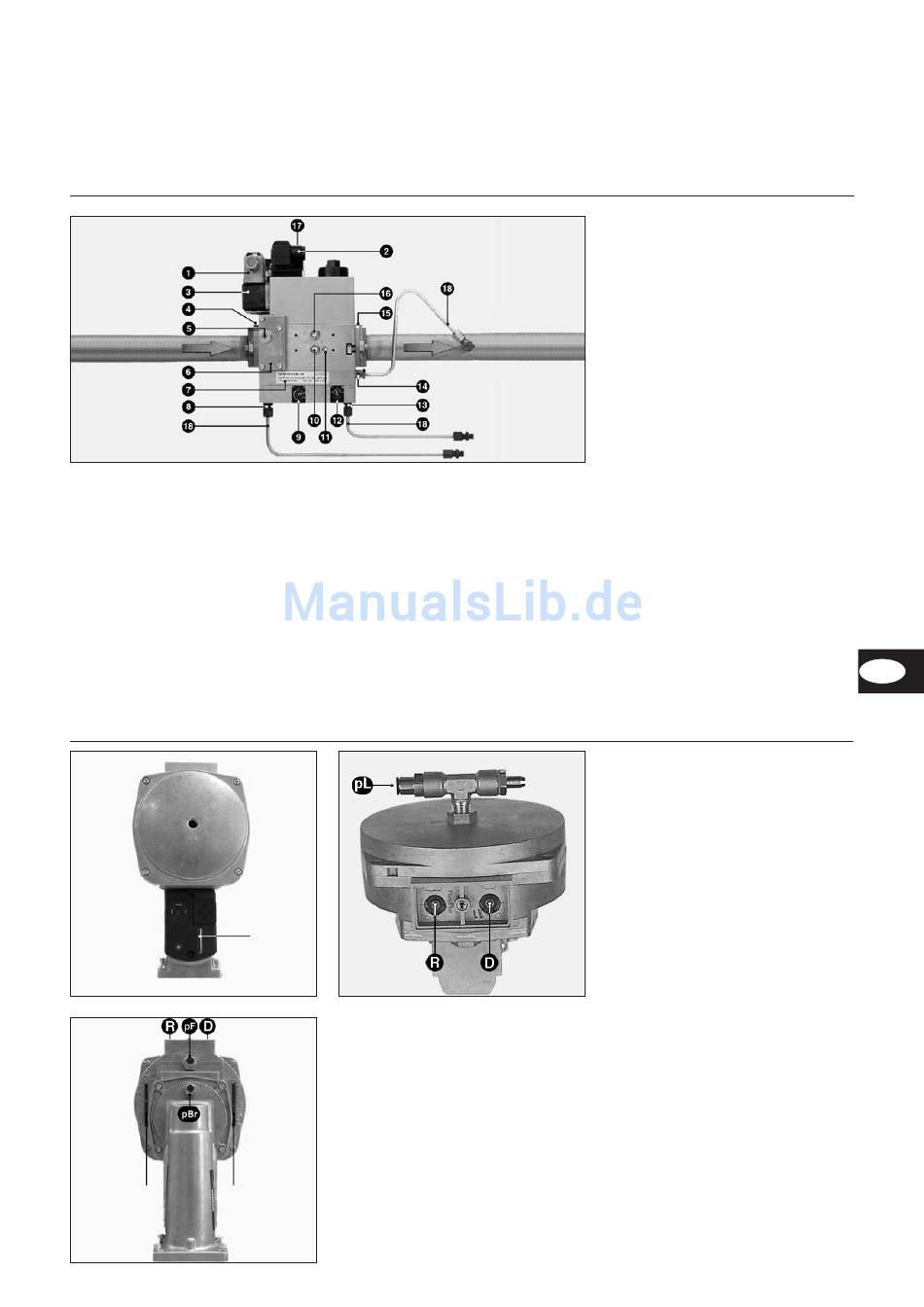

The MBVEF compact gas valve
assembly is a combination of filter, gas
/ air regulator, valves and pressure
switches:
fine 0.8 mm mesh filter
–
GWA2 pressure switch
–
servo pressure regulator unit with
–
adjustable V ratio, correction of zero
value N and furnace pressure
connection
V1 and V2 fast-opening and closing
–
magnetic valves
Input pressure pe: 20-100 mbar
Voltage, frequency: 230 V, 50-60 Hz.
Gas valve
opening indicator
Indicator for
Indicator for
setting "R" ratio "
setting D value
The SKP regulator combined with a
VGG/F valve provides a constant
gas/air ratio with adjustable V ratio,
correction of zero value N and furnace
pressure connection.
Voltage, frequency: 230 V/ 50-60 Hz
06/2006 - Art. Nr. 13 018 106B
1 Electrical connection for gas
pressure switch (DIN 43650)
2 Electrical connection for magnetic
valves (DIN 43650)
3 Gas pressure switch
4 Input flange
5 Pressure measuring nipple R 1/8
ahead of filter (both sides)
6 Filter (under cover)
7 Type plate
8 Connection for air pressure pipe
pL, R 1/8
9 Setting screw for V ratio
10 Pressure measuring nipple pe,
ahead of valve 1, both sides
11 Gas pressure measuring nipple M4
after valve 2
12 Setting screw for zero value N
13 Connection for furnace pressure
take-off pipe pF, R 1/8
14 Connection for gas pressure
take-off pipe pG, R 1/8
15 Output flange
16 Pressure measuring nipple pa after
valve 1, both sides
17 V1 and V2 valve operation indicator
18 Pressure release pipes
pBr (pG)= gas pressure release pipe
pF = furnace pressure release pipe
pL = air pressure release pipe
D = setting screw (excess air)
R = setting screw (air/gas ratio)
