Overview

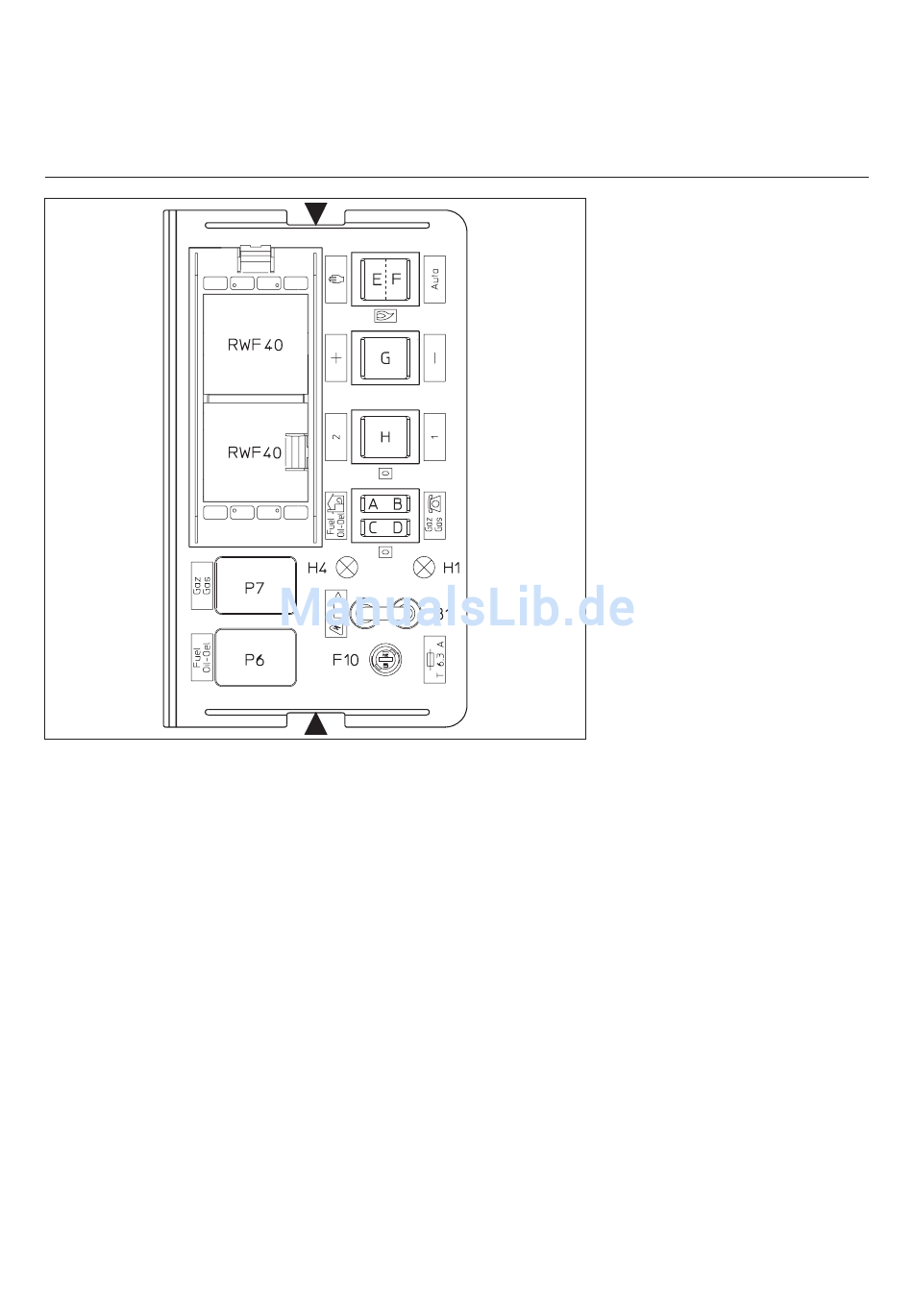

Control panel
Control panel
All control elements are visible
externally. A removable transparent
cover clipped to the burner cover gives
access to the monitoring and control
elements for setting and operating the
burner.
The control panel also contains a
bridge for measuring the flame signal,
two green diodes indicating the fuel
used and the switching circuit cut-out.
36
To remove the cover, press in one or
both sides gently and pull out at the
same time.
To replace the cover, locate the two
clips at the appropriate openings and
push in.
Option:
oil and gas running time meters
–
(connection cables already wired
up)
RWF 40 three-point regulator fitted
–
at standardized position
06/2006 - Art. Nr. 13 018 106B
Purpose of switches
A
on site fuel selection via switch
C/D.
B
fuel selection by remote control.
C
Fuel-oil
D
Gas
E
manual operation.
F
automatic operation.
G
+ increases gas power manually.
- decreases gas power manually.
H
1 oil low load switch (manual).
2 oil high load switch (manual).
F10
cut-out
B1
ionization bridge
H1
indicator light for gas operation
(green)
H4
indicator light for fuel-oil
operation (green)
Option :
RWF40
Standardized position for
three-point regulator
P6
running time meter - gas
P7
running time meter - fuel-oil
