Initial start-up

Configuration data
Air adjustment
Burner power
kW
Burner
1 stage 2 stage
170 251
P3.430 L
192 291
(SV)
186 329
189 291
P3.550 L
219 384
(SV)
254 471
Bold : Delivery setting; 1kg fuel-oil at 10°C = 11.86kWh
The above adjustments are basic
adjustments. With these settings,
normally, the burner can be started up.
The adjustment must then be verified
using a combustion analyser.
B
2
B
D E T A L I 2
A
Nozzle
Fuel-oil flow
60°S
kg/h
Gph(Danfoss)
1 stage 2 stage 1 stage
14,4 21,2 3,50
16,2 24,5 4,00
15,7 27,7 4,00
16,0 24,5 4,00
18,5 32,3 4,50
21,4 39,7 5,00
It may be necessary to perform
corrections subject to the single plant.
Favourable combustion values can be
obtained using the
following nozzles:
1
VERSION AB
09/2014 - Art. Nr. 4200 1058 9900
Pump pressure
bar
2 stage 1 stage 2 stage
3,50 + 1,50 12,0 12,0
4,00 + 2,00 12,0 12,0
4,00 + 3,00 11,4 11,2
4,00 + 2,00 12,0 12,0
4,50 + 3,50 12,0 12,0
5,00 + 4,50 14,0 14,0

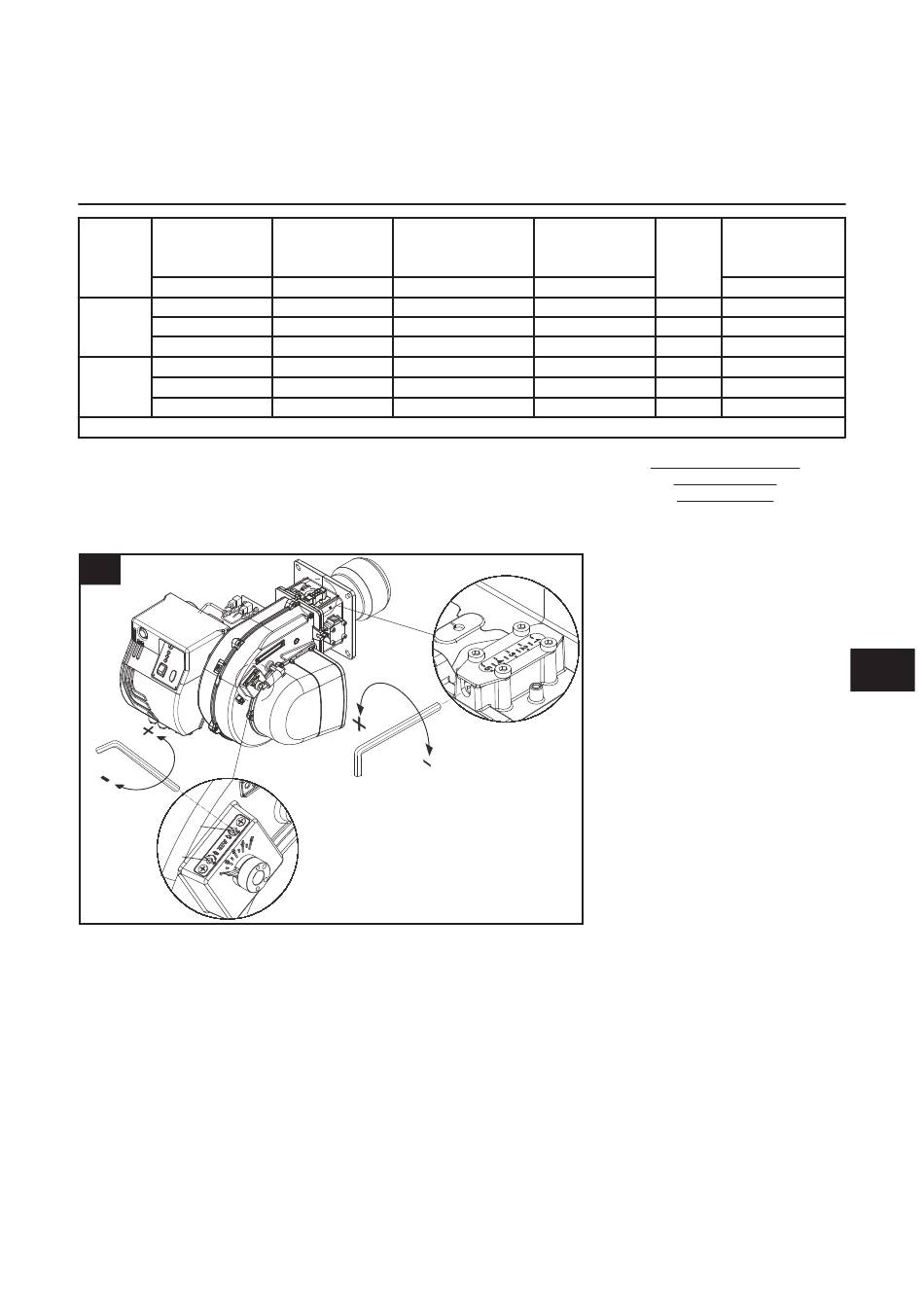

Firing head setting (B).
To act on the screw in figure (1):
• turn Allen key till you reach the
requested value (index 1-5).
Adjusting LOW air flow (2).
To act on the screw A in figure:
• To increase output, turn screw
counterclockwise.
• To reduce output, turn screw
clockwise.
Adjusting HI air flow (2).
D E T A L I 1
To act on the screw B in figure:
• To increase output,turn screw
clockwise.
• To reduce output,turn screw
counterclockwise.
Firing
Air flap position
head
setting
mm
1 stage 2 stage
1,0 1,6 2,0
2,0 1,6 3,1
2,5 1,7 4,0
1,5 1,7 2,0
2,0 1,5 3,5
3,5 1,7 5,0
DANFOSS H÷S 80°÷60°
DELAVAN W 60°
STEINEN S 60°
