AIR SAG SETTING
To achieve the best performance from your FOX suspension, adjust the air pressure to attain your proper sag setting. Sag is
the amount your suspension compresses under your weight and riding gear. Sag range should be set to 25–30% of total shock
travel.
Watch the sag setup video at ridefox.com/sagsetup, or use the instructions below.
1. Turn the Live Valve rear shock controller OFF before setting sag. This sets the shock to the Open position, which is required
for an accurate sag measurement.
2. Turn the compression adjuster fully counter-clockwise.
3. Start by setting the shock air pressure (psi) to match your weight in pounds. With the air pump attached to the shock valve,
slowly cycle your shock through 25% of its travel 10 times as you reach your desired pressure. This will equalize the positive
and negative air chambers and will change the pressure on the pump gauge.
Do not exceed maximum air pressure: FLOAT X Live Valve NEO air shocks have a maximum air pressure of 350 psi.
4. Remove the pump.
5. Sit still on the bike in your normal riding position, using a wall or a tree for support.
6. Pull the sag indicator o-ring up against the rubber air sleeve seal.
7. Carefully dismount the bike without bouncing.
8. Measure the distance between the sag indicator o-ring and the rubber air sleeve seal. Compare your measurement to the
'Suggested Sag Measurements' table.
9. Add or remove air pressure until you reach your desired sag measurement.
COIL SAG SETTING
1. Measure the eye-to-eye distance on your bike's shock mounts.
2. With the help of a friend, sit on the bike in your normal riding position with your normal riding gear and measure eye-to-eye
distance again. The difference between the two measurements is sag.
3. There are nine detent clicks per revolution of the preload adjuster. After installing the
coil spring, set the preload adjuster to where it just contacts the coil spring, then turn
it clockwise a minimum of 8 clicks.
4. To increase sag, turn the preload adjuster
counter-clockwise. If you cannot achieve 30%
sag with the minimum of 8 clicks of preload,
you will need to obtain a lower rate spring.
5. To decrease sag, turn the preload adjuster
clockwise no more than 26 clicks after setting
the preload adjuster to where is just contacts
the coil spring. If you cannot achieve 30% with
the maximum of 26 clicks of preload, you will
need to obtain a higher rate spring.
Suggested Sag Measurements
Travel 25% sag (Firm)
45mm/1.77in 11.25mm/0.44in
55mm/2.16in 13.75mm/0.54in
65mm/2.56in 16.25mm/0.64in
75mm/2.95in 18.75mm/0.74in
WARNING
30% sag (Plush)
13.5mm/0.53in
16.5mm/0.65in
19.5mm/0.77in
22.5mm/0.88in
25-30%
12

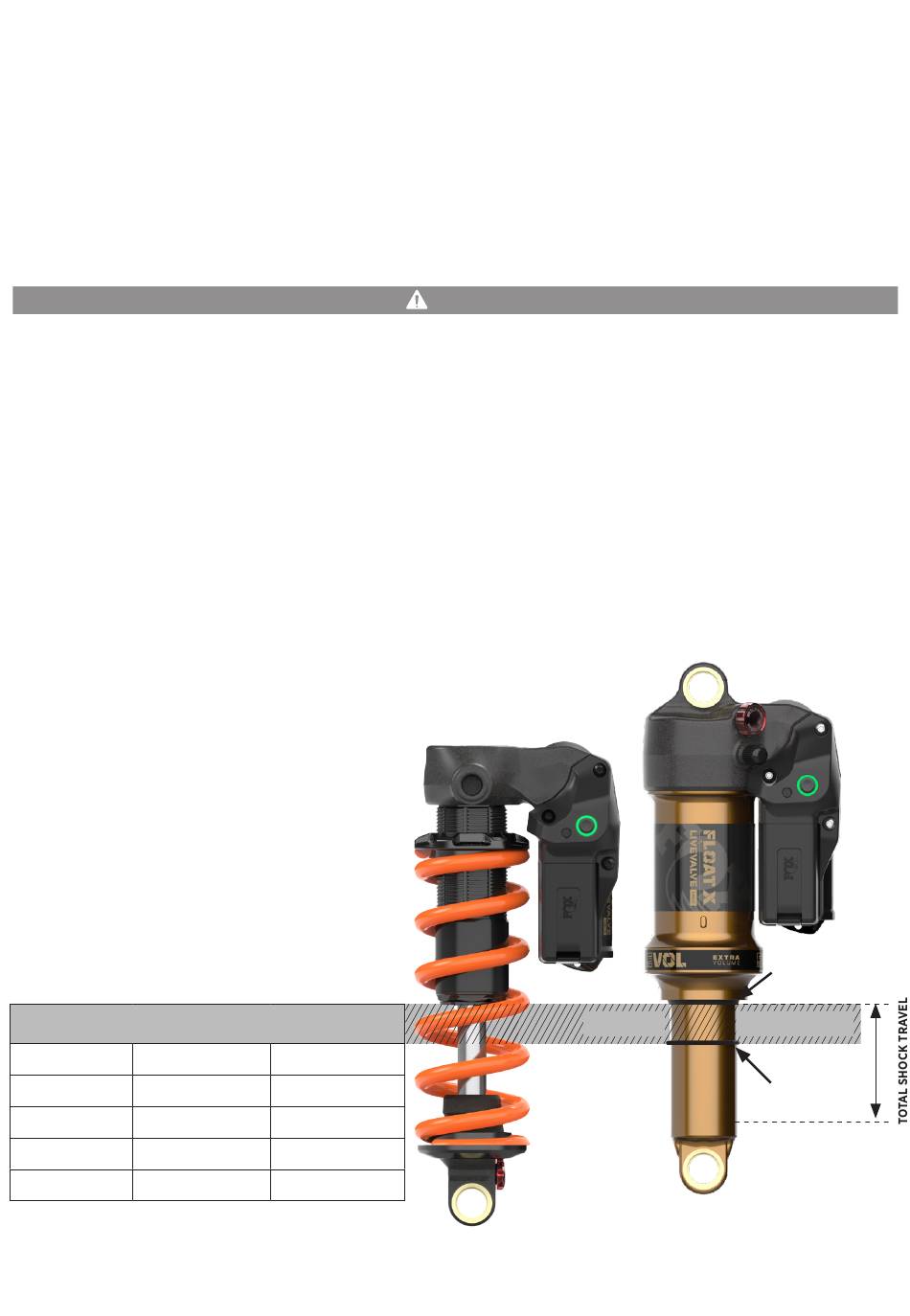

RUBBER AIR
SLEEVE SEAL
SAG RANGE
INDICATOR
O-RING
