16 INDOOR UNIT INSTALLATION
D A N G E R
• Do not install the indoor unit in a flammable environment
to avoid fire or an explosion.
• Do not put any foreign material into the indoor unit and
check to ensure that none exists in the indoor unit before
the installation and the test run. Otherwise, a fire or failu-
re, etc. may occur.
• Check to ensure that the wall is strong enough. If not
strong enough, the indoor unit may fall down on you.
• Do not install the indoor unit outdoors. If installed outdo-
ors, an electric hazard or electric leakage will occur.

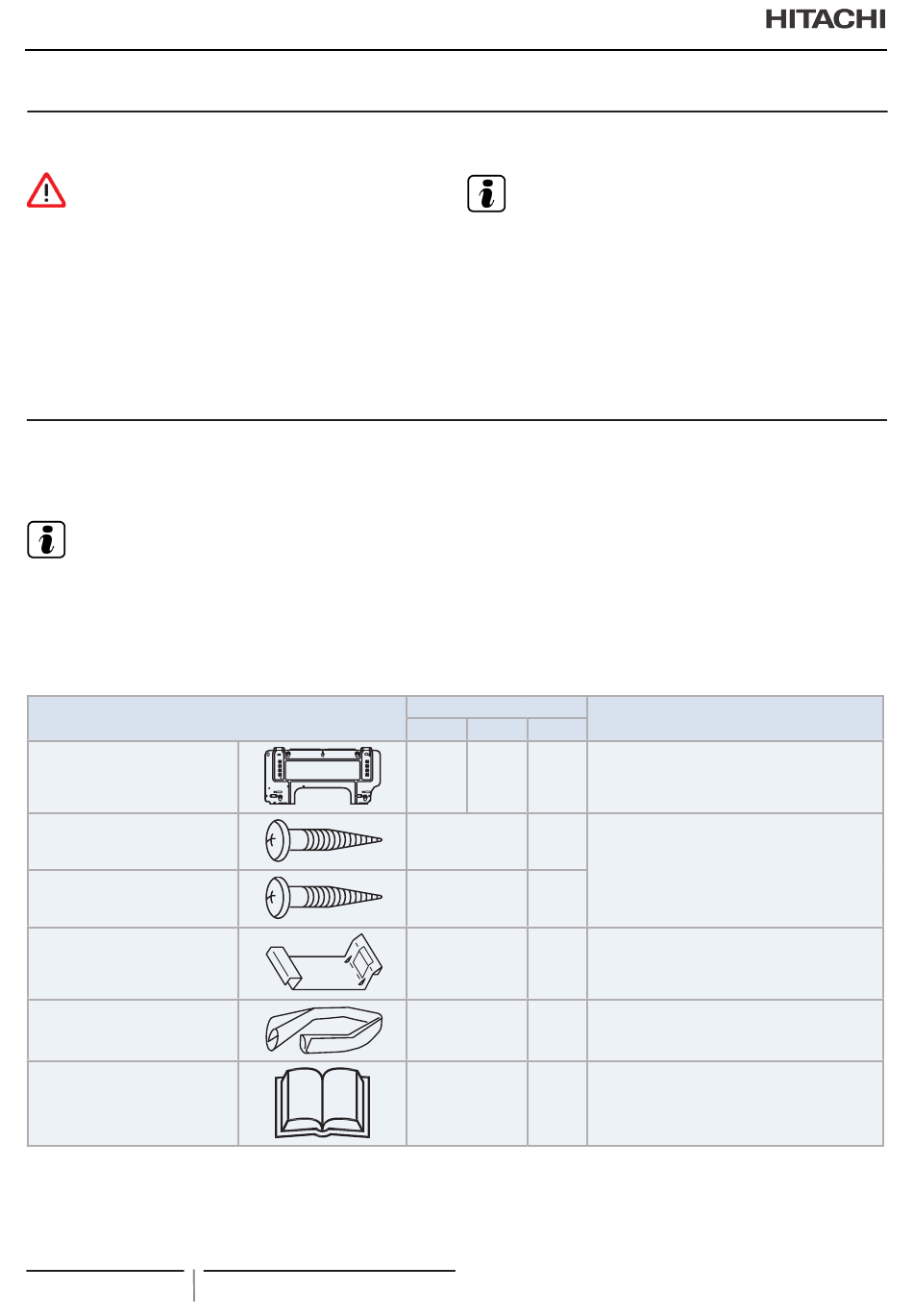

16.1 FACTORY-SUPPLIED ACCESSORIES
Check to ensure that the following accessories are packed with
the indoor unit.
N O T E
If any of these accessories are not packed with the unit, please
contact your contractor.
The remote control switch, the branch pipes and the transition
wires are optional accessories which are not included with the
indoor unit.
Accessory
Suspension bracket
Ø
Screw ( 4 x 25L)
Ø
Screw ( 4 x 40L)
Fixing plate
Thermal Insulation pipe
Installation and operation manual
20 PMML0292A rev.2 - 09/2015 - P5416572
N O T E
The expansion valve kit (option) is required for the "indoor unit
wall type without expansion valve" installation.
Pay attention to the followings when the wireless remote control
switch (PC-LH3B) is used.
• For twin, triple and quad combination for individual operation
with the wireless remote control switch, the optional receiver
kit is required. (This operation is NOT available with the wire-
less remote control switch if the built-in receiver is only used.)
• For twin, triple and quad combination for simultaneous opera-
tion, the wired remote control switch shall be used. When the
wireless remote control switch is used, the optional receiver
kit (PC-ALHZF) is required.
Q'ty
0.6-1.0 1.5 2.0-4.0
1 1 1
6 8
2 4
- 1
1 1
1 1
Purpose
For mounting indoor unit
For fixing suspension bracket
For fixing piping
For insulating refrigerant piping
-
