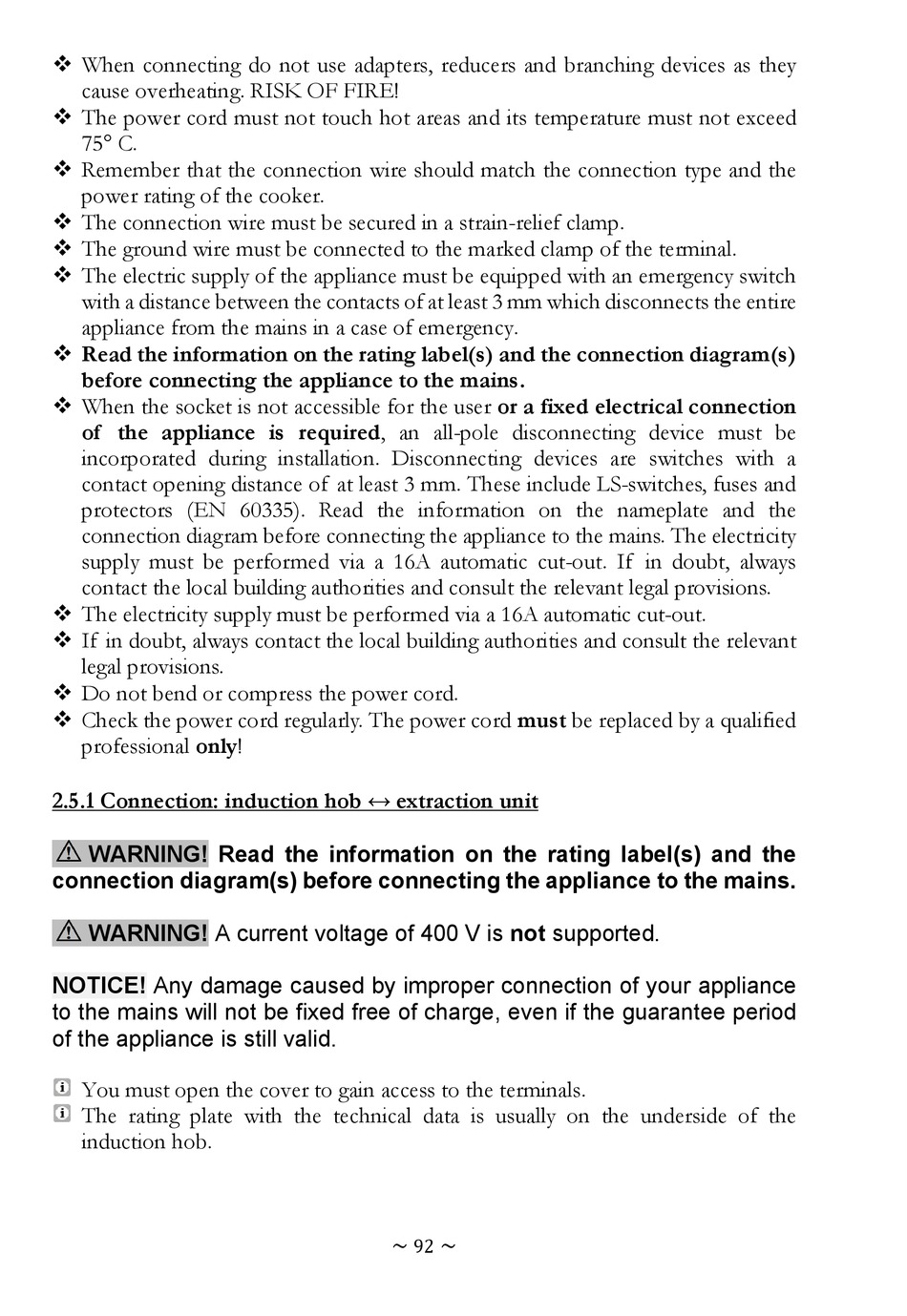

 When connecting do not use adapters, reducers and branching devices as they
cause overheating. RISK OF FIRE!
 The power cord must not touch hot areas and its temperature must not exceed
75° C.
 Remember that the connection wire should match the connection type and the
power rating of the cooker.
 The connection wire must be secured in a strain-relief clamp.
 The ground wire must be connected to the marked clamp of the terminal.
 The electric supply of the appliance must be equipped with an emergency switch
with a distance between the contacts of at least 3 mm which disconnects the entire
appliance from the mains in a case of emergency.
 Read the information on the rating label(s) and the connection diagram(s)
before connecting the appliance to the mains.
 When the socket is not accessible for the user or a fixed electrical connection
of the appliance is required, an all-pole disconnecting device must be
incorporated during installation. Disconnecting devices are switches with a
contact opening distance of at least 3 mm. These include LS-switches, fuses and
protectors (EN 60335). Read the information on the nameplate and the
connection diagram before connecting the appliance to the mains. The electricity
supply must be performed via a 16A automatic cut-out. If in doubt, always
contact the local building authorities and consult the relevant legal provisions.
 The electricity supply must be performed via a 16A automatic cut-out.
 If in doubt, always contact the local building authorities and consult the relevant
legal provisions.
 Do not bend or compress the power cord.
 Check the power cord regularly. The power cord must be replaced by a qualified
professional only!
2.5.1 Connection: induction hob ↔ extraction unit
WARNING! Read the information on the rating label(s) and the
connection diagram(s) before connecting the appliance to the mains.
WARNING! A current voltage of 400 V is not supported.
NOTICE! Any damage caused by improper connection of your appliance
to the mains will not be fixed free of charge, even if the guarantee period
of the appliance is still valid.
You must open the cover to gain access to the terminals.
The rating plate with the technical data is usually on the underside of the
induction hob.
~ ~
