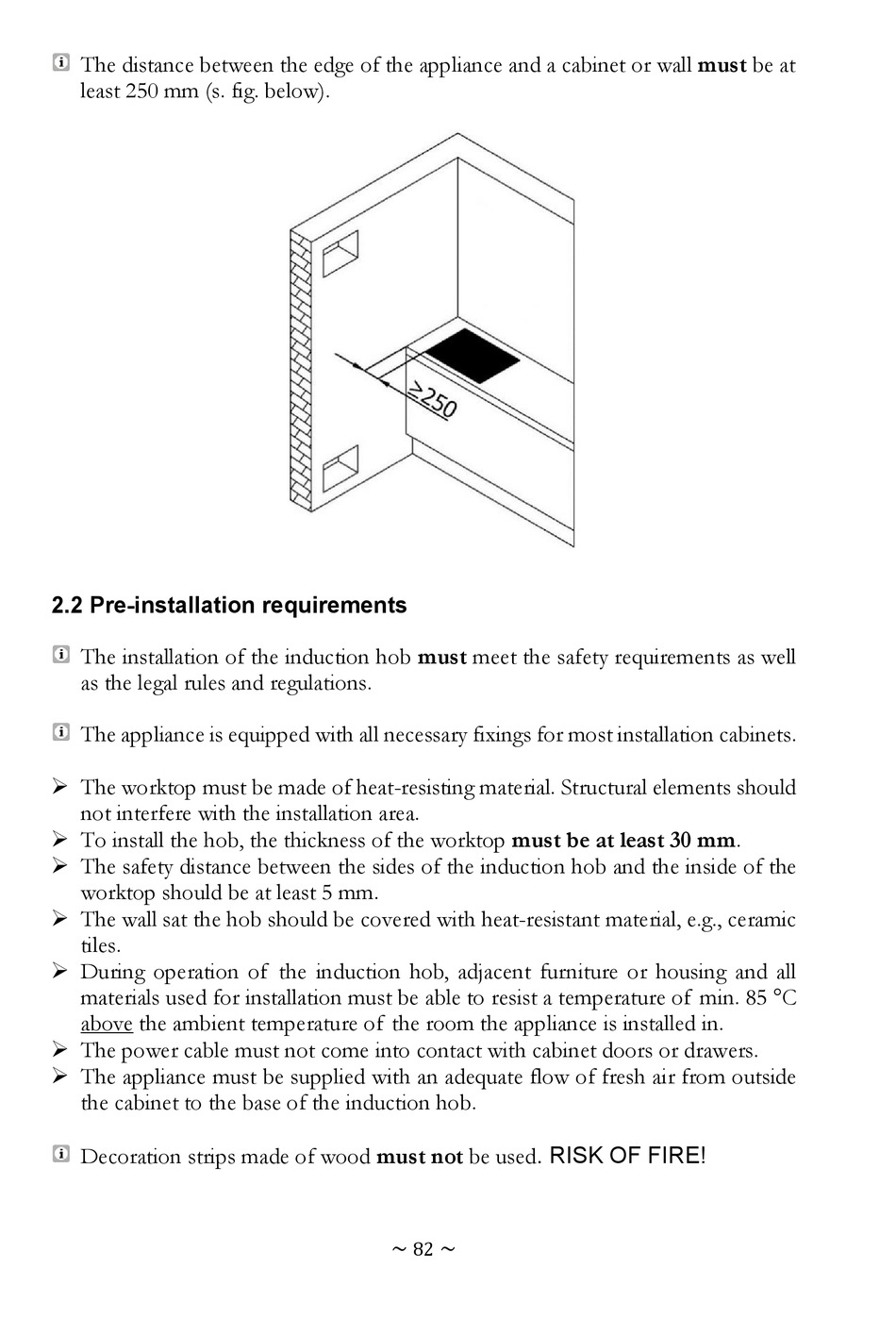

The distance between the edge of the appliance and a cabinet or wall must be at
least 250 mm (s. fig. below).

2.2 Pre-installation requirements

The installation of the induction hob must meet the safety requirements as well
as the legal rules and regulations.
The appliance is equipped with all necessary fixings for most installation cabinets.
 The worktop must be made of heat-resisting material. Structural elements should
not interfere with the installation area.
 To install the hob, the thickness of the worktop must be at least 30 mm.
 The safety distance between the sides of the induction hob and the inside of the
worktop should be at least 5 mm.
 The wall sat the hob should be covered with heat-resistant material, e.g., ceramic
tiles.
 During operation of the induction hob, adjacent furniture or housing and all
materials used for installation must be able to resist a temperature of min. 85 °C
above the ambient temperature of the room the appliance is installed in.
 The power cable must not come into contact with cabinet doors or drawers.
 The appliance must be supplied with an adequate flow of fresh air from outside
the cabinet to the base of the induction hob.
Decoration strips made of wood must not be used. RISK OF FIRE!
~ ~
