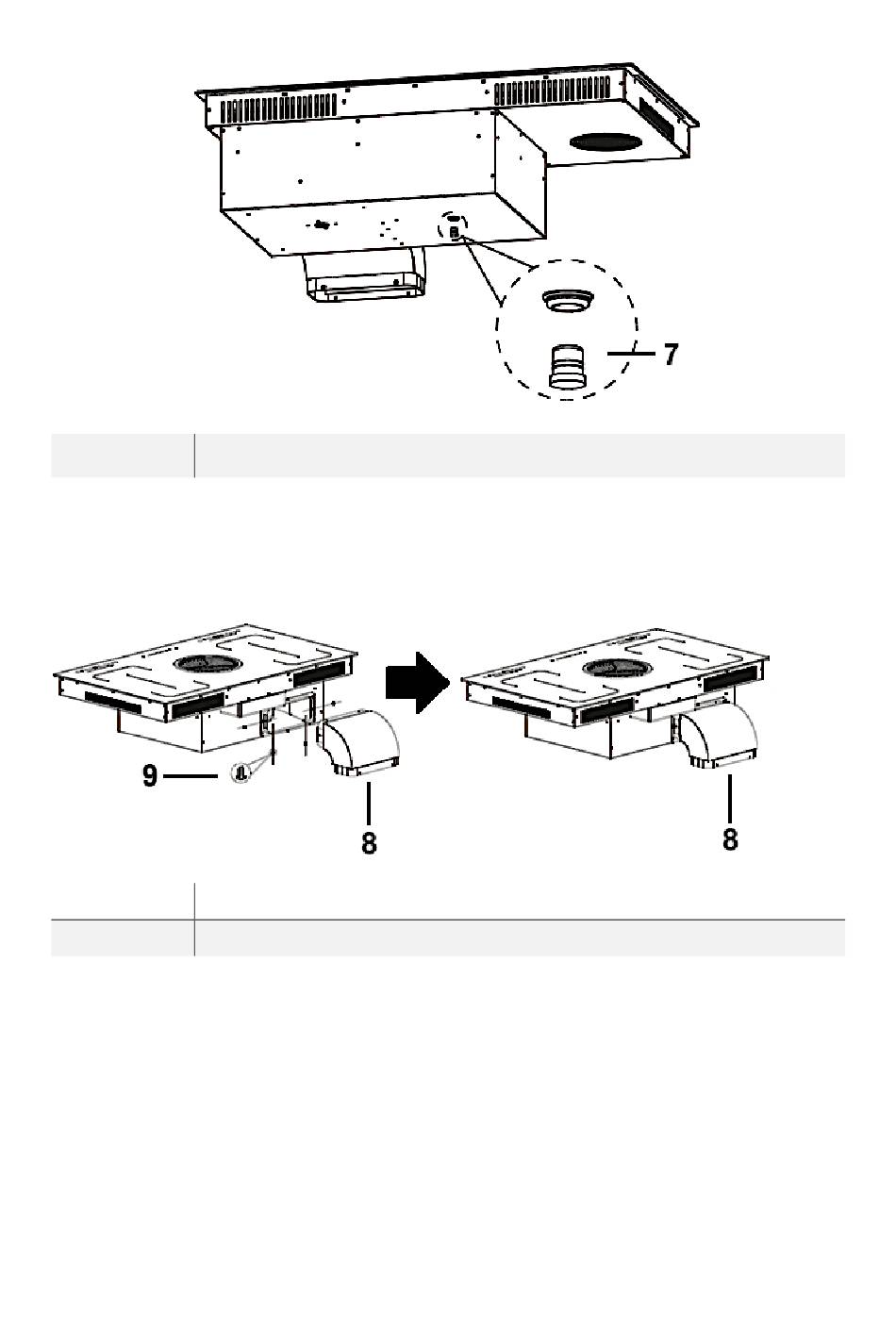

3. Install the curved support tube (8) with the 4 corresponding screws (9 / M4*8)
on the housing of the induction hob (s. fig. below).
8
9
4. Install the air outlet (10) in the prepared opening of the built-in furniture and fix
it properly using the appropriate screws (ST3. 5*10). S. fig. below.
5. Install the carbon filter (11) and the carbon filter cover (12) on the outside of the
air outlet (10 / s. also fig. above / « O
FAN FOR USE IN RECIRCULATION MODE
6. Connect the plastic tube (13) to the installed air outlet (10) using the
corresponding screws (17 / ST3. 5*10 / s. fig. below). Then connect the curved
support tube (8 a) to the plastic tube (13) using the corresponding screws (17 /
ST3. 5*10 / s. fig. below).
W
ATERPROOF COVER
C
URVED SUPPORT TUBE
S M4*8 (4 in total)
CREWS
:
VERVIEW INDUCTION HOB AND EXTRACTOR
»).
~ ~
88
/
PLUG
(90°) *
