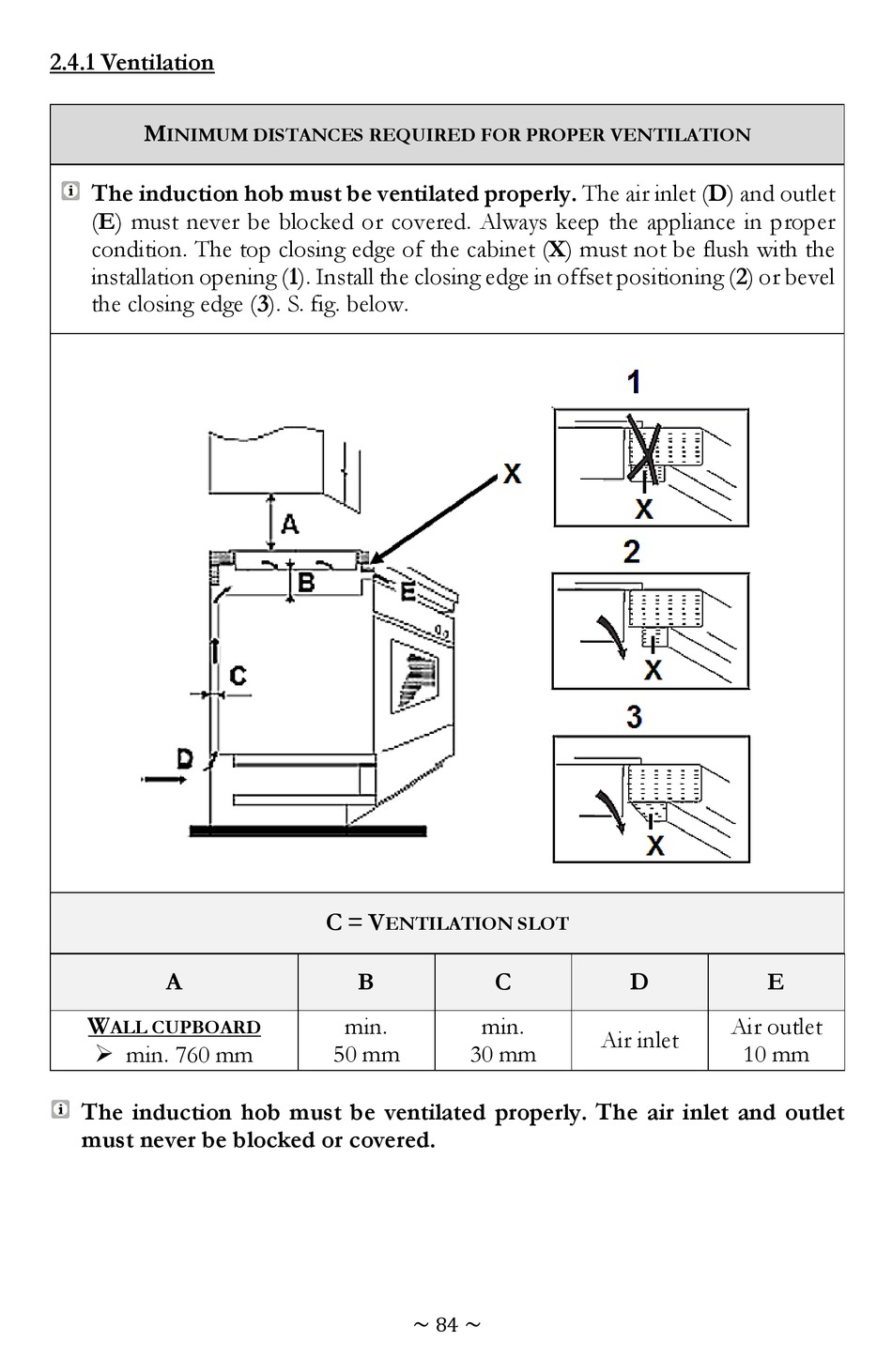

2.4.1 Ventilation

M
INIMUM DISTANCES REQUIRED FOR PROPER VENTILATION
The induction hob must be ventilated properly. The air inlet (D) and outlet
(E) must never be blocked or covered. Always keep the appliance in proper
condition. The top closing edge of the cabinet (X) must not be flush with the
installation opening (1). Install the closing edge in offset positioning (2) or bevel
the closing edge (3). S. fig. below.
A
W
ALL CUPBOARD
 min. 760 mm
The induction hob must be ventilated properly. The air inlet and outlet
must never be blocked or covered.
C = V
ENTILATION SLOT
B C
min. min.
50 mm 30 mm
~ ~
84
D E
Air outlet
Air inlet
10 mm
