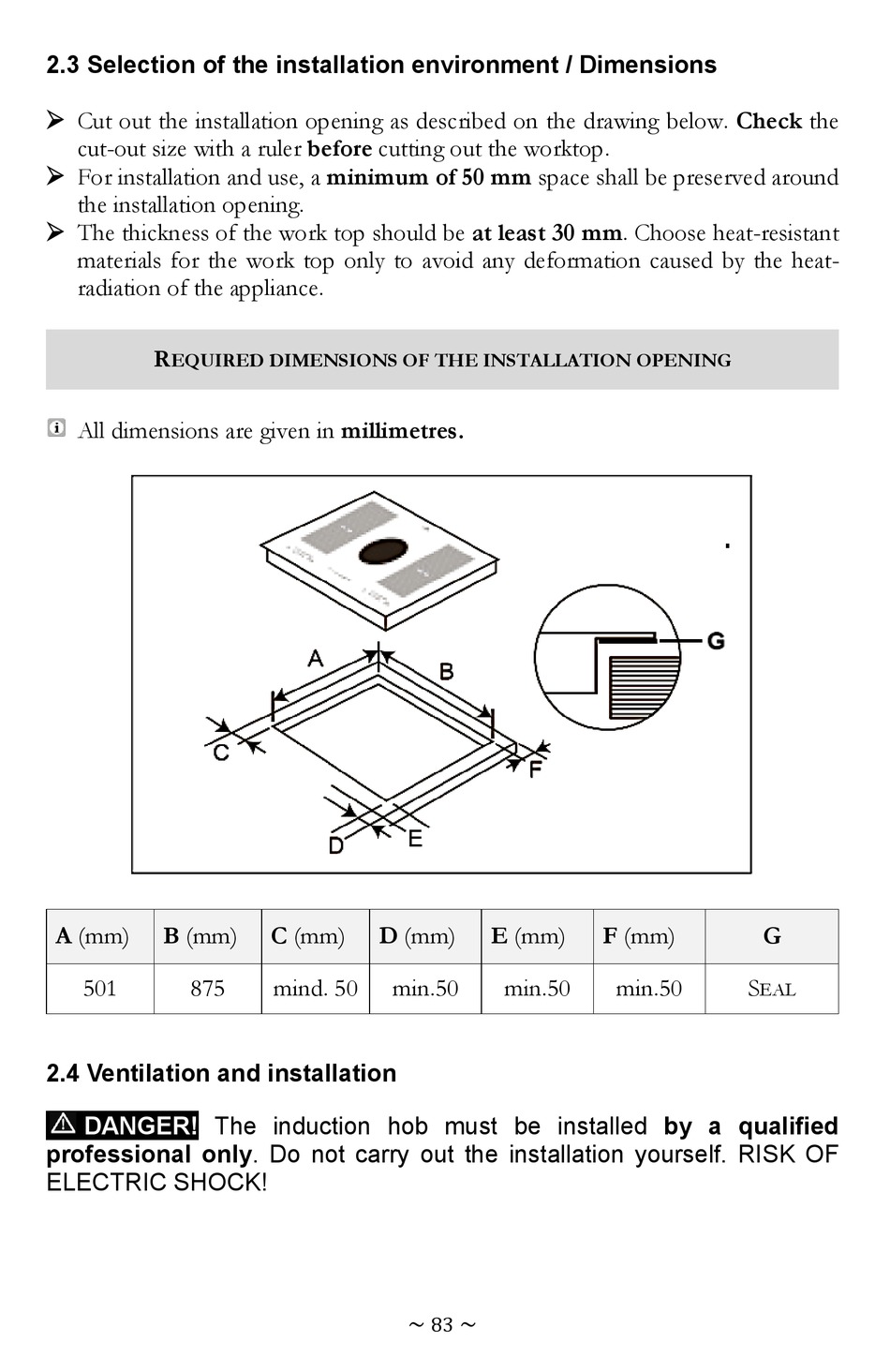

2.3 Selection of the installation environment / Dimensions

 Cut out the installation opening as described on the drawing below. Check the
cut-out size with a ruler before cutting out the worktop.
 For installation and use, a minimum of 50 mm space shall be preserved around
the installation opening.
 The thickness of the work top should be at least 30 mm. Choose heat-resistant
materials for the work top only to avoid any deformation caused by the heat-
radiation of the appliance.
R
EQUIRED DIMENSIONS OF THE INSTALLATION OPENING
All dimensions are given in millimetres.
A (mm) B (mm)
501 875

2.4 Ventilation and installation

DANGER! The induction hob must be installed by a qualified
professional only. Do not carry out the installation yourself. RISK OF
ELECTRIC SHOCK!
C (mm) D (mm)
mind. 50 min.50
~
83
E (mm) F (mm)
min.50 min.50
~
G
S
EAL
