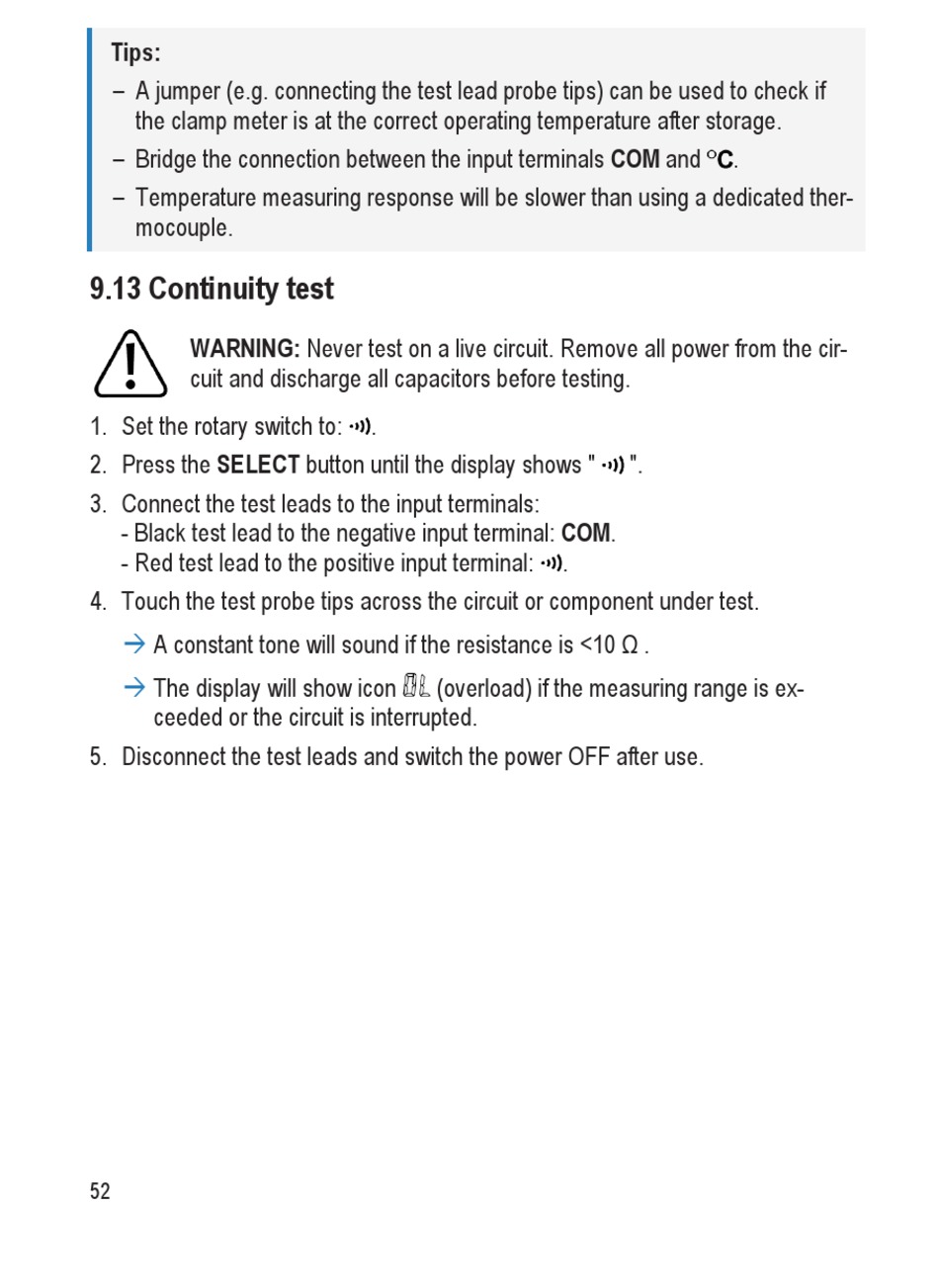

Tips:
– A jumper (e.g. connecting the test lead probe tips) can be used to check if
the clamp meter is at the correct operating temperature after storage.
– Bridge the connection between the input terminals COM and
– Temperature measuring response will be slower than using a dedicated ther-
mocouple.
9.13 Continuity test
WARNING: Never test on a live circuit. Remove all power from the cir-
cuit and discharge all capacitors before testing.
1. Set the rotary switch to:
2. Press the SELECT button until the display shows "
3. Connect the test leads to the input terminals:
- Black test lead to the negative input terminal: COM.
- Red test lead to the positive input terminal:
4. Touch the test probe tips across the circuit or component under test.
à
A constant tone will sound if the resistance is <10 Ω .
à
The display will show icon
ceeded or the circuit is interrupted.
5. Disconnect the test leads and switch the power OFF after use.
52
.
(overload) if the measuring range is ex-
".
.
.
