Tips:
If the capacitance being measured is ≤1µF, perform a zero adjustment to re-
move stray capacitance in the test leads and internal circuitry. This will improve
measurement accuracy.
1. Enter capacitance measurement mode.
2. Press the REL/ZERO button, the display will show "ZERO".
à
A zero adjust has been performed.

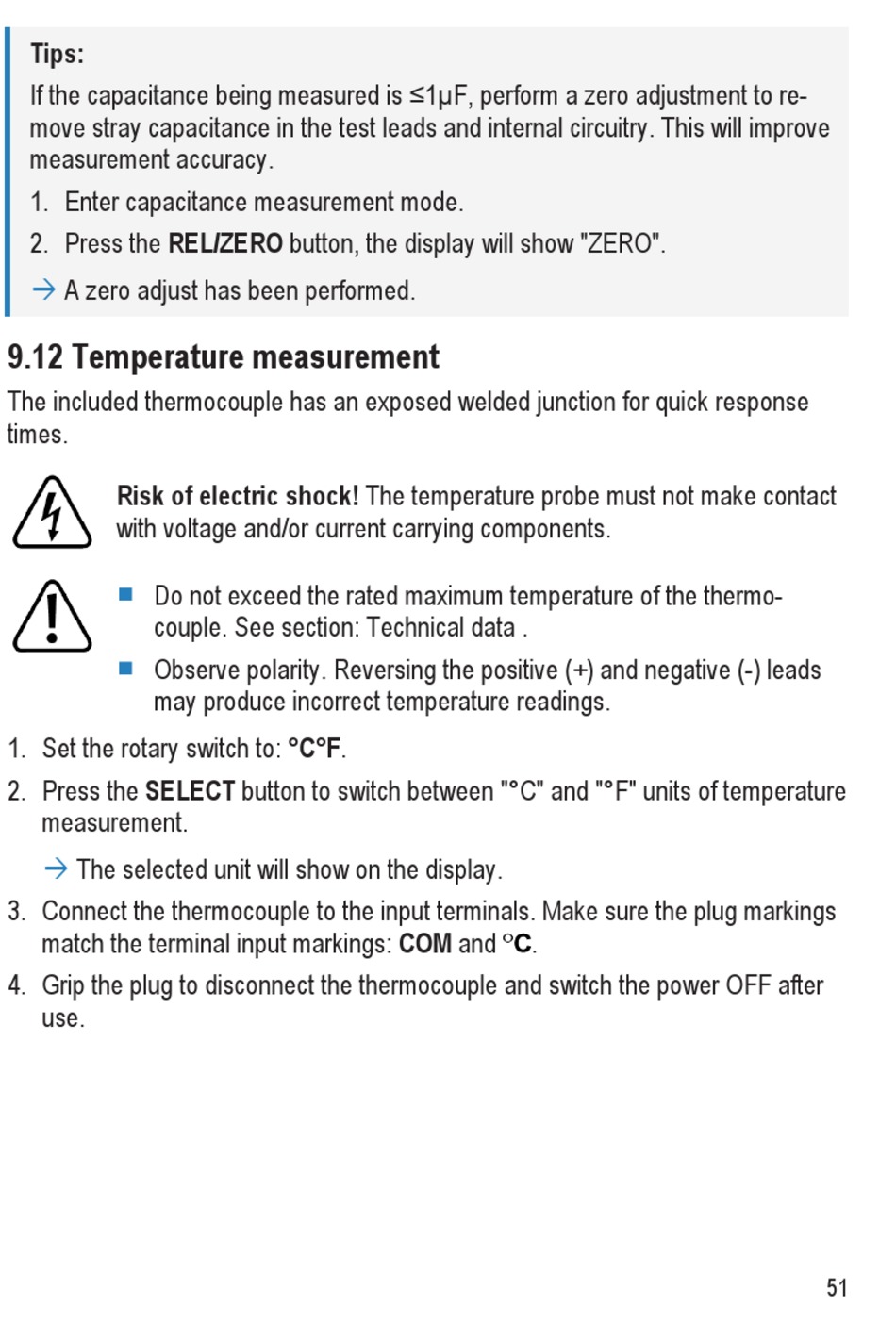

9.12 Temperature measurement

The included thermocouple has an exposed welded junction for quick response
times.
Risk of electric shock! The temperature probe must not make contact
with voltage and/or current carrying components.
■
Do not exceed the rated maximum temperature of the thermo-
couple. See section: Technical data .
■
Observe polarity. Reversing the positive (+) and negative (-) leads
may produce incorrect temperature readings.
1. Set the rotary switch to: °C°F.
2. Press the SELECT button to switch between "°C" and "°F" units of temperature
measurement.
à
The selected unit will show on the display.
3. Connect the thermocouple to the input terminals. Make sure the plug markings
match the terminal input markings: COM and
4. Grip the plug to disconnect the thermocouple and switch the power OFF after
use.
.
51
