DC/AC converter
The DC/AC converter installed in this mobile workstation converts the 24 V DC (direct current ) into a 230 V
AC/50 Hz sinusoidal alternating current.
CAUTION
Observe the maximum load from the AC - output (see chapter 25 technical data).
WARNING
After switching off due to overloading or overheating, the converter attempts to switch on again
automatically. The time up to automatic switching on again can range from a few seconds to a
number of hours.
This is why it is important during work on the electrical system or the consumers to disconnect
the converter from the battery using the On/Off switch, unplug the low-power cable of the charger
and unplug the battery tray connection cable.
24 V DC/DC converter
The connector for this 24 V DC output is located on the rear of the mobile workstation.
Phoenix plug

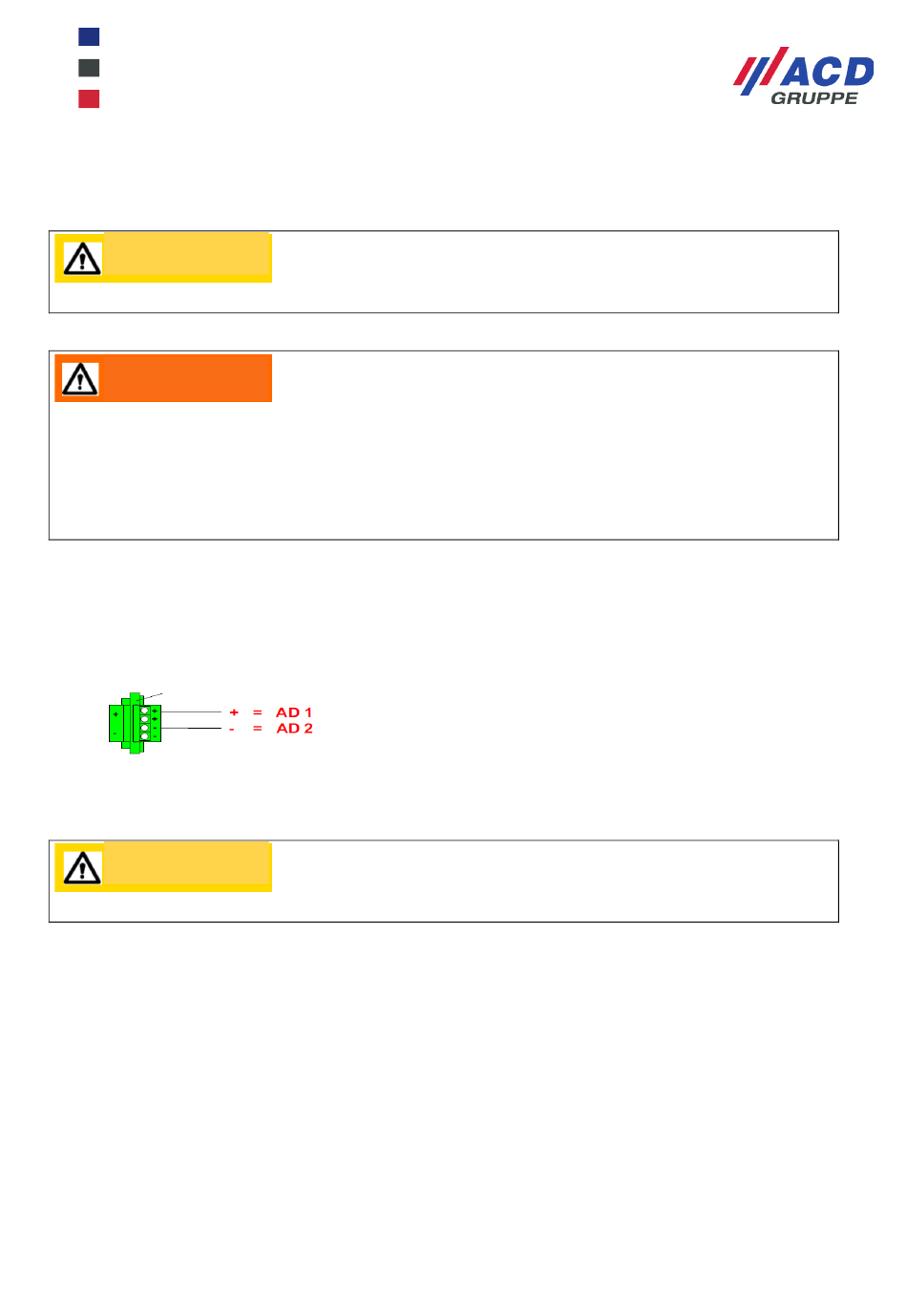

Figure 34: 24 V DC output
CAUTION
Ensure correct polarity! Observe the maximum load (see chapter 25 technical data).
