24 V DC/DC converter (option)
The DC/DC converter converts the 12 V direct current into a 24 V direct current. The connector for this 24 V
DC output is located on the rear of the mobile workstation.
Phoenix plug

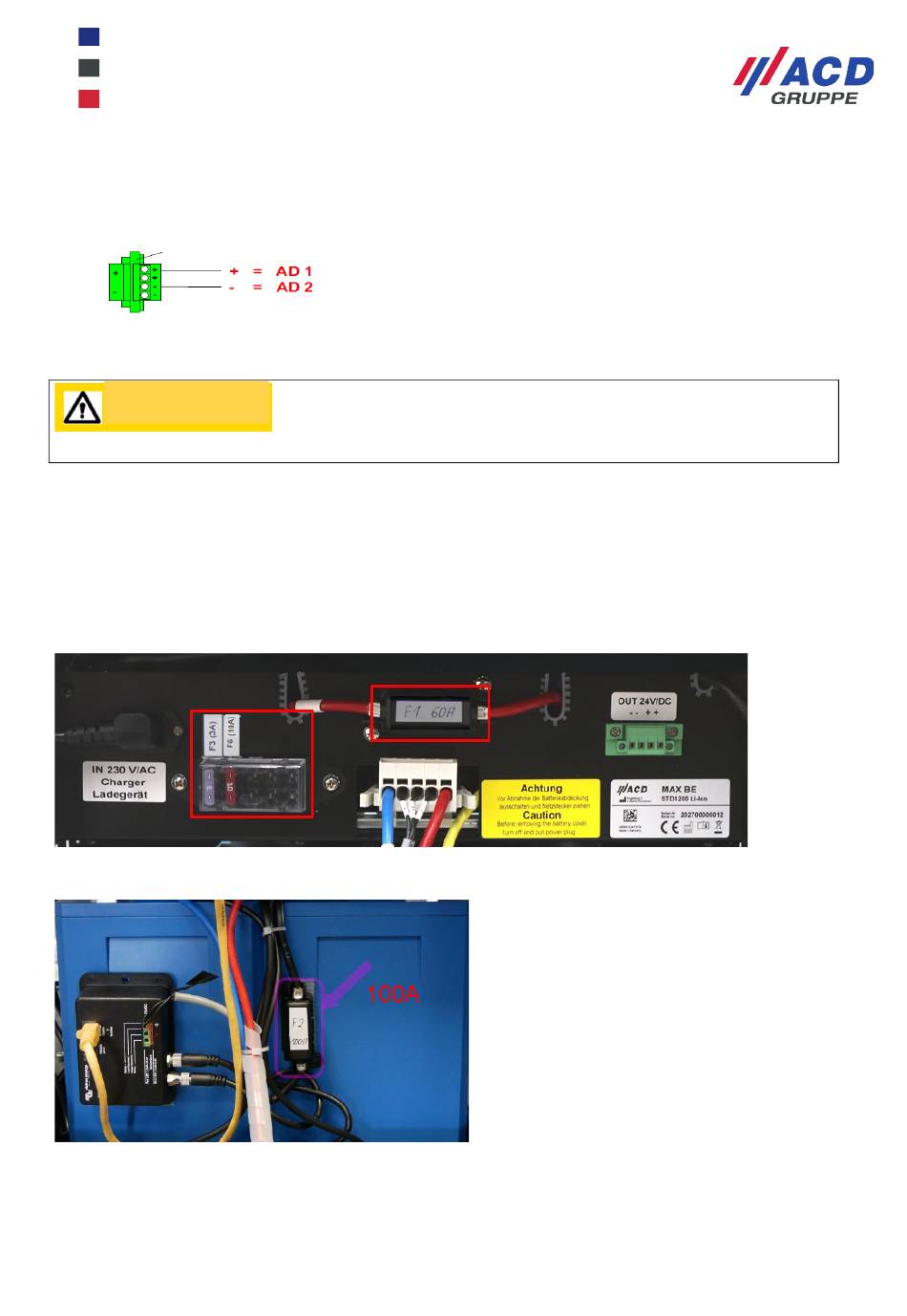

Figure 31: 24 V DC output
CAUTION
Ensure correct polarity! Observe the maximum load (see chapter 25 technical data).
20.2.10

MAX BE 750 Li-Ion and MAX BE 1200 Li-Ion

20.2.10.1 Fuses MAX BE 750 Li-Ion and MAX BE 1200 Li-Ion
The fuses are located behind the removable rear panel.
The following vehicle fuse types are installed:
Type ATO 3A (violet), type ATO 10A (red), type MIDI 60A (yellow), type MIDI 100A (blue)
Figure 32: MAX BE 750/MAX BE 1200 Li-Ion fuses
Figure 33: MAX BE 750/MAX BE 1200 Li-Ion fuses on the battery
