MAX BE 300 Li-Ion, MAX BE 400 Li-Ion) and MAX BE 500 Li-Ion

20.2.9.1 Fuses MAX BE 300 Li-Ion, MAX BE 400 Li-Ion) and MAX BE 500 Li-Ion
The fuses are located behind the removable rear panel.
The following vehicle fuse types are installed:
Type ATO 3A (violet), type ATO 5A (orange), type MIDI 40A (green), type MIDI 50A (red), type MIDI 60A
(yellow)

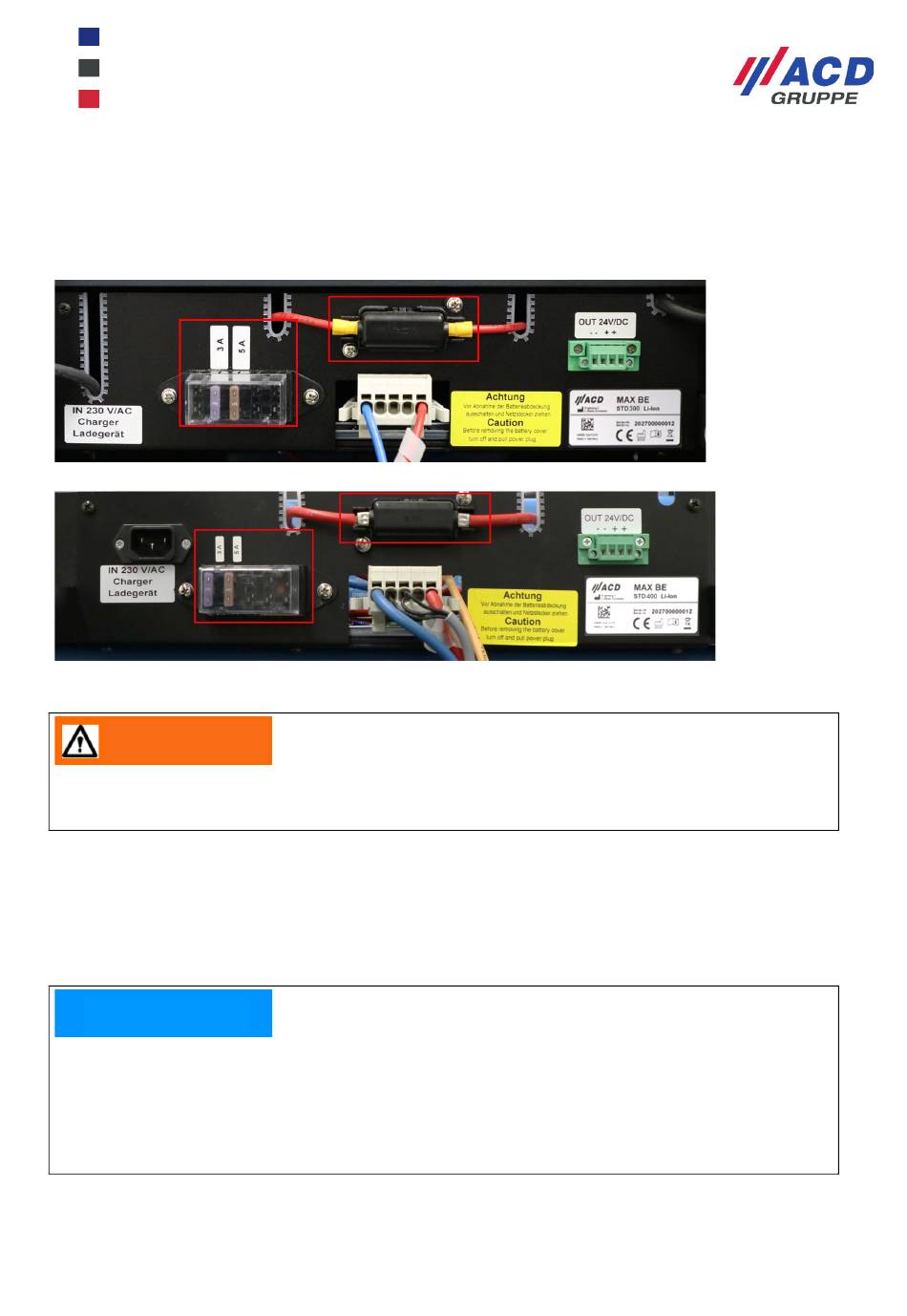

Figure 29: MAX BE 300 Li-Ion fuses
Figure 30: MAX BE 400 Li-Ion/MAX BE 500 Li-Ion fuses
WARNING
When changing the fuses, be sure to use only the same type of fuse as specified in the lettering on
the fuses.
20.2.9.2 Information on installed parts for MAX BE 300 Li-Ion, MAX BE 400 Li-Ionand MAX
BE 500 Li-Ion Charger
The charger installed in this mobile workstation can be connected to any shockproof socket with a mains
voltage of 220 – 240 V AC and 50 Hz. Once the operating temperature has been reached, the charging
process will start after connection to the mains.
NOTE
After plugging in the charging plug (MAX BE 400 Li-Ion/MAX BE 500 Li-Ion), the mains voltage is
switched through to the power strip with this inverter, practically without interruption (less than 20
milliseconds). This means that it is also possible to continue working during the charging process
and that the lithium-ion battery are charged irrespective of the connected load.
We recommend fusing the socket with a 16A automatic circuit breaker with a C characteristic.
