20 MAX BE variants

20.1 MAX BE (MAX BE STD and MAX BE BWS-R)

Chapter 20.1 describes the Mobile Workstation MAX BE with lead batteries.
20.1.1

Structure, function, operation

Operating modes
Three operating modes are available for the mobile workstation:

Mode 1: operation (normal operation)

•
Mode 2: charging with the integrated charger
•
Mode 3: charging and operation
•
20.1.2 Mode 1: operation (normal operation)
You can use the mobile workstation to connect consumers to a secure 24 V DC (direct current) or 230 V AC
(alternating current) power source and to transport them. The 24 V DC power is provided by two AGM block
batteries, each with 12 V, via a socket on the rear of the electronics box. If a DC/AC converter is installed,
the 24 V DC (direct current) is converted into a 230 V AC/50 Hz sinusoidal alternating current.
NOTE
Please do not exceed the maximum load, otherwise this will trip the internal fuse. For the relevant
values, please see the Technical data (see chapter 27).
Ensure that nothing can fall off when the cart moves.
Press the On/Off switch on the front (switch light lights up) to switch on the power (24 V DC and 230 V AC).
Now the workstation is ready to use.
Check the current charge state of the batteries by looking at the row of LEDs for the installed battery
controller.
NOTE
7 yellow LEDs lit up
1 yellow, flashing LED

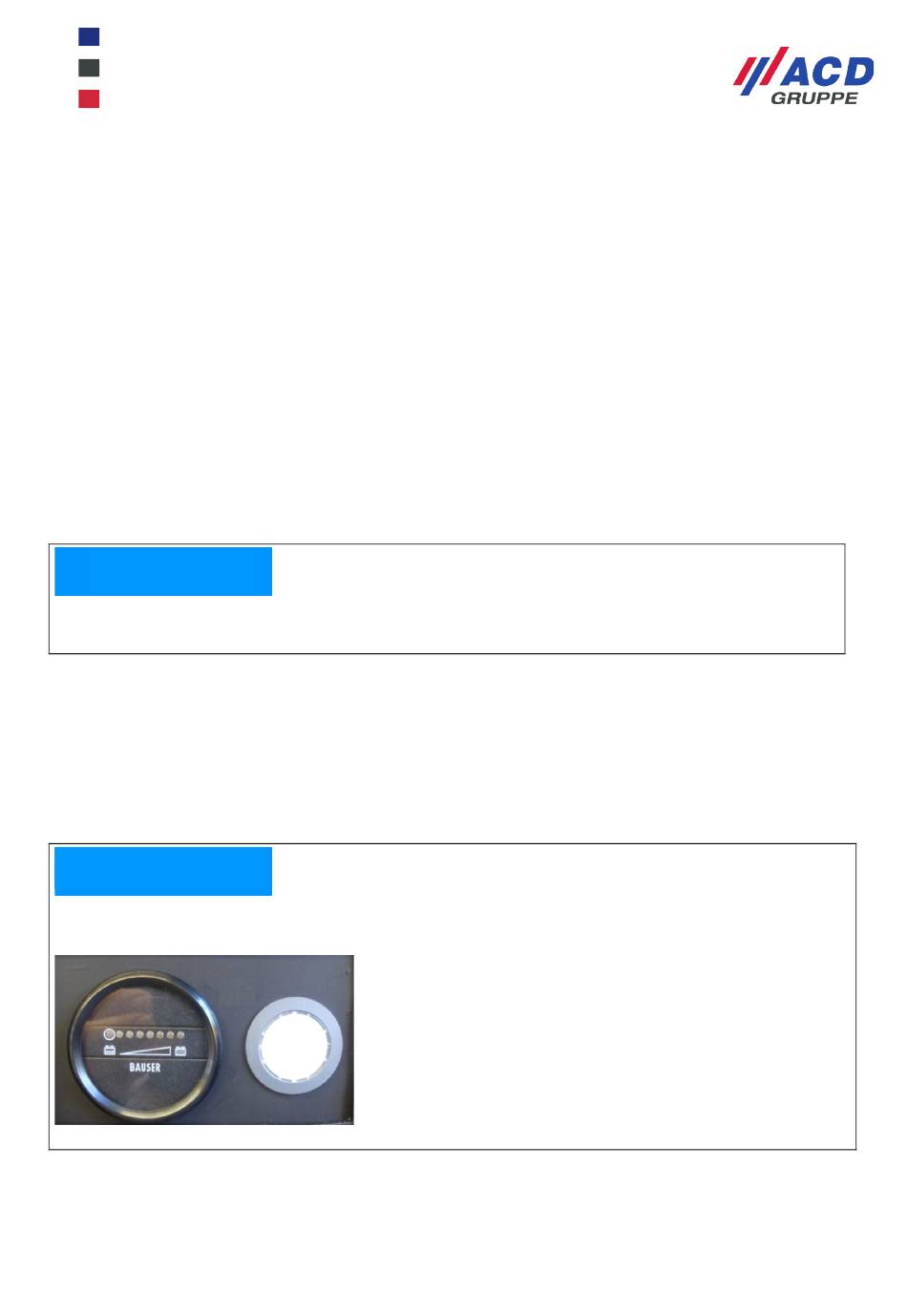

Figure 5: Battery charge state
MAX BE_Kurzanleitung_Brief_Overview_V1.00_de_en
– batteries are "full"
– batteries are "empty"
