20.1.4.1 Fixing the MAX Powerstation
The MAX Powerstation is designed to be fixed to a wall with three M8 x 60 mm screws. The station is
configured for the MAX cart in the factory.

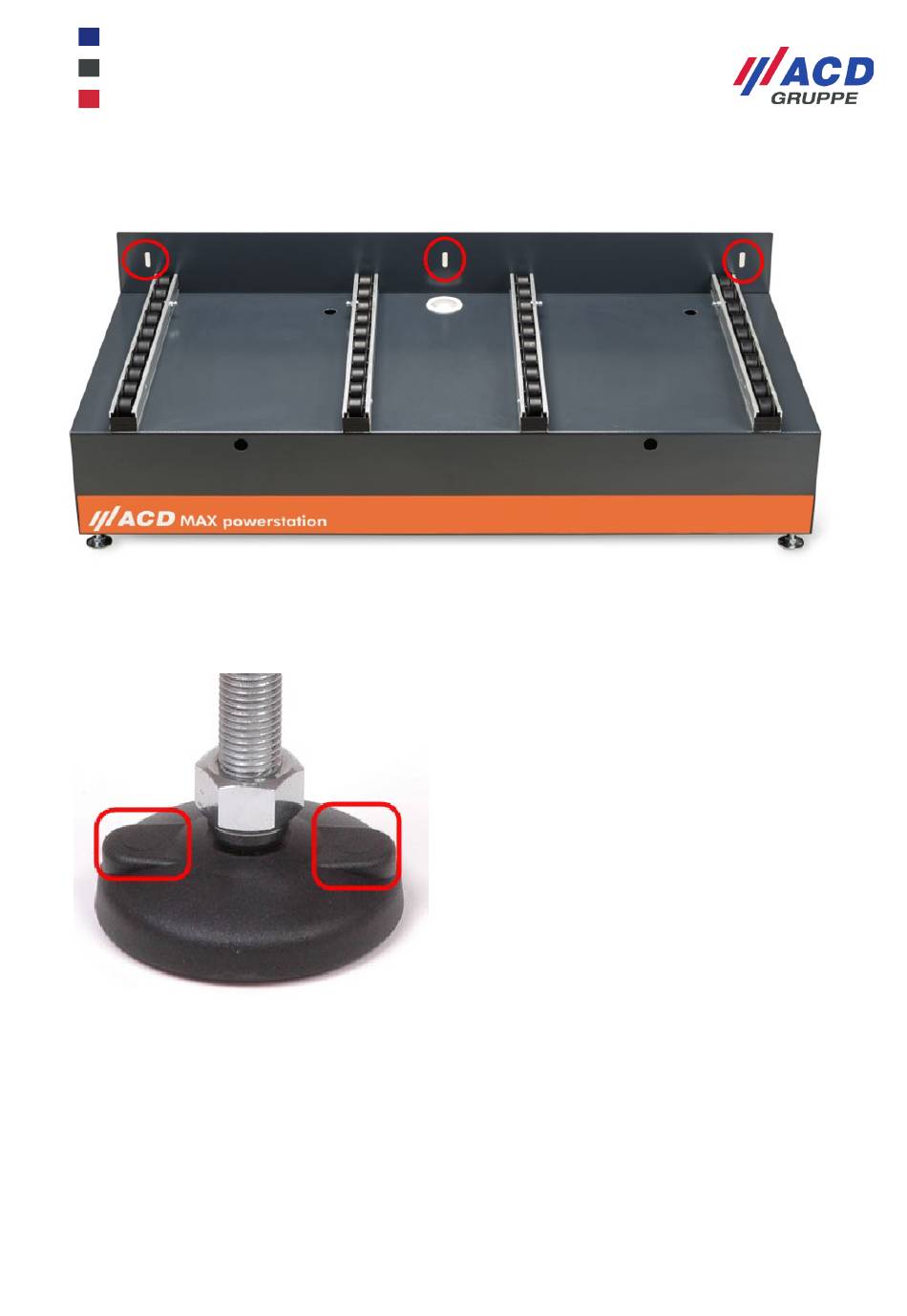

Figure 16: MAX Powerstation
Free-standing installation is also possible. In this case, it is fixed with two M8 x 60 mm screws on the four
feet. To do this, pierce the two prepared holes on the feet.
Figure 17: Fixing on the foot
