20.1.5

Interfaces

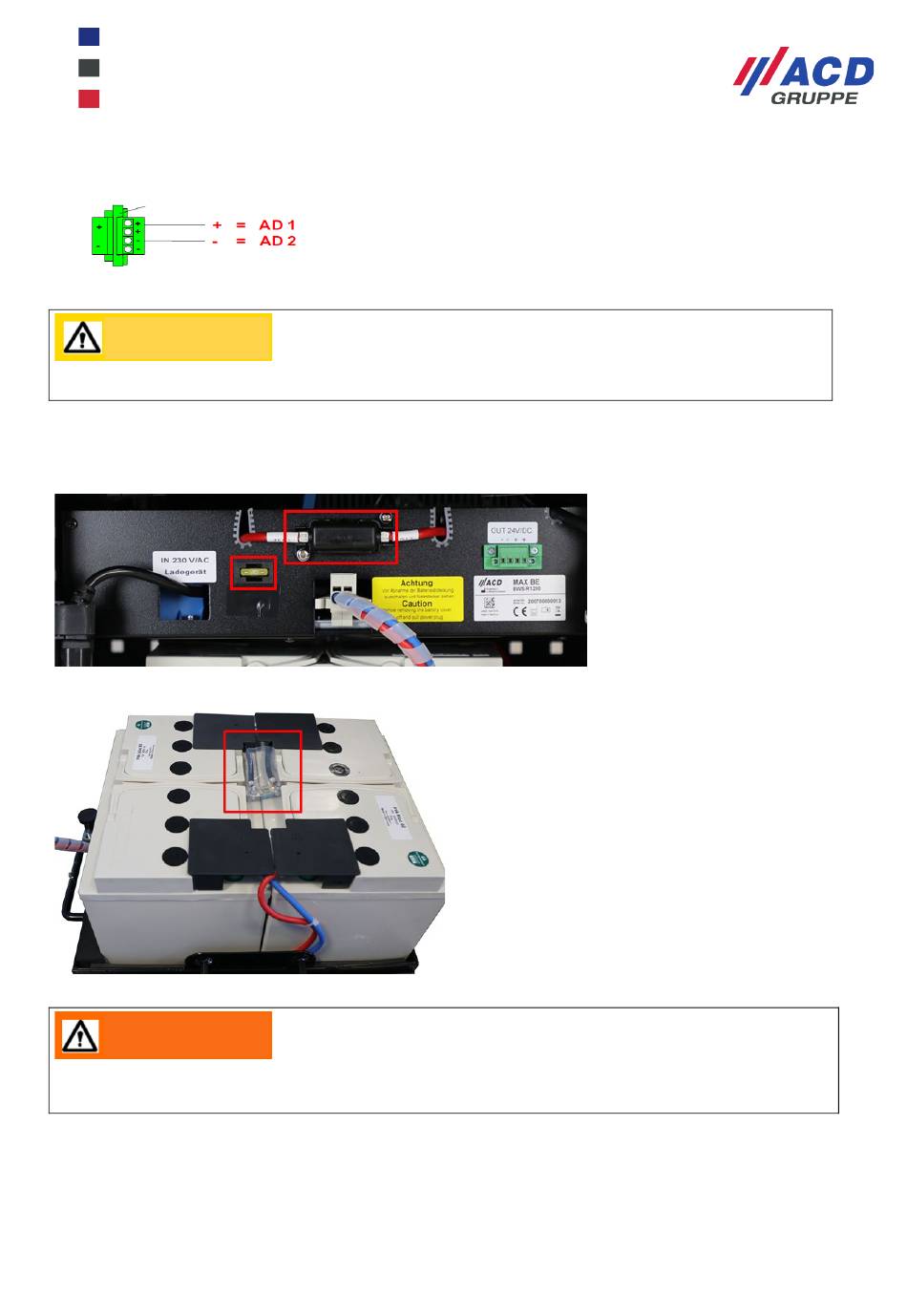

The connector for the 24 V DC output is located on the rear of the mobile workstation.
Phoenix plug
Figure 7: 24 V DC output connector
CAUTION
Ensure correct polarity! Observe maximum load (see chapter 27 technical data).
20.1.6

Fuses

The fuses are located behind the removable rear panel, you can find the fuse type in the technical data.
Figure 8: Battery fuse (depending on the type of mobile workstation)
Figure 9: Battery fuse (depending on the type of mobile workstation)
WARNING
When changing the fuses, be sure to use only the same type of fuse as specified in the lettering on
the fuses.
MAX BE_Kurzanleitung_Brief_Overview_V1.00_de_en 62 / 100
