ACD GRUPPE MAX BE Kurzanleitung Seite 65

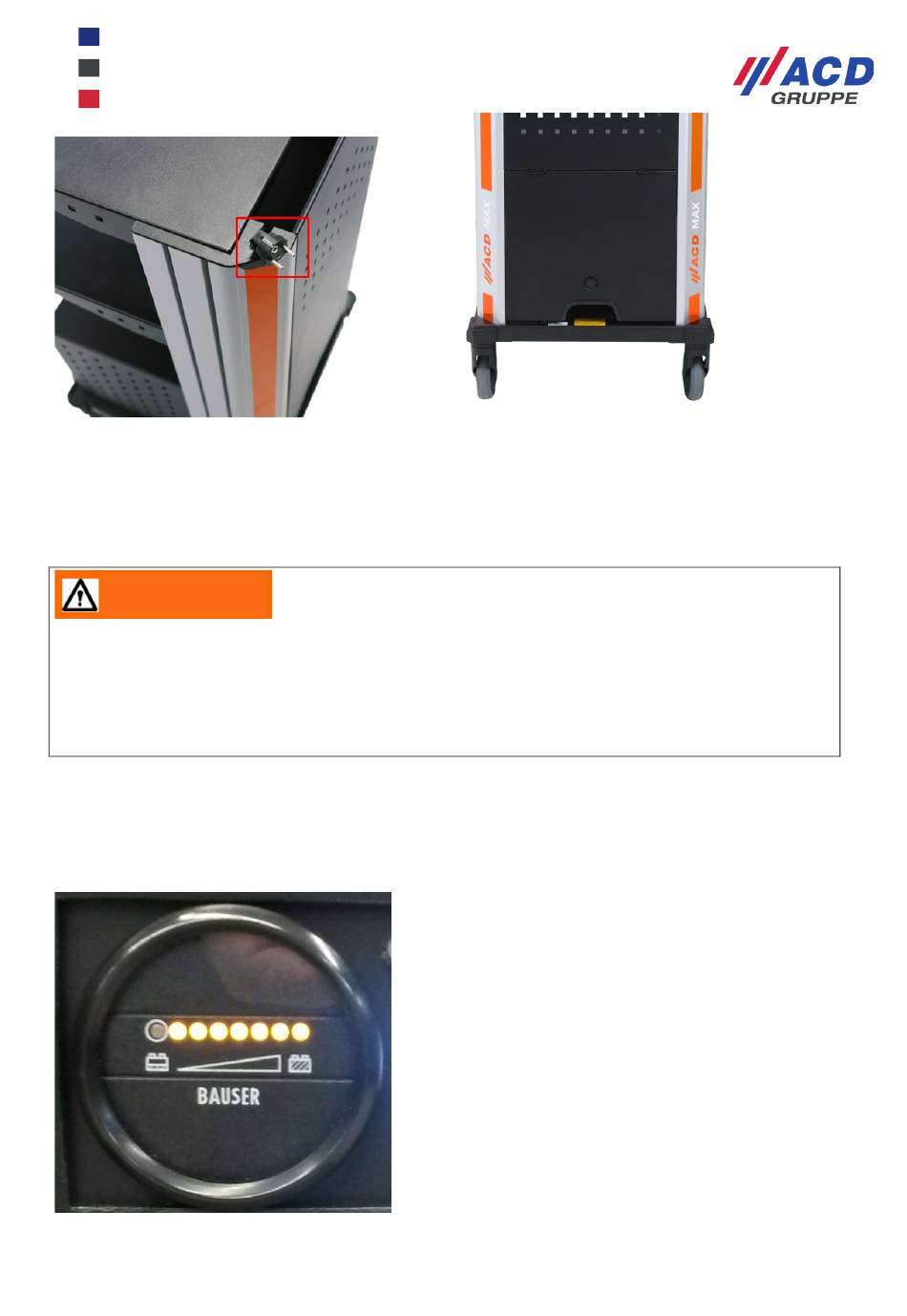

Figure 13: Charger mains cable Figure 12: Rear of MAX BE multifunction panel
20.1.2.2 DC/AC converter
The DC/AC converter installed in this mobile workstation converts the 24 V DC (direct current) into a 230 V
AC/50 Hz sinusoidal alternating current.
WARNING
After switching off due to overloading or overheating, the converter attempts to switch on again
automatically. The time up to automatic switching on again can range from a few seconds to a
number of hours.
This is why it is important during work on the electrical system or the consumers to disconnect
the converter from the battery using the On/Off switch, unplug the low-power cable of the charger
and unplug the battery tray connection cable.
20.1.2.3 Battery controller
The battery controller installed in this mobile workstation allows you to monitor the residual capacity of the
batteries so you can protect them from deep discharging.
Figure 14: Battery controller
MAX BE_Kurzanleitung_Brief_Overview_V1.00_de_en 65 / 100
