20.1.4.4 Putting the empty change tray down for loading
1. Move the mobile workstation MAX BE to the MAX Powerstation and open the rear panel.
2. Insert the battery change index of the mobile workstation MAX BE into the opening of the MAX
Powerstation.
3. Lock both castors.
4. Unlock the change tray using the release button, and pull it towards the MAX Powerstation.
5. Lock the change tray onto the MAX Powerstation.
6. Plug the charging cable of the empty battery tray into the connection socket of the charger.
7. Switch on the charger and check the charging process using the status display. 8.
8. After the charging process has been completed, the charger must be switched off and the charging
cable of the battery tray must be removed.
NOTE
The external charger must be designed for the battery type (see chapter 25 Technical data).

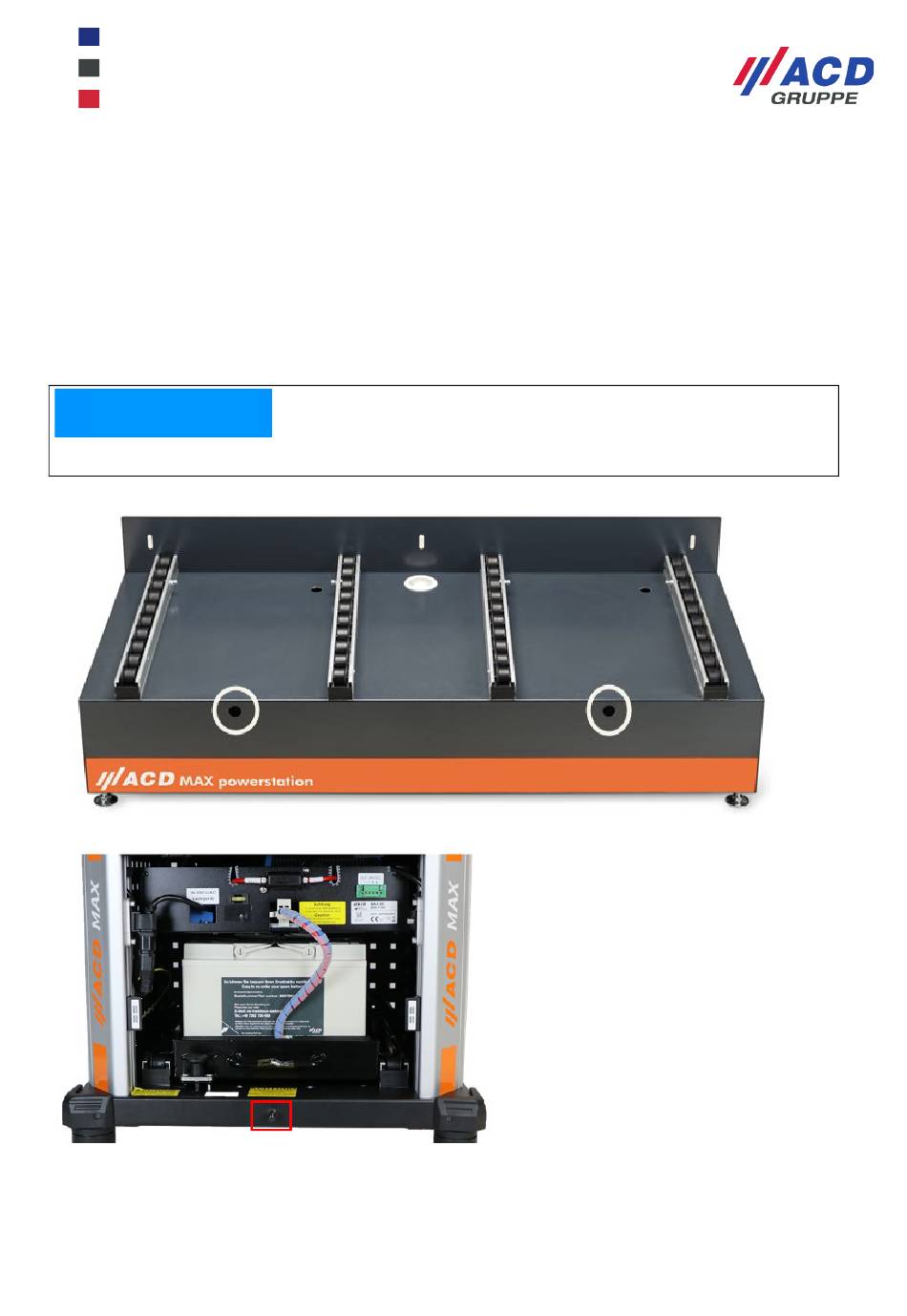

Figure 20: MAX Powerstation index for docking the mobile workstation
Figure 21: Index at the mobile workstation for battery change at the MAX Powerstation
