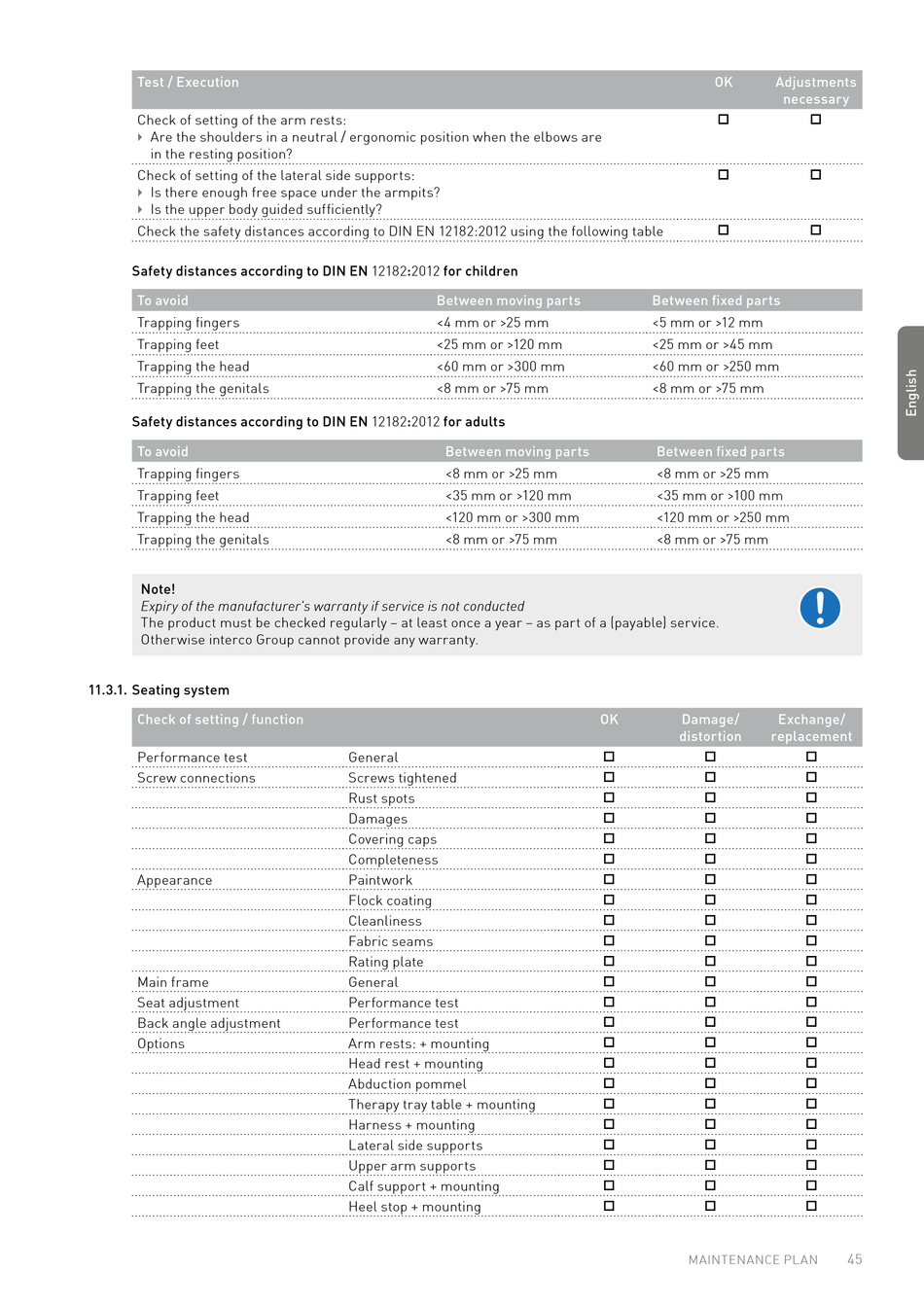

Test / Execution
Check of setting of the arm rests:
Are the shoulders in a neutral / ergonomic position when the elbows are

in the resting position?
Check of setting of the lateral side supports:
Is there enough free space under the armpits?

Is the upper body guided sufficiently?

Check the safety distances according to DIN EN 12182:2012 using the following table
Safety distances according to DIN EN 12182:2012 for children
To avoid
Trapping fingers
Trapping feet
Trapping the head
Trapping the genitals
Safety distances according to DIN EN 12182:2012 for adults
To avoid
Trapping fingers
Trapping feet
Trapping the head
Trapping the genitals
Note!
Expiry of the manufacturer's warranty if service is not conducted
The product must be checked regularly – at least once a year – as part of a (payable) service�
Otherwise interco Group cannot provide any warranty�
11.3.1. Seating system
Check of setting / function
Performance test
Screw connections
Appearance
Main frame
Seat adjustment
Back angle adjustment
Options
Between moving parts
<4 mm or >25 mm
<25 mm or >120 mm
<60 mm or >300 mm
<8 mm or >75 mm
Between moving parts
<8 mm or >25 mm
<35 mm or >120 mm
<120 mm or >300 mm
<8 mm or >75 mm
General
Screws tightened
Rust spots
Damages
Covering caps
Completeness
Paintwork
Flock coating
Cleanliness
Fabric seams
Rating plate
General
Performance test
Performance test
Arm rests: + mounting
Head rest + mounting
Abduction pommel
Therapy tray table + mounting
Harness + mounting
Lateral side supports
Upper arm supports
Calf support + mounting
Heel stop + mounting
OK



Between fixed parts
<5 mm or >12 mm
<25 mm or >45 mm
<60 mm or >250 mm
<8 mm or >75 mm
Between fixed parts
<8 mm or >25 mm
<35 mm or >100 mm
<120 mm or >250 mm
<8 mm or >75 mm
OK Damage/
distortion replacement
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
MAINTENANCE PL AN
Adjustments
necessary



Exchange/























45
