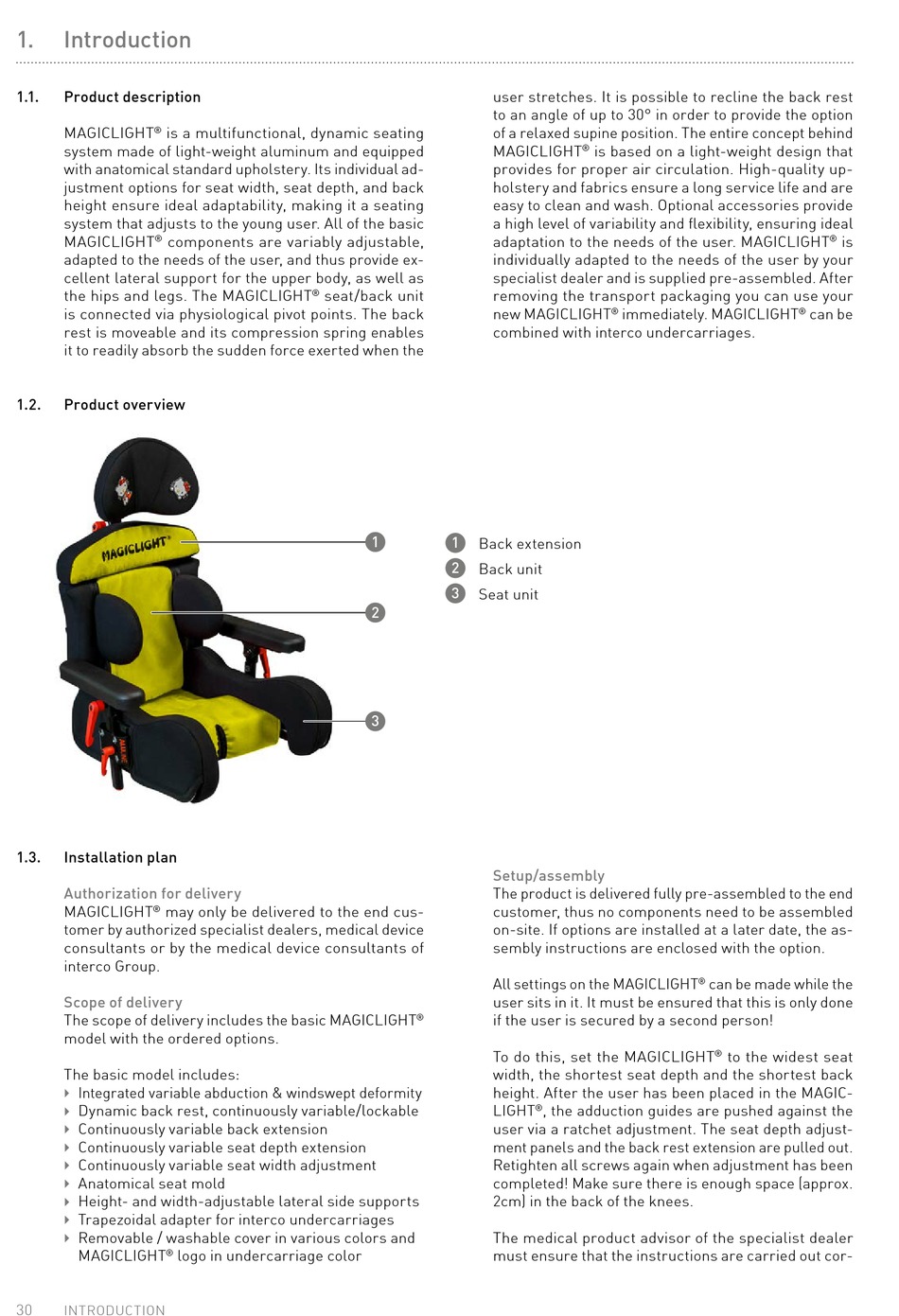

Introduction; Product Description; Product Overview; Installation Plan - InterCo MAGICLIGHT Gebrauchsanweisung

1.

Introduction

1.1.

Product description

MAGICLIGHT is a multifunctional, dynamic seating
®
system made of light-weight aluminum and equipped
with anatomical standard upholstery� Its individual ad-
justment options for seat width, seat depth, and back
height ensure ideal adaptability, making it a seating
system that adjusts to the young user� All of the basic
MAGICLIGHT components are variably adjustable,
®
adapted to the needs of the user, and thus provide ex-
cellent lateral support for the upper body, as well as
the hips and legs� The MAGICLIGHT
is connected via physiological pivot points� The back
rest is moveable and its compression spring enables
it to readily absorb the sudden force exerted when the
1.2.

Product overview

1.3.

Installation plan

Authorization for delivery
MAGICLIGHT may only be delivered to the end cus-
®
tomer by authorized specialist dealers, medical device
consultants or by the medical device consultants of
interco Group�
Scope of delivery
The scope of delivery includes the basic MAGICLIGHT
model with the ordered options�
The basic model includes:
Integrated variable abduction & windswept deformity

Dynamic back rest, continuously variable/lockable

Continuously variable back extension

Continuously variable seat depth extension

Continuously variable seat width adjustment

Anatomical seat mold

Height- and width-adjustable lateral side supports

Trapezoidal adapter for interco undercarriages

Removable / washable cover in various colors and

MAGICLIGHT logo in undercarriage color
®
30
INTRODUCTION
seat/back unit
®
1
1
Back extension
2
Back unit
3
Seat unit
2
3
®
user stretches� It is possible to recline the back rest
to an angle of up to 30° in order to provide the option
of a relaxed supine position� The entire concept behind
MAGICLIGHT is based on a light-weight design that
®
provides for proper air circulation� High-quality up-
holstery and fabrics ensure a long service life and are
easy to clean and wash� Optional accessories provide
a high level of variability and flexibility, ensuring ideal
adaptation to the needs of the user� MAGICLIGHT
individually adapted to the needs of the user by your
specialist dealer and is supplied pre-assembled� After
removing the transport packaging you can use your
new MAGICLIGHT immediately� MAGICLIGHT
®
combined with interco undercarriages�
Setup/assembly
The product is delivered fully pre-assembled to the end
customer, thus no components need to be assembled
on-site� If options are installed at a later date, the as-
sembly instructions are enclosed with the option�
All settings on the MAGICLIGHT
user sits in it� It must be ensured that this is only done
if the user is secured by a second person!
To do this, set the MAGICLIGHT
width, the shortest seat depth and the shortest back
height� After the user has been placed in the MAGIC-
LIGHT , the adduction guides are pushed against the
®
user via a ratchet adjustment� The seat depth adjust-
ment panels and the back rest extension are pulled out�
Retighten all screws again when adjustment has been
completed! Make sure there is enough space (approx�
2cm) in the back of the knees�
The medical product advisor of the specialist dealer
must ensure that the instructions are carried out cor-
is
®
can be
®
can be made while the
®
to the widest seat
®
