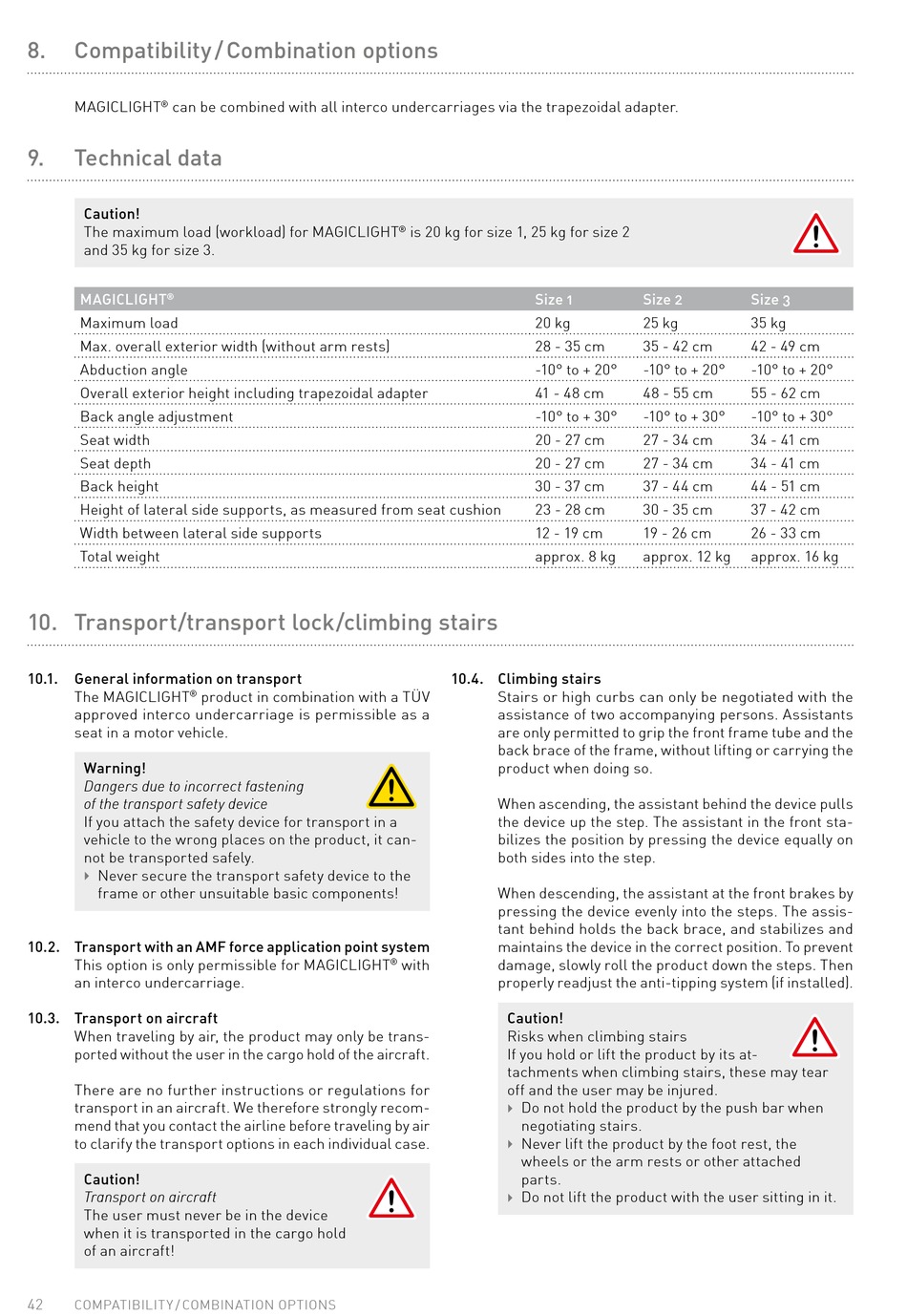

8.

Compatibility / Combination options

MAGICLIGHT can be combined with all interco undercarriages via the trapezoidal adapter�
®
9.

Technical data

Caution!
The maximum load (workload) for MAGICLIGHT
and 35 kg for size 3�
MAGICLIGHT
®
Maximum load
Max� overall exterior width (without arm rests)
Abduction angle
Overall exterior height including trapezoidal adapter
Back angle adjustment
Seat width
Seat depth
Back height
Height of lateral side supports, as measured from seat cushion
Width between lateral side supports
Total weight

10. Transport/transport lock/climbing stairs

10.1.

General information on transport

The MAGICLIGHT
®
approved interco undercarriage is permissible as a
seat in a motor vehicle�
Warning!
Dangers due to incorrect fastening
of the transport safety device
If you attach the safety device for transport in a
vehicle to the wrong places on the product, it can-
not be transported safely�
Never secure the transport safety device to the

frame or other unsuitable basic components!

10.2. Transport with an AMF force application point system

This option is only permissible for MAGICLIGHT
an interco undercarriage�

10.3. Transport on aircraft

When traveling by air, the product may only be trans-
ported without the user in the cargo hold of the aircraft�
There are no further instructions or regulations for
transport in an aircraft� We therefore strongly recom-
mend that you contact the airline before traveling by air
to clarify the transport options in each individual case�
Caution!
Transport on aircraft
The user must never be in the device
when it is transported in the cargo hold
of an aircraft!
42
COMPATIBILIT Y / COMBINATION OPTIONS
product in combination with a TÜV
is 20 kg for size 1, 25 kg for size 2
®
Size 1
20 kg
28 - 35 cm
-10° to + 20°
41 - 48 cm
-10° to + 30°
20 - 27 cm
20 - 27 cm
30 - 37 cm
23 - 28 cm
12 - 19 cm
approx� 8 kg

10.4. Climbing stairs

Stairs or high curbs can only be negotiated with the
assistance of two accompanying persons� Assistants
are only permitted to grip the front frame tube and the
back brace of the frame, without lifting or carrying the
product when doing so�
When ascending, the assistant behind the device pulls
the device up the step� The assistant in the front sta-
bilizes the position by pressing the device equally on
both sides into the step�
When descending, the assistant at the front brakes by
pressing the device evenly into the steps� The assis-
tant behind holds the back brace, and stabilizes and
maintains the device in the correct position� To prevent
with damage, slowly roll the product down the steps� Then
®
properly readjust the anti-tipping system (if installed)�
Caution!
Risks when climbing stairs
If you hold or lift the product by its at-
tachments when climbing stairs, these may tear
off and the user may be injured�
Do not hold the product by the push bar when

negotiating stairs�
Never lift the product by the foot rest, the

wheels or the arm rests or other attached
parts�
Do not lift the product with the user sitting in it�

Size 2 Size 3
25 kg 35 kg
35 - 42 cm 42 - 49 cm
-10° to + 20° -10° to + 20°
48 - 55 cm 55 - 62 cm
-10° to + 30° -10° to + 30°
27 - 34 cm 34 - 41 cm
27 - 34 cm 34 - 41 cm
37 - 44 cm 44 - 51 cm
30 - 35 cm 37 - 42 cm
19 - 26 cm 26 - 33 cm
approx� 12 kg approx� 16 kg
