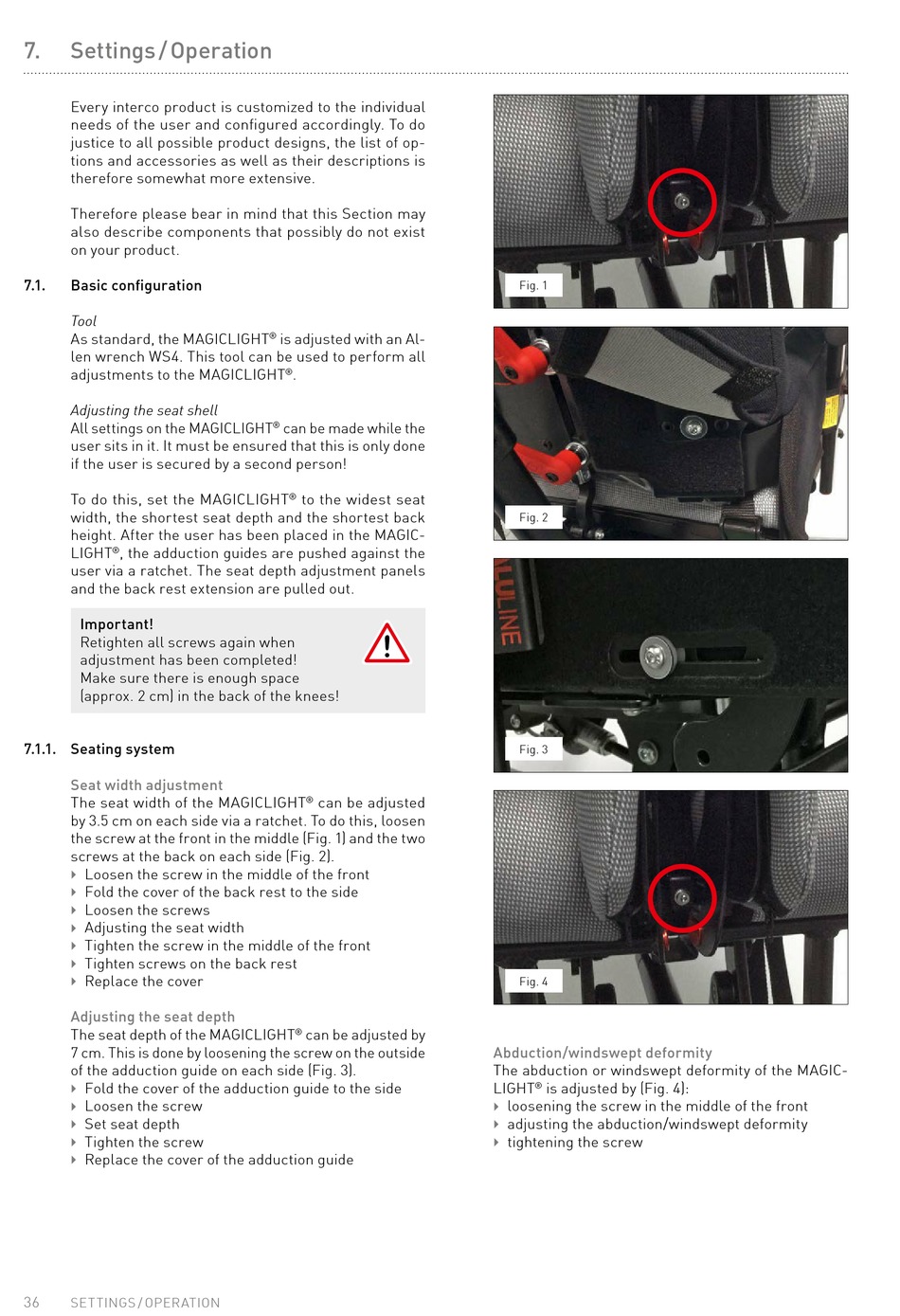

7.

Settings / Operation

Every interco product is customized to the individual
needs of the user and configured accordingly� To do
justice to all possible product designs, the list of op-
tions and accessories as well as their descriptions is
therefore somewhat more extensive�
Therefore please bear in mind that this Section may
also describe components that possibly do not exist
on your product�
7.1. Basic configuration
Tool
As standard, the MAGICLIGHT
len wrench WS4� This tool can be used to perform all
adjustments to the MAGICLIGHT
Adjusting the seat shell
All settings on the MAGICLIGHT
user sits in it� It must be ensured that this is only done
if the user is secured by a second person!
To do this, set the MAGICLIGHT
width, the shortest seat depth and the shortest back
height� After the user has been placed in the MAGIC-
LIGHT , the adduction guides are pushed against the
®
user via a ratchet� The seat depth adjustment panels
and the back rest extension are pulled out�
Important!
Retighten all screws again when
adjustment has been completed!
Make sure there is enough space
(approx� 2 cm) in the back of the knees!
7.1.1. Seating system
Seat width adjustment
The seat width of the MAGICLIGHT
by 3�5 cm on each side via a ratchet� To do this, loosen
the screw at the front in the middle (Fig� 1) and the two
screws at the back on each side (Fig� 2)�
Loosen the screw in the middle of the front

Fold the cover of the back rest to the side

Loosen the screws

Adjusting the seat width

Tighten the screw in the middle of the front

Tighten screws on the back rest

Replace the cover

Adjusting the seat depth
The seat depth of the MAGICLIGHT
7 cm� This is done by loosening the screw on the outside
of the adduction guide on each side (Fig� 3)�
Fold the cover of the adduction guide to the side

Loosen the screw

Set seat depth

Tighten the screw

Replace the cover of the adduction guide

36
SETTINGS / OPERATION
is adjusted with an Al-
®
�
®
can be made while the
®
to the widest seat
®
can be adjusted
®
can be adjusted by
®
Fig 1
Fig 2
Fig 3
Fig 4
Abduction/windswept deformity
The abduction or windswept deformity of the MAGIC-
LIGHT is adjusted by (Fig� 4):
®
loosening the screw in the middle of the front

adjusting the abduction/windswept deformity

tightening the screw

