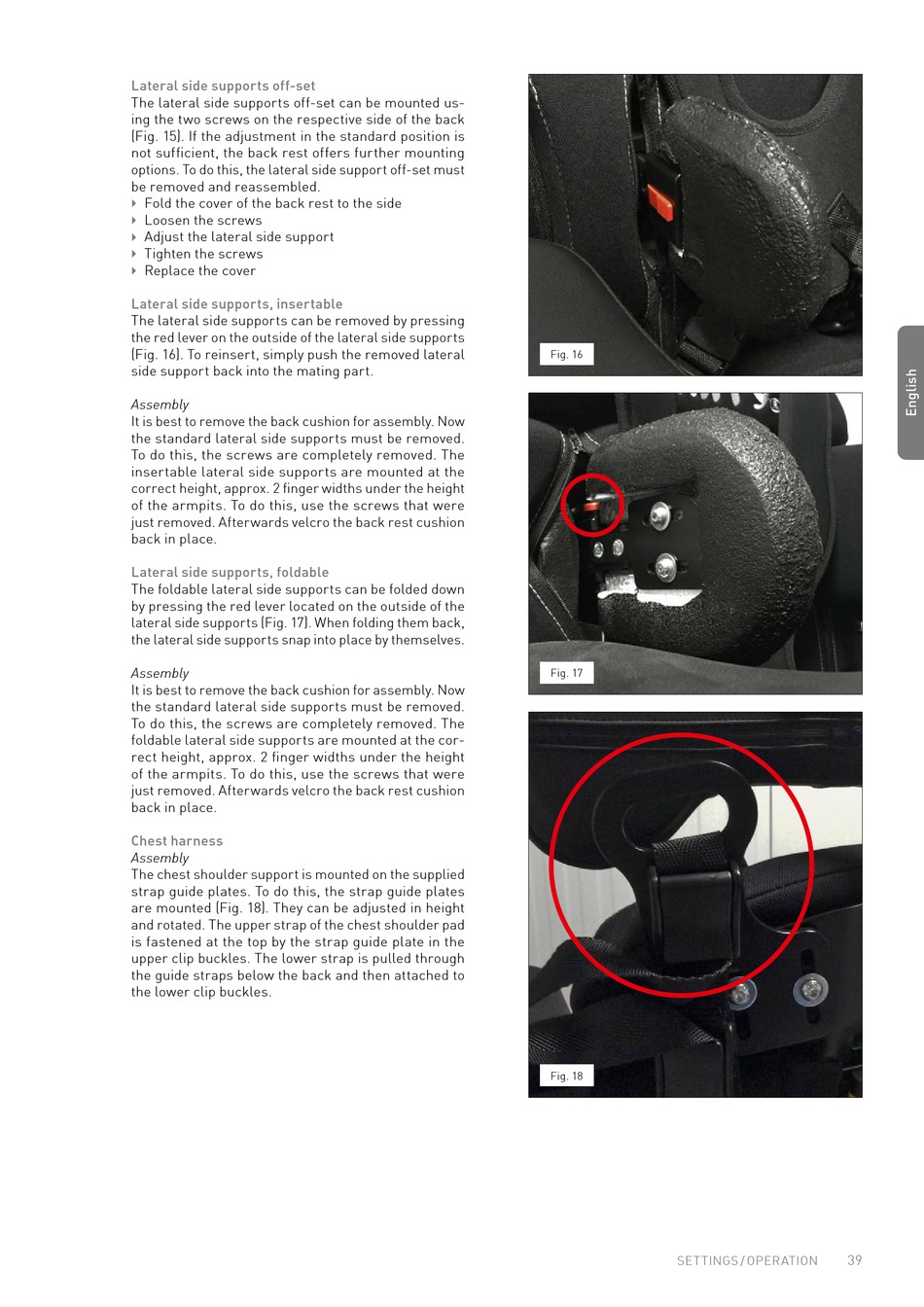

Lateral side supports off-set
The lateral side supports off-set can be mounted us-
ing the two screws on the respective side of the back
(Fig� 15)� If the adjustment in the standard position is
not sufficient, the back rest offers further mounting
options� To do this, the lateral side support off-set must
be removed and reassembled�
Fold the cover of the back rest to the side

Loosen the screws

Adjust the lateral side support

Tighten the screws

Replace the cover

Lateral side supports, insertable
The lateral side supports can be removed by pressing
the red lever on the outside of the lateral side supports
(Fig� 16)� To reinsert, simply push the removed lateral
side support back into the mating part�
Assembly
It is best to remove the back cushion for assembly� Now
the standard lateral side supports must be removed�
To do this, the screws are completely removed� The
insertable lateral side supports are mounted at the
correct height, approx� 2 finger widths under the height
of the armpits� To do this, use the screws that were
just removed� Afterwards velcro the back rest cushion
back in place�
Lateral side supports, foldable
The foldable lateral side supports can be folded down
by pressing the red lever located on the outside of the
lateral side supports (Fig� 17)� When folding them back,
the lateral side supports snap into place by themselves�
Assembly
It is best to remove the back cushion for assembly� Now
the standard lateral side supports must be removed�
To do this, the screws are completely removed� The
foldable lateral side supports are mounted at the cor-
rect height, approx� 2 finger widths under the height
of the armpits� To do this, use the screws that were
just removed� Afterwards velcro the back rest cushion
back in place�
Chest harness
Assembly
The chest shoulder support is mounted on the supplied
strap guide plates� To do this, the strap guide plates
are mounted (Fig� 18)� They can be adjusted in height
and rotated� The upper strap of the chest shoulder pad
is fastened at the top by the strap guide plate in the
upper clip buckles� The lower strap is pulled through
the guide straps below the back and then attached to
the lower clip buckles�
