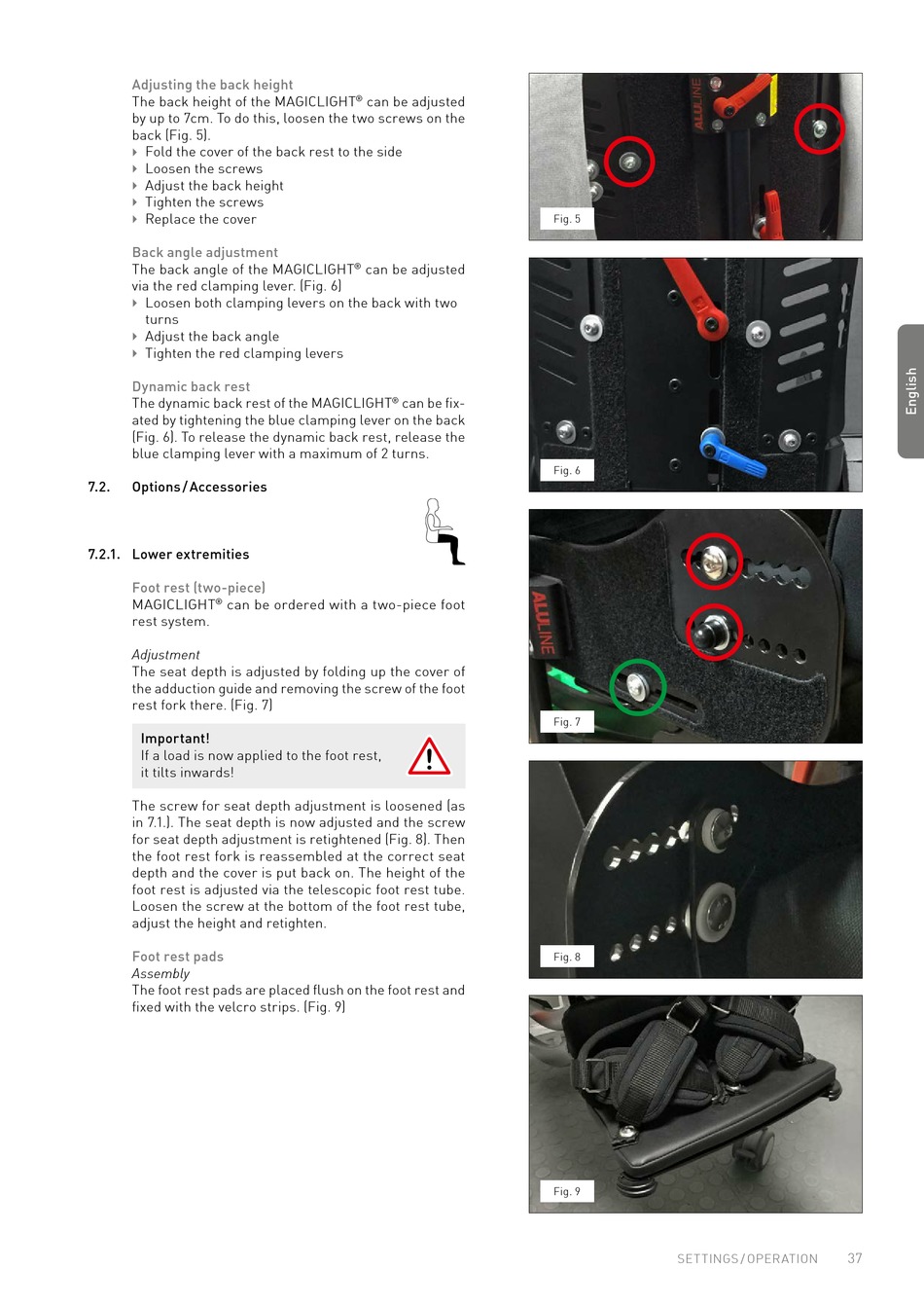

Adjusting the back height
The back height of the MAGICLIGHT
by up to 7cm� To do this, loosen the two screws on the
back (Fig� 5)�
Fold the cover of the back rest to the side

Loosen the screws

Adjust the back height

Tighten the screws

Replace the cover

Back angle adjustment
The back angle of the MAGICLIGHT
via the red clamping lever� (Fig� 6)
Loosen both clamping levers on the back with two

turns
Adjust the back angle

Tighten the red clamping levers

Dynamic back rest
The dynamic back rest of the MAGICLIGHT
ated by tightening the blue clamping lever on the back
(Fig� 6)� To release the dynamic back rest, release the
blue clamping lever with a maximum of 2 turns�
7.2. Options / Accessories
7.2.1. Lower extremities
Foot rest (two-piece)
MAGICLIGHT can be ordered with a two-piece foot
®
rest system�
Adjustment
The seat depth is adjusted by folding up the cover of
the adduction guide and removing the screw of the foot
rest fork there� (Fig� 7)
Important!
If a load is now applied to the foot rest,
it tilts inwards!
The screw for seat depth adjustment is loosened (as
in 7�1�)� The seat depth is now adjusted and the screw
for seat depth adjustment is retightened (Fig� 8)� Then
the foot rest fork is reassembled at the correct seat
depth and the cover is put back on� The height of the
foot rest is adjusted via the telescopic foot rest tube�
Loosen the screw at the bottom of the foot rest tube,
adjust the height and retighten�
Foot rest pads
Assembly
The foot rest pads are placed flush on the foot rest and
fixed with the velcro strips� (Fig� 9)
can be adjusted
®
can be adjusted
®
can be fix-
®
Fig 5
Fig 6
Fig 7
Fig 8
Fig 9
SETTINGS / OPERATION
37
