• At the craniotomy site (Fig 13, a)
close the scalp incision around the
parenchymal
standard hospital procedures. Make
sure not to suture the catheter body to
avoid damaging the probe.
• Use single sutures to secure the
parenchymal probe guide (Fig. 13, b)
to the scalp near the incision which is
located 40 - 70 mm from the drill hole
or craniotomy site. Place the suture
between the suture retaining rings on
the parenchymal probe guide. Close
the scalp using standard hospital
procedures.

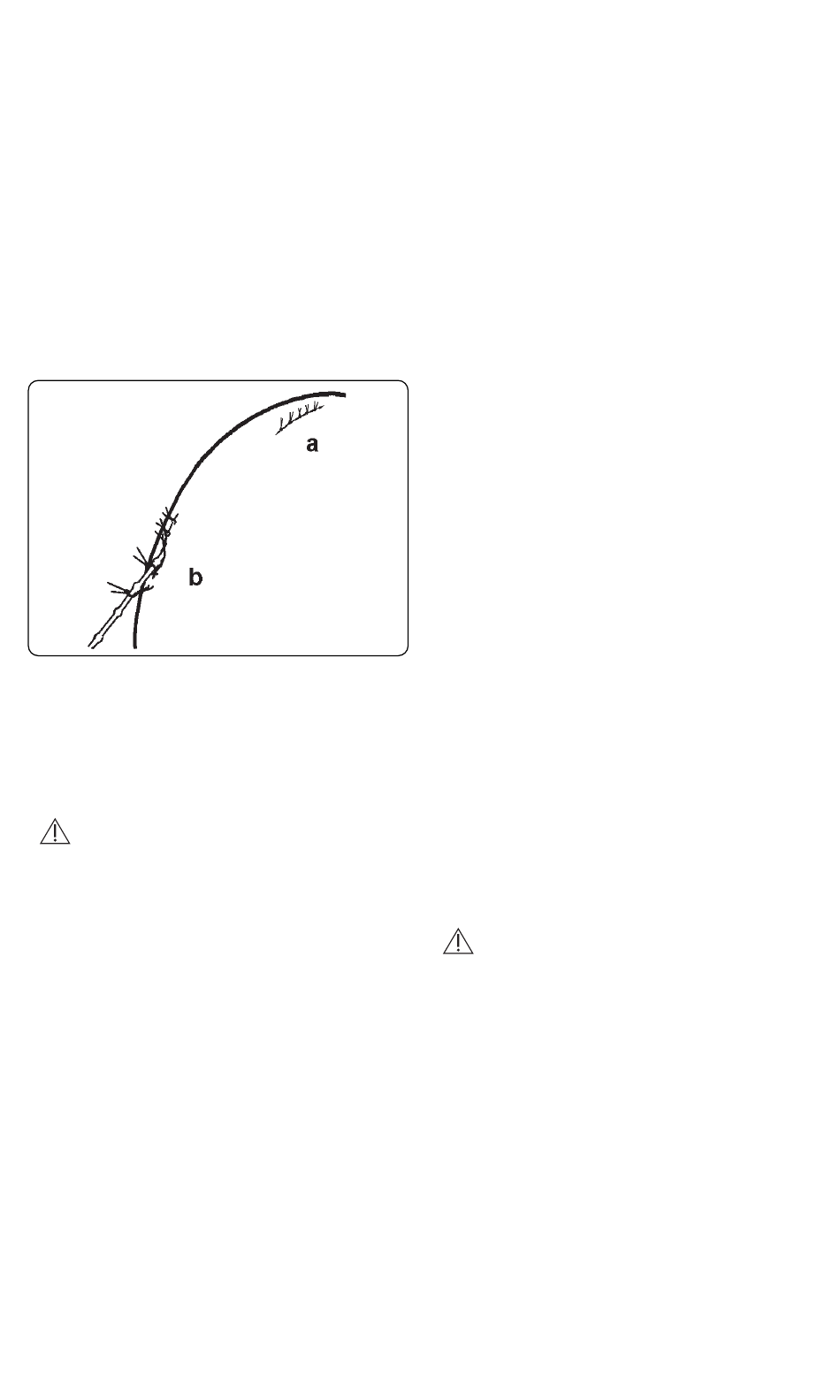

Fig. 13: Closing the scalp and suturing the
parenchymal probe guide for mechanical
fixation.
P O and Temperature Monitoring using
bt 2
Licox PMOBOX
Prior to measurement the patient
bedside monitor must be zeroed
according to the Licox PMOBOX
operations manual.
Please note that temperature will not
be displayed on the bedside monitor.
• Connect the combined oxygen and
temperature probe to the blue monitor
cable REF PMOCAB. Connect the
cable REF PMOCAB to the blue oxygen
input socket of the PMOBOX.
• The smart card is not required. Connect
the Licox PMOBOX and the patient
bedside monitor using NL950-MC-xx
cable.
probe guide using
P O and Temperature Monitoring
bt 2
using the Licox CMP monitor or the
Licox P O
monitor
t 2
• Insert the smart card into the smart card
slot on the front panel of the Licox CMP
monitor or, if using the Licox
monitor, into the smart card slot on the
right panel of the
• Connect the blue leg of the Y-cable
REF BC10PMO to the blue oxygen
input socket of the CMP monitor or
monitor and connect the green leg of the
Y-cable to the green input socket of the
CMP monitor or P
• Connect the
REF PMOCAB to the blue leg of the
Y-cable REF BC10PMO.
• Connect the combined oxygen and
temperature probe to the blue monitor
cable REF PMOCAB.
Normally, reliable
available after a tissue stabilization time of
20 minutes (when the tissue has stabilized
after the microtrauma of implantation).
However, it may occasionally take up to two
hours until the readings stabilize.
For related information regarding set up and
use please refer to the Licox CMP monitor
operations manual or the Licox
User´s Manual and/or PMOBOX operations
manual.
Safe Removal and Disposal
• Removal of the system should occur in
reverse order of the insertion.
• The skin may be closed with a suture
or staples.
The single use components must be
handled as biohazardous material.
Dispose off the single use components
according to the hospital policy.
monitor.
P O
t 2
O monitor.
t 2
blue monitor cable
p O readings
bt 2
monitor
P O
t 2
P O
t 2
P O
t 2
are
13
