Fronius DeviceNet Robacta CTC Bedienungsanleitung Seite 37

(5)

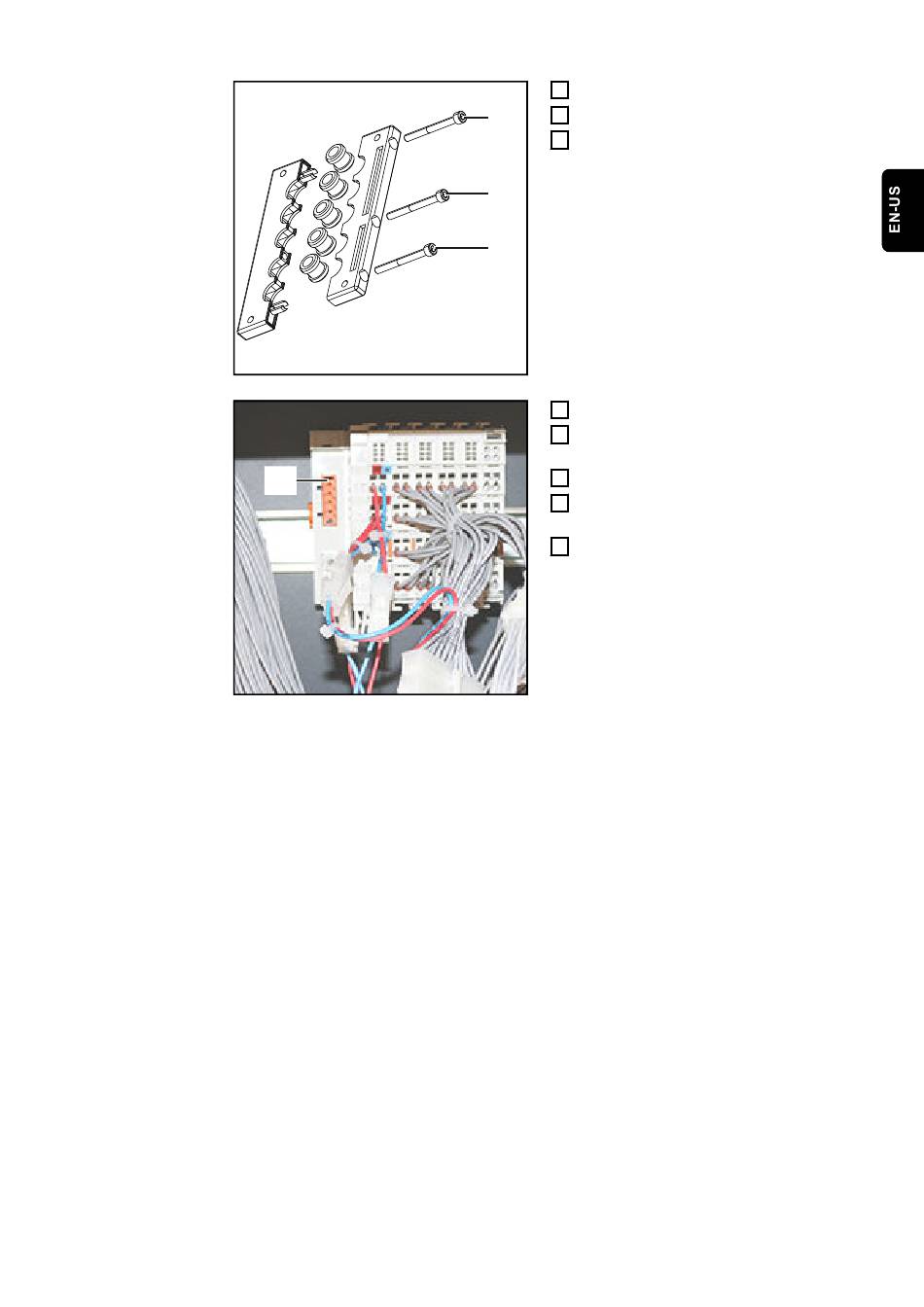

Remove screws (2) - (4)
3
Open perforated plate
4
(2)
Route the data cable into the device
5
through the center rubber bushing
(3)
(4)
Attach the 5-pin plug to the data cable
6
Connect the data cable to the connec-
7
tion (5) at the fieldbus coupler
Secure the data cable with cable ties
8
Screw the perforated plate back in
9
place with the original screws
Screw the device covers back on with
10
the original screws
- Tightening torque of the screws
for Robacta TX, TX 10i, TX/i
TWIN = 10 Nm (7.38 ft-lb)
- Tightening torque of the screws
for Robacta FB 8I_8O = 4 Nm
(2.95 ft-lb)
37
