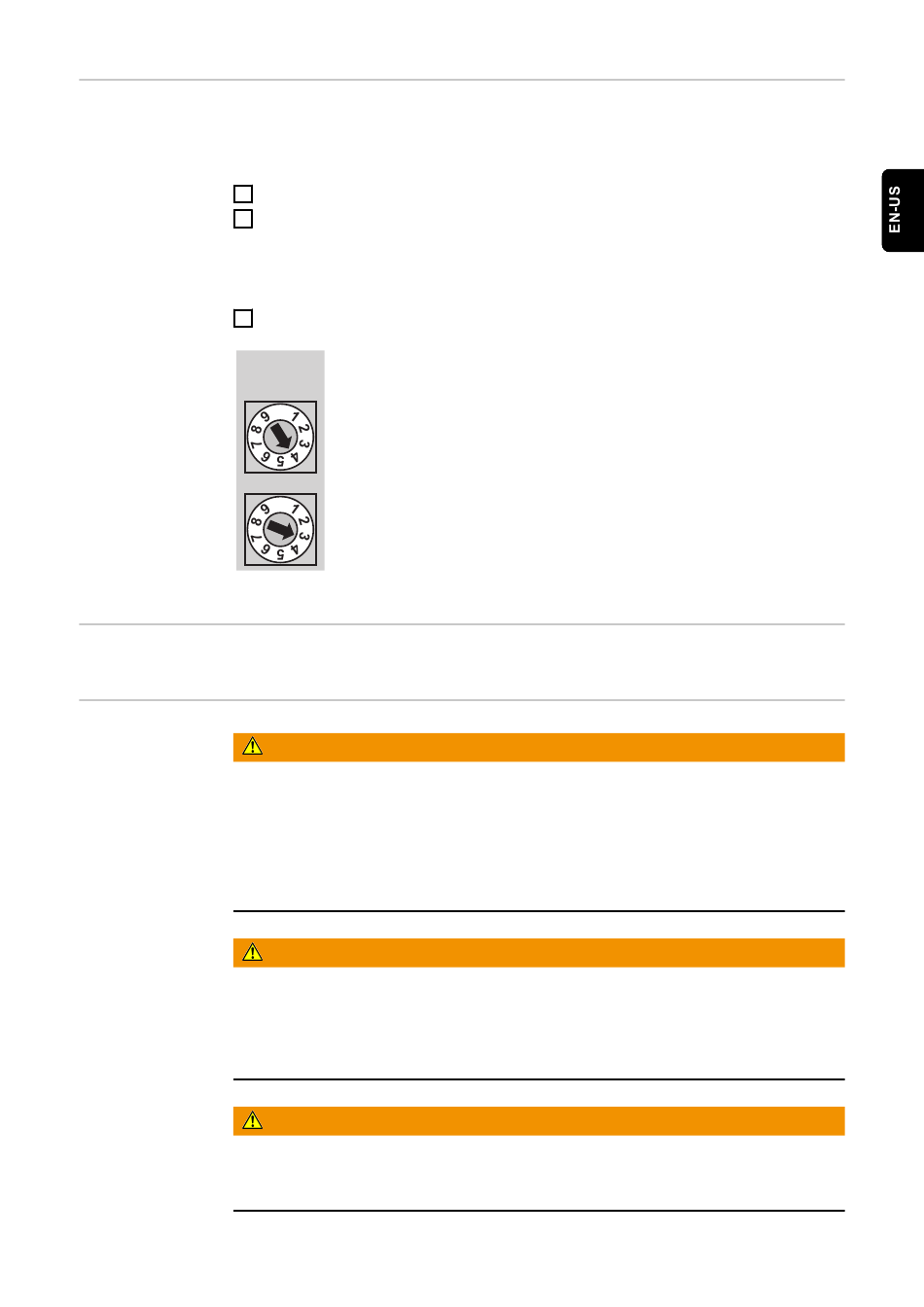

Address settings The address is set using the two rotary selector switches.
on the fieldbus Default setting = 11
coupler All addresses are allowed but each address must only appear once in the network.
1
2
3
ADDRESS

Technical data

The technical data of the fieldbus coupler can be found under:

Safety

Danger from incorrect operation and work that is not carried out properly.
This can result in serious personal injury and damage to property.
▶
▶
▶
Danger from electrical current.
This can result in serious personal injury and damage to property.
▶
▶
Danger from unplanned signal transmission.
This can result in serious personal injury and damage to property.
▶
Disconnect the fieldbus coupler from the power supply
Set the rotary selector switch to the desired position using a screwdriver:
- Top switch denotes the unit digit
- Bottom switch denotes the tens digit
Make sure that the switches engage properly.
Restore the power supply of the fieldbus coupler
Example:
Address 34
0
0
WARNING!
All the work and functions described in this document must only be carried out by
technically trained and qualified personnel.
Read and understand this document in full.
Read and understand all safety rules and user documentation for this equipment
and all system components.
WARNING!
Before starting work, switch off all devices and components involved, and discon-
nect them from the grid.
Secure all devices and components involved so they cannot be switched back on.
WARNING!
Do not transfer safety signals via the interface.
