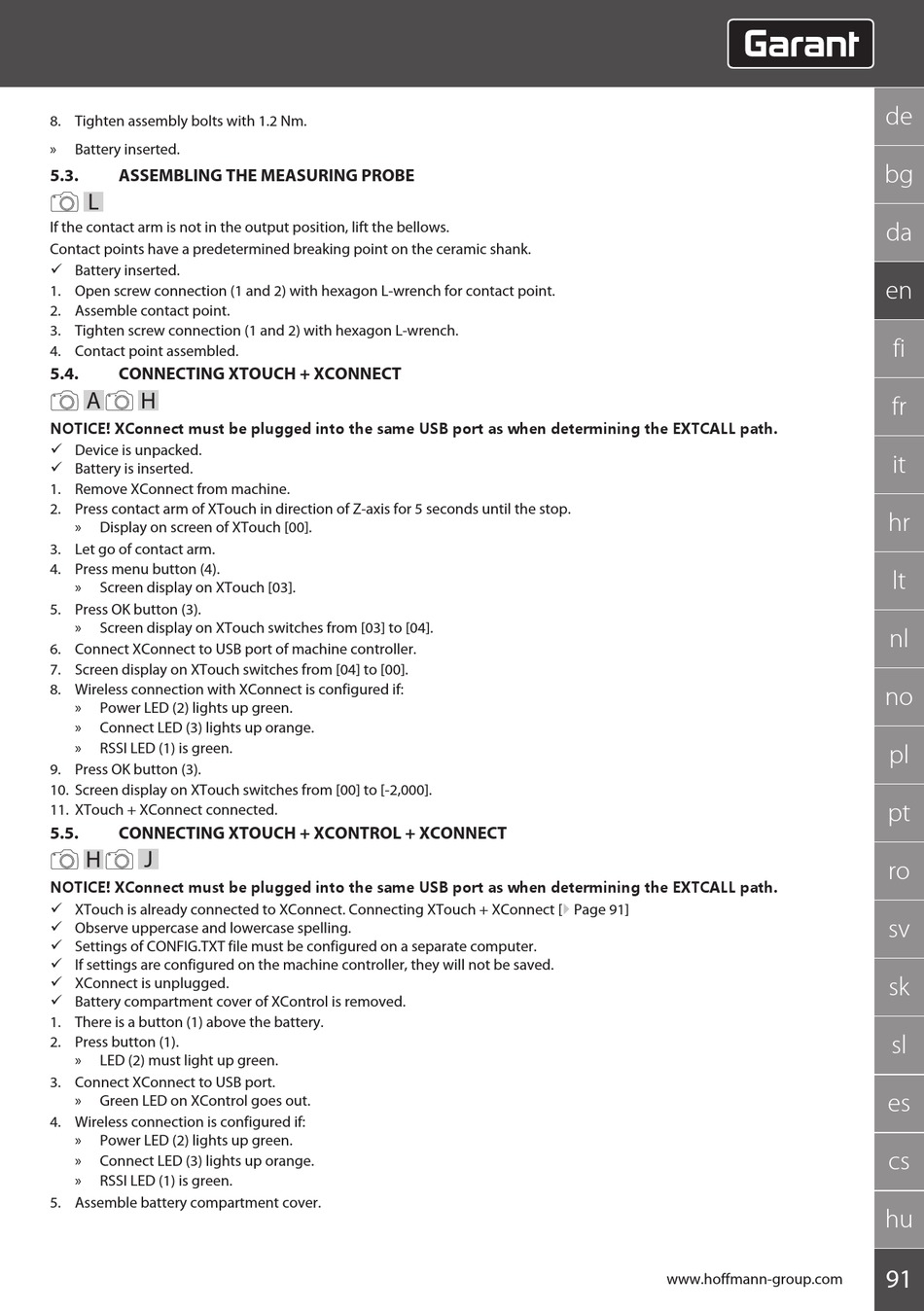

8. Tighten assembly bolts with 1.2 Nm.
»
Battery inserted.
5.3.
ASSEMBLING THE MEASURING PROBE
L
If the contact arm is not in the output position, lift the bellows.
Contact points have a predetermined breaking point on the ceramic shank.
ü Battery inserted.
1. Open screw connection (1 and 2) with hexagon L-wrench for contact point.
2. Assemble contact point.
3. Tighten screw connection (1 and 2) with hexagon L-wrench.
4. Contact point assembled.
5.4.
CONNECTING XTOUCH + XCONNECT
A
H
NOTICE! XConnect must be plugged into the same USB port as when determining the EXTCALL path.
ü Device is unpacked.
ü Battery is inserted.
1. Remove XConnect from machine.
2. Press contact arm of XTouch in direction of Z-axis for 5 seconds until the stop.
»
Display on screen of XTouch [00].
3. Let go of contact arm.
4. Press menu button (4).
»
Screen display on XTouch [03].
5. Press OK button (3).
»
Screen display on XTouch switches from [03] to [04].
6. Connect XConnect to USB port of machine controller.
7. Screen display on XTouch switches from [04] to [00].
8. Wireless connection with XConnect is configured if:
»
Power LED (2) lights up green.
»
Connect LED (3) lights up orange.
»
RSSI LED (1) is green.
9. Press OK button (3).
10. Screen display on XTouch switches from [00] to [-2,000].
11. XTouch + XConnect connected.
5.5.
CONNECTING XTOUCH + XCONTROL + XCONNECT
H
J
NOTICE! XConnect must be plugged into the same USB port as when determining the EXTCALL path.
ü XTouch is already connected to XConnect. Connecting XTouch + XConnect [} Page 91]
ü Observe uppercase and lowercase spelling.
ü Settings of CONFIG.TXT file must be configured on a separate computer.
ü If settings are configured on the machine controller, they will not be saved.
ü XConnect is unplugged.
ü Battery compartment cover of XControl is removed.
1. There is a button (1) above the battery.
2. Press button (1).
»
LED (2) must light up green.
3. Connect XConnect to USB port.
»
Green LED on XControl goes out.
4. Wireless connection is configured if:
»
Power LED (2) lights up green.
»
Connect LED (3) lights up orange.
»
RSSI LED (1) is green.
5. Assemble battery compartment cover.
