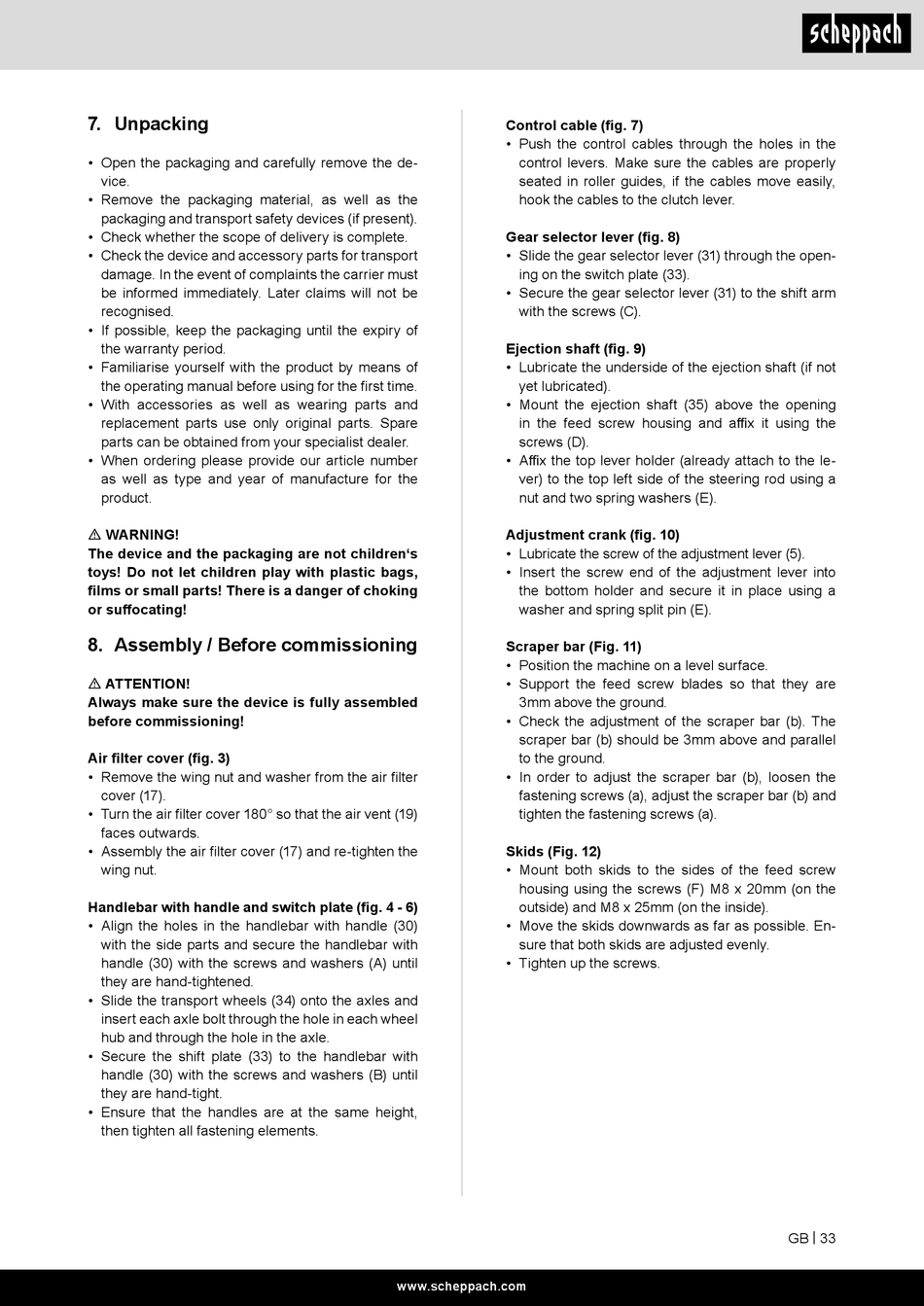

Scheppach ST570 Originalbetriebsanleitung Seite 33

7. Unpacking
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the
packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of
the warranty period.
• Familiarise yourself with the product by means of
the operating manual before using for the first time.
• With accessories as well as wearing parts and
replacement parts use only original parts. Spare
parts can be obtained from your specialist dealer.
• When ordering please provide our article number
as well as type and year of manufacture for the
product.
m WARNING!
The device and the packaging are not children's
toys! Do not let children play with plastic bags,
films or small parts! There is a danger of choking
or suffocating!
8. Assembly / Before commissioning
m ATTENTION!
Always make sure the device is fully assembled
before commissioning!
Air filter cover (fig. 3)
• Remove the wing nut and washer from the air filter
cover (17).
• Turn the air filter cover 180° so that the air vent (19)
faces outwards.
• Assembly the air filter cover (17) and re-tighten the
wing nut.
Handlebar with handle and switch plate (fig. 4 - 6)
• Align the holes in the handlebar with handle (30)
with the side parts and secure the handlebar with
handle (30) with the screws and washers (A) until
they are hand-tightened.
• Slide the transport wheels (34) onto the axles and
insert each axle bolt through the hole in each wheel
hub and through the hole in the axle.
• Secure the shift plate (33) to the handlebar with
handle (30) with the screws and washers (B) until
they are hand-tight.
• Ensure that the handles are at the same height,
then tighten all fastening elements.
Control cable (fig. 7)
• Push the control cables through the holes in the
control levers. Make sure the cables are properly
seated in roller guides, if the cables move easily,
hook the cables to the clutch lever.
Gear selector lever (fig. 8)
• Slide the gear selector lever (31) through the open-
ing on the switch plate (33).
• Secure the gear selector lever (31) to the shift arm
with the screws (C).
Ejection shaft (fig. 9)
• Lubricate the underside of the ejection shaft (if not
yet lubricated).
• Mount the ejection shaft (35) above the opening
in the feed screw housing and affix it using the
screws (D).
• Affix the top lever holder (already attach to the le-
ver) to the top left side of the steering rod using a
nut and two spring washers (E).
Adjustment crank (fig. 10)
• Lubricate the screw of the adjustment lever (5).
• Insert the screw end of the adjustment lever into
the bottom holder and secure it in place using a
washer and spring split pin (E).
Scraper bar (Fig. 11)
• Position the machine on a level surface.
• Support the feed screw blades so that they are
3mm above the ground.
• Check the adjustment of the scraper bar (b). The
scraper bar (b) should be 3mm above and parallel
to the ground.
• In order to adjust the scraper bar (b), loosen the
fastening screws (a), adjust the scraper bar (b) and
tighten the fastening screws (a).
Skids (Fig. 12)
• Mount both skids to the sides of the feed screw
housing using the screws (F) M8 x 20mm (on the
outside) and M8 x 25mm (on the inside).
• Move the skids downwards as far as possible. En-
sure that both skids are adjusted evenly.
• Tighten up the screws.
