4.8 Short instructions – opening with override key
For cutting:
Opening with override key (plastic control unit)
1. Press tool into the right
hand hole until catch
loosens.
Hold the tool pressed in
and carefully raise the
cover plate.
3. Remove bar handle and
drive shaft (square end)
(lift off contact activated
acoustic signal).

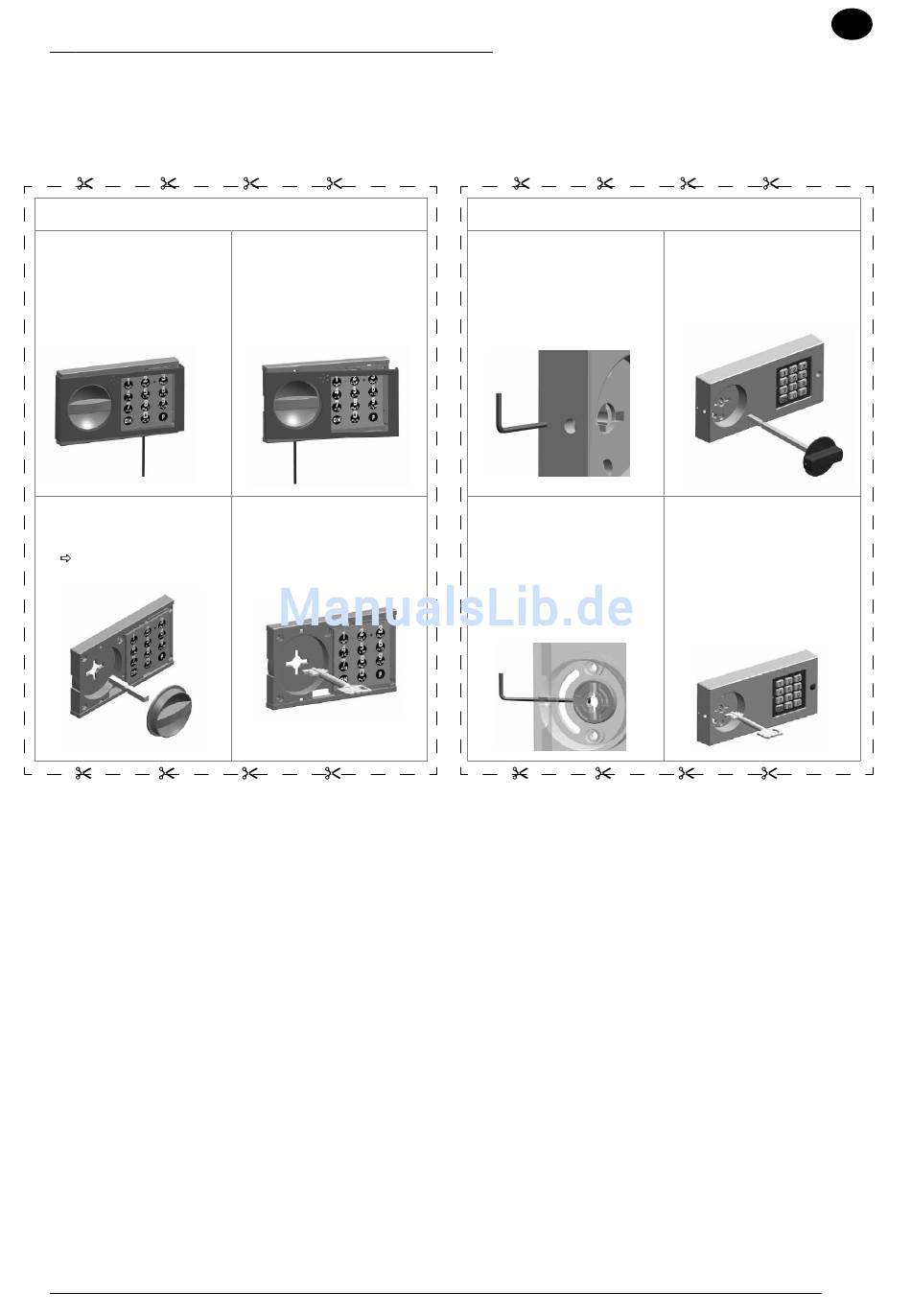

Diagram 6: Plastic control unit
Kaba Mauer GmbH
2. Repeat the process on
the left hand hole and
carefully lift off the cover
plate.
4. Insert key (long bit left)
and turn clockwise until
stop position reached.
82132 Code-Combi B
Opening with override key (aluminium control unit)
1. Insert Allen key (2 mm)
provided into rear hole
and loosen screw inside.
Do not completely un-
screw it.
3. If shaft mounting covers
keyhole, pull out Allen key.
Adjust shaft mounting
with aid of drive shaft
(square end) as to reveal
the keyhole.
Diagram 7: Aluminium control unit
GB
2. Pull out bar handle with
drive shaft (square end).
4. Insert key and turn clock-
wise to stop (key cannot
be removed).
Page 43
