2 Signals and what they mean

Plastic control unit:
Green LED

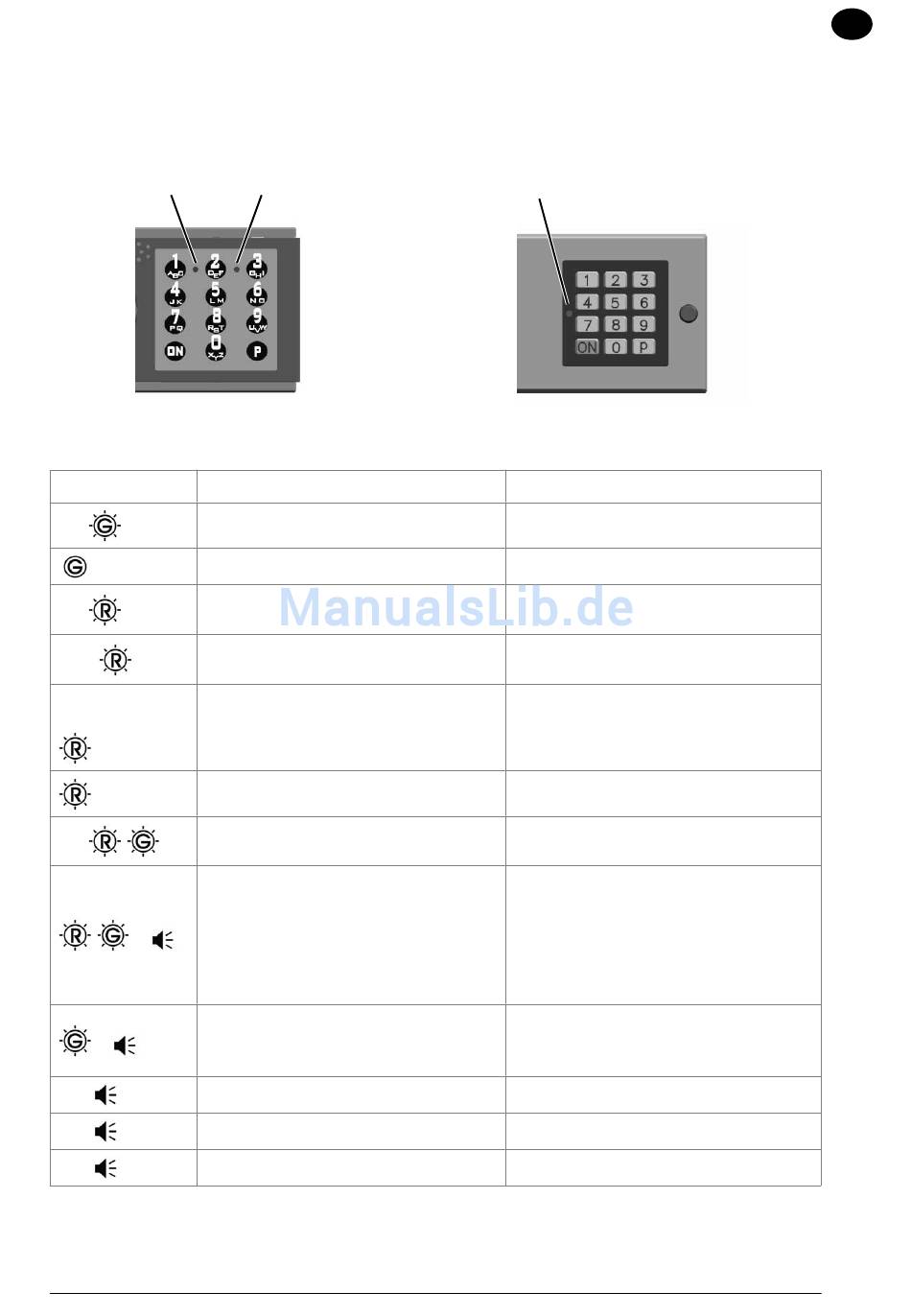

Diagram 1: Control units
Symbol Signal
1 x Green LED fl ashes once
Green LED remains lit up
3 x Red LED fl ashes 3 times
Red LED fl ashes 10 times
10 x
after ON button pressed
1, 2, 4, 8 or
Red LED fl ashes every second for
16 minutes
1, 2, 4, 8 or 16 minutes
after ON button pressed
Red LED fl ashes every 5 seconds
Red and green LED fl ash
3 x
alternately 3 times
Red and green LED fl ash
/
accompanied by an acoustic signal
Green LED fl ashes every 5 sec-
onds accompanied by an acoustic
/
signal
1 x Acoustic signal sounds once
2 x Acoustic signal sounds 2 times
3 x
Acoustic signal sounds 3 times
Kaba Mauer GmbH
Red LED
82132 Code-Combi B
Aluminium control unit:
Combined green/red LED
Meaning
Valid 6-digit code entered
Lock is ready for programming
Invalid code entered or entry
suspended by pressing P button
Insuffi cient voltage
Lock is in blocked status
Lock is in time delay status
Lock was last opened with another
code
Plastic control unit: Covering plate
removed for key opening
Aluminium control unit: Battery case
lid was opened to change batter-
ies or attempt to tamper with lock
(demontage of the control unit)
Lock is in opening window status
End of opening window period
New 6-digit code entered
Invalid 6-digit code entered
