ICE11-8IOL-G60L-V1D
Inbetriebnahme bei PROFINET
I&M0-Daten
IM_Serial_Number
IM_Hardware_Revision
IM_Software_Revision
IM_RevisionCounter
IM_Profile_ID
IM_Profile_Specific_Type
IM_Version
IM_Supported
Tabelle 7.15

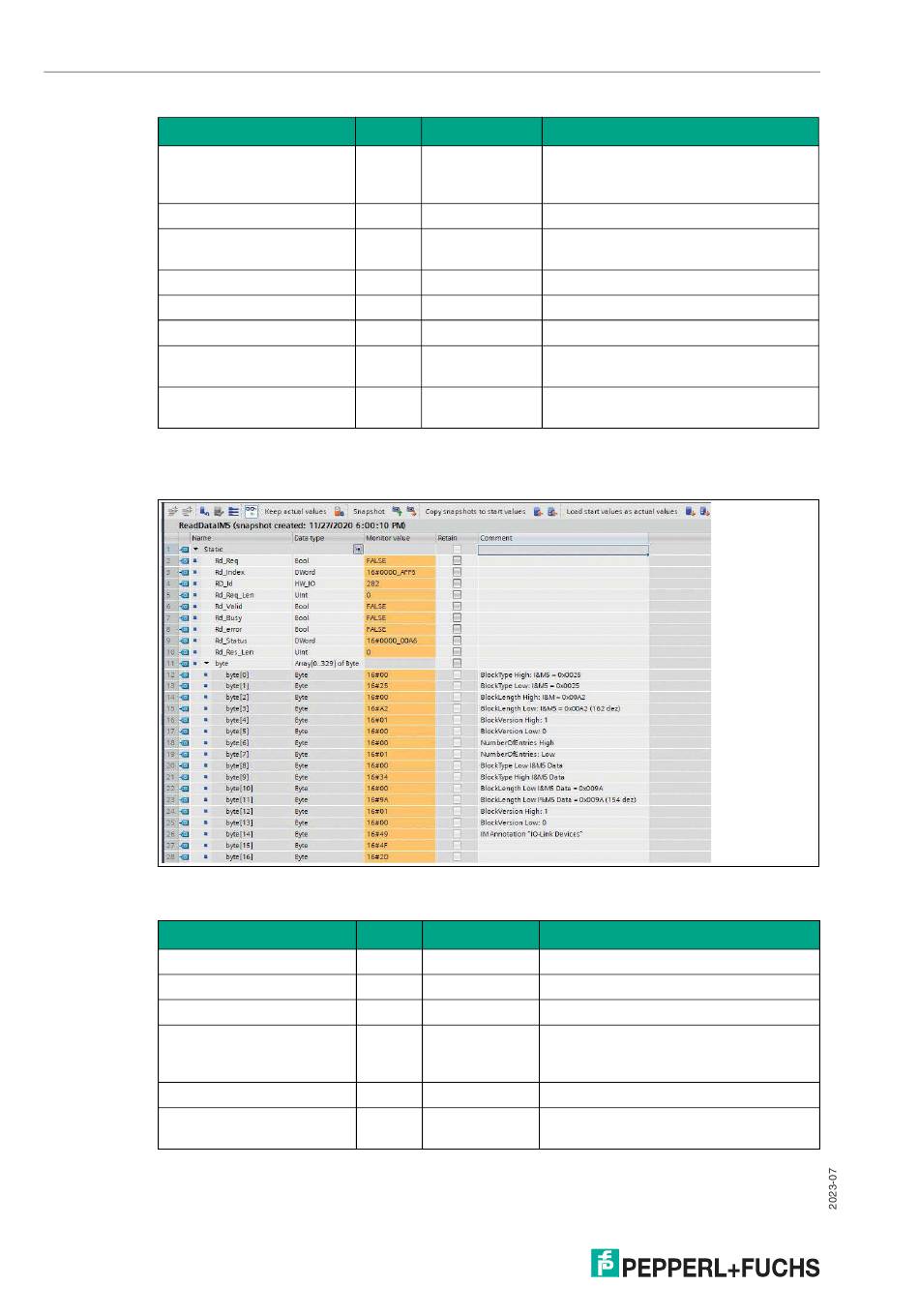

"Read"-Beispiel I&M5 an Port X1 mit angeschlossenem IOL-Device
Abbildung 7.50
I&M 5
I&M5-Daten
IM_Annotation
IM_OrderID
IM_VendorID
IM_Serial_Number
IM_Hardware_Revision
IM_Software_Revision
Tabelle 7.16
94
Oktette Datentyp
16 Visible String
2 Unsigned8
4 Char,3 x Unsi-
gned8
2 Unsigned16
2 Unsigned16
2 Unsigned16
2 2 x Unsigned8
2 Unsigned16
(Bit Array)
I&M 0 (Slot 1: IO System 1.2 - 1.9, Index 0xAFF0)
Oktette Datentyp
64 String (UTF8)
64 Visible String
2 Unsigned16
16 Visible String
2 Unsigned8
4 Char,3 x Unsi-
gned8
I&M 5 (Slot 1: IO System 1.2 - 1.9, Index 0xAFF5)
Mapping-Regel
Insert SerialNumber of Device (IO-
Link Index 21). If it is not available set
to "Not accessible"
Set to 0x0000 (Default value)
Set to V0.0.0 (official release but not
detectable)
Set to "0" (0x0000)
IO-Link (API = 0x4E01)
Set to "0" (0x0000)
Octet 1 (MSB): set to 0x01
Octet 2 (LSB): set to 0x00
Profile specific I&M: 0x0000 (Bit 0 for
I&M0 is always 0)
Mapping-Regel
"IO-Link Devices"
"Product Name" or "DeviceID"
"VendorID"
Insert SerialNumber of device (IO-Link
Index 21). If it is not available, set to
"Not accessible".
Set to 0x0000 (default value)
Set to V0.0.0 (official release but not
detectable)
