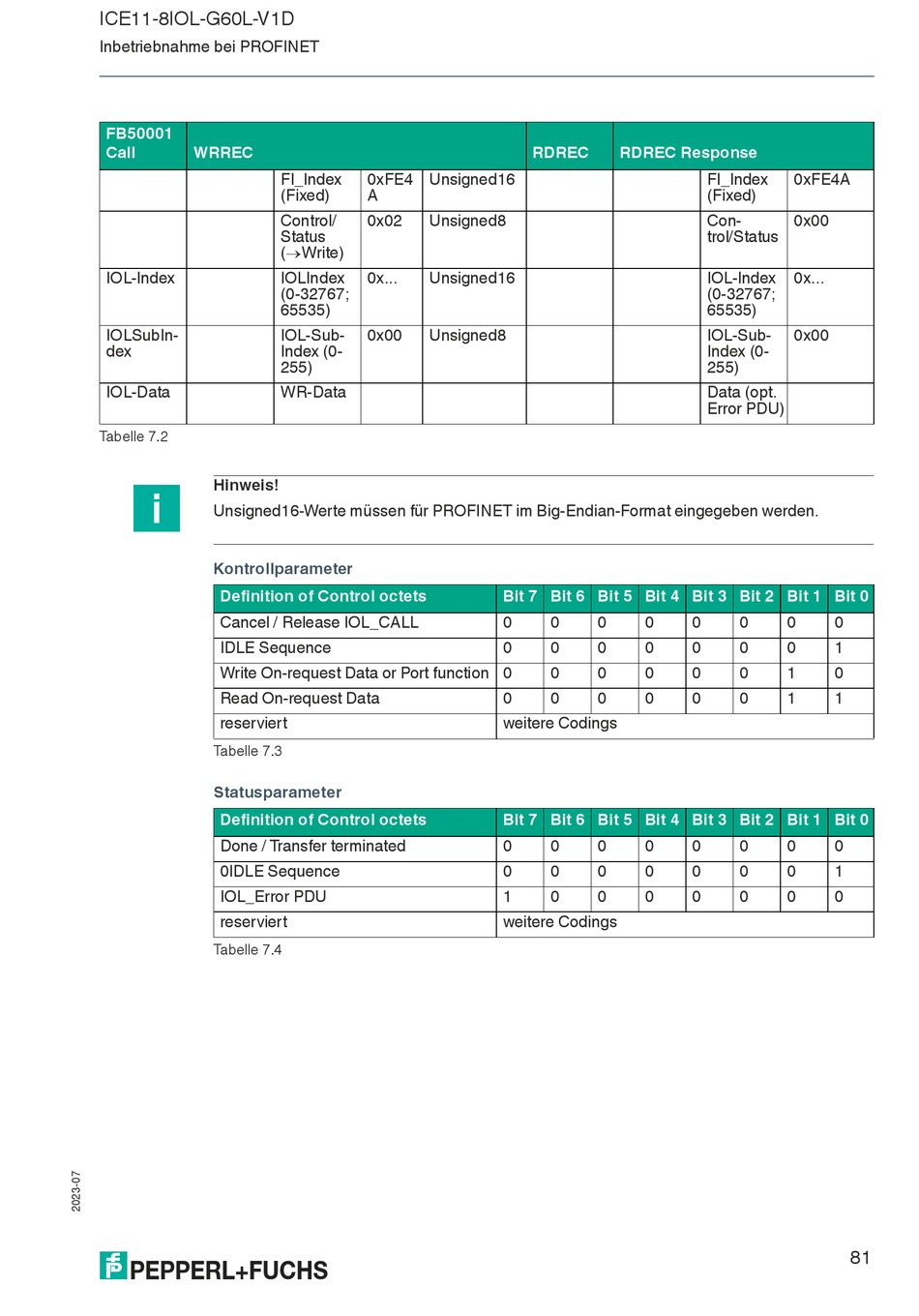

ICE11-8IOL-G60L-V1D
Inbetriebnahme bei PROFINET
FB50001
Call WRREC
IOL-Index
IOLSubIn-
dex
IOL-Data
Tabelle 7.2
Hinweis!
Unsigned16-Werte müssen für PROFINET im Big-Endian-Format eingegeben werden.
Kontrollparameter
Definition of Control octets
Cancel / Release IOL_CALL
IDLE Sequence
Write On-request Data or Port function 0
Read On-request Data
reserviert
Tabelle 7.3
Statusparameter
Definition of Control octets
Done / Transfer terminated
0IDLE Sequence
IOL_Error PDU
reserviert
Tabelle 7.4
FI_Index 0xFE4 Unsigned16
(Fixed) A
Control/ 0x02 Unsigned8
Status
(Write)
IOLIndex 0x... Unsigned16
(0-32767;
65535)
IOL-Sub- 0x00 Unsigned8
Index (0-
255)
WR-Data
RDREC RDREC Response
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
0 0 0 0
0 0 0 0
0 0 0
0 0 0 0
weitere Codings
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
0 0 0 0
0 0 0 0
1 0 0 0
weitere Codings
FI_Index 0xFE4A
(Fixed)
Con- 0x00
trol/Status
IOL-Index 0x...
(0-32767;
65535)
IOL-Sub- 0x00
Index (0-
255)
Data (opt.
Error PDU)
0 0 0 0
0 0 0 1
0 0 1 0
0 0 1 1
0 0 0 0
0 0 0 1
0 0 0 0
