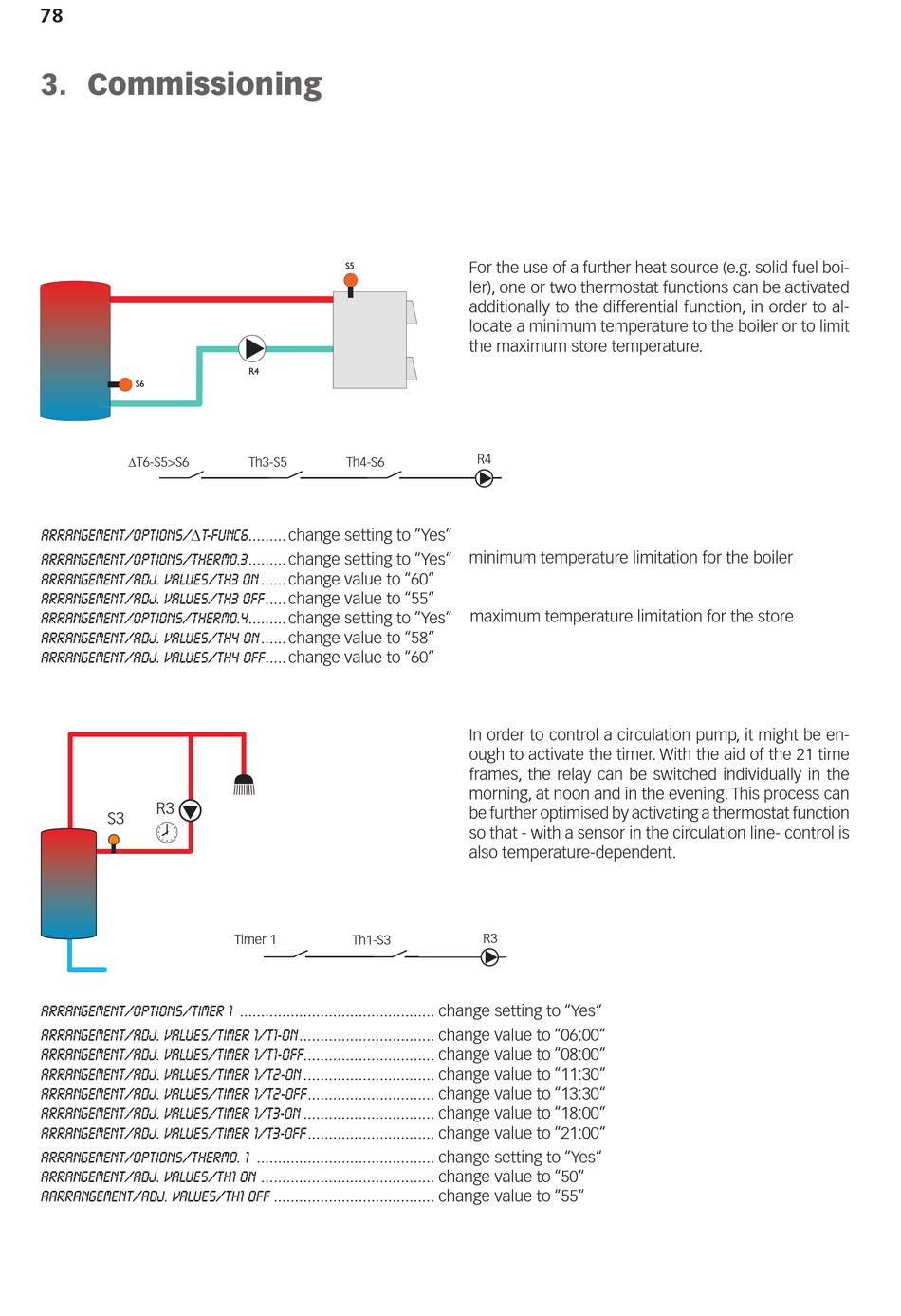

3. Commissioning
S6
DT6-S5>S6
arrangement/Options/DT-Func6 ......... change setting to "Yes"
arrangement/Options/Thermo.3 ......... change setting to "Yes"
arrangement/adj. values/Th3 on ...... change value to "60"
arrangement/adj. values/Th3 off ..... change value to "55"
arrangement/Options/Thermo.4 ......... change setting to "Yes"
arrangement/adj. values/Th4 on ...... change value to "58"
arrangement/adj. values/Th4 off ..... change value to "60"
R3
S3

arrangement/Options/timer 1 .............................................. change setting to "Yes"
arrangement/adj. values/timer 1/t1-on ................................ change value to "06:00"
arrangement/adj. values/timer 1/t1-off............................... change value to "08:00"
arrangement/adj. values/timer 1/t2-on ............................... change value to "11:30"
arrangement/adj. values/timer 1/t2-off .............................. change value to "13:30"
arrangement/adj. values/timer 1/t3-on ............................... change value to "18:00"
arrangement/adj. values/timer 1/t3-off .............................. change value to "21:00"
arrangement/Options/Thermo. 1 .......................................... change setting to "Yes"
arrangement/adj. values/Th1 on ......................................... change value to "50"
Aarrangement/adj. values/Th1 off ...................................... change value to "55"
S5
R4
Th3-S5 Th4-S6
Timer 1 Th1-S3
For the use of a further heat source (e.g. solid fuel boi-
ler), one or two thermostat functions can be activated
additionally to the differential function, in order to al-
locate a minimum temperature to the boiler or to limit
the maximum store temperature.
R4
minimum temperature limitation for the boiler
maximum temperature limitation for the store
In order to control a circulation pump, it might be en-
ough to activate the timer. With the aid of the 21 time
frames, the relay can be switched individually in the
morning, at noon and in the evening. This process can
be further optimised by activating a thermostat function
so that - with a sensor in the circulation line- control is
also temperature-dependent.
R3
