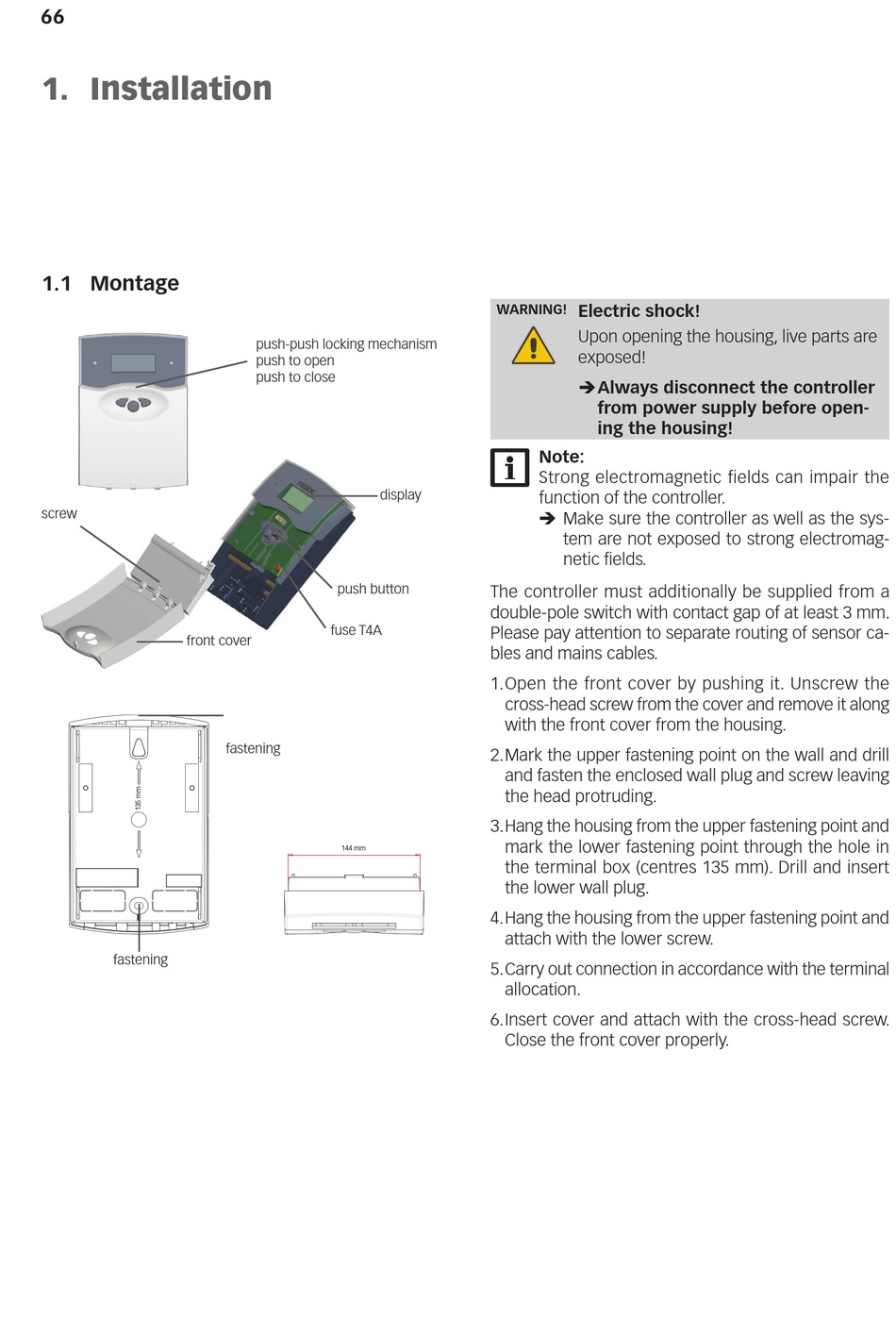

1. Installation

1.1 Montage
screw
front cover
fastening
push-push locking mechanism
push to open
push to close
display
push button
fuse T4A
fastening
144 mm
Electric shock!
WARNING!
Upon opening the housing, live parts are
exposed!
ÎAlways disconnect the controller
from power supply before open-
ing the housing!
Note:
Strong electromagnetic fields can impair the
function of the controller.
Î Make sure the controller as well as the sys-
tem are not exposed to strong electromag-
netic fields.
The controller must additionally be supplied from a
double-pole switch with contact gap of at least 3 mm.
Please pay attention to separate routing of sensor ca-
bles and mains cables.
1. Open the front cover by pushing it. Unscrew the
cross-head screw from the cover and remove it along
with the front cover from the housing.
2. Mark the upper fastening point on the wall and drill
and fasten the enclosed wall plug and screw leaving
the head protruding.
3. Hang the housing from the upper fastening point and
mark the lower fastening point through the hole in
the terminal box (centres 135 mm). Drill and insert
the lower wall plug.
4. Hang the housing from the upper fastening point and
attach with the lower screw.
5. Carry out connection in accordance with the terminal
allocation.
6. Insert cover and attach with the cross-head screw.
Close the front cover properly.
