3. Commissioning
3.2 Basic systems
and hydraulic variants

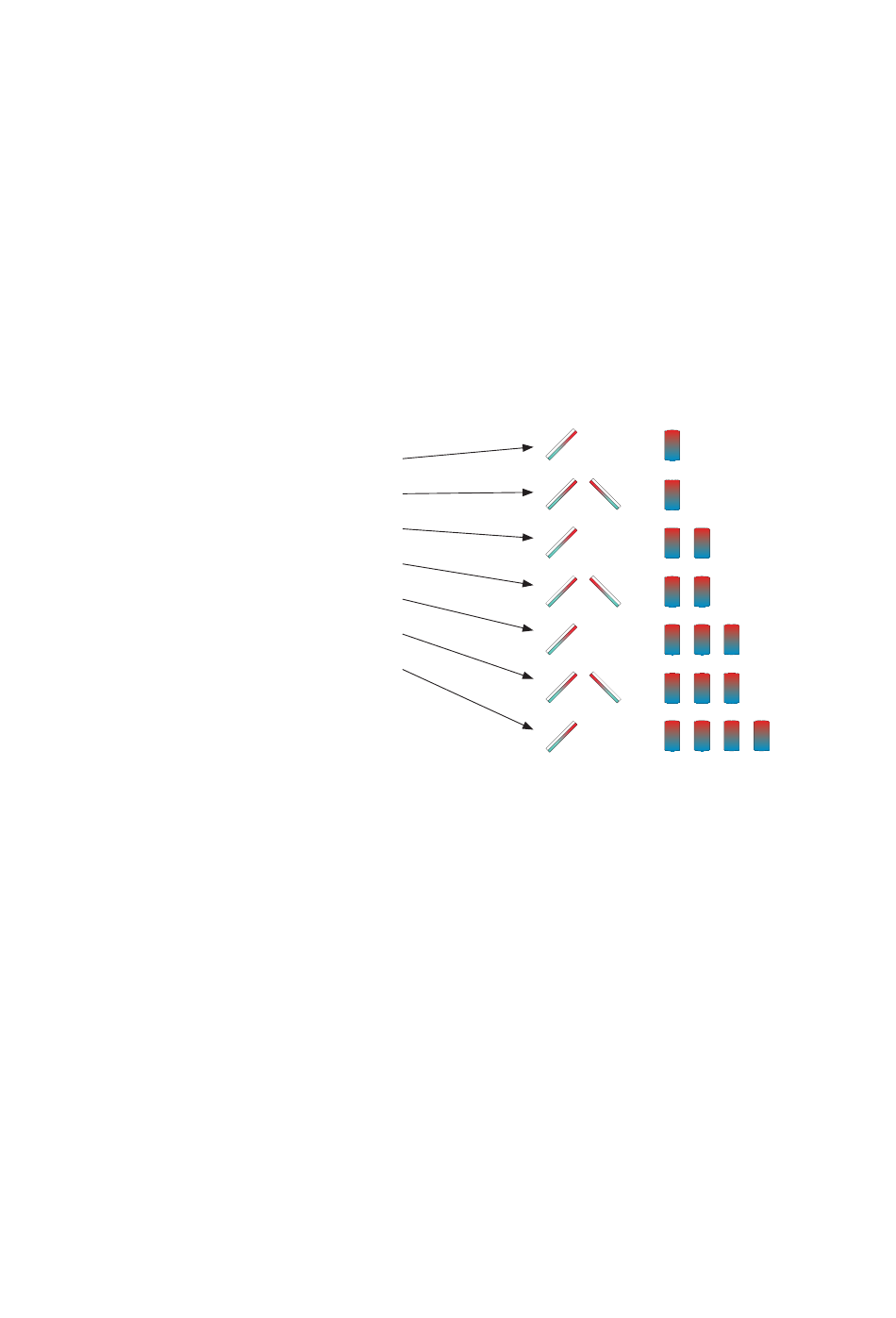

System 1: 1 collector field
System 2: east/west collectors
System 3: 1 collector field
System 4: east/west collectors
System 5: 1 collector field
System 6: east/west collectors
System 7: 1 collector field
A solar system with a store charging in layers is imple-
mented as a 2-store system (store top = store 1; store
bottom = store 2).
- 1 store
- 1 store
- 2 stores
- 2 stores
- 3 stores
- 3 stores
- 4 stores
The controller is preprogrammed for 7 basic systems.
The selection depends on the number of heat sources
(collector fields) and heat sinks (stores, pool). Factory
setting is system 1.
