Data Communication / Bus; Sensors - Cosmo Multi 2 Montage- Und Bedienungsanleitung

1. Installation
1.2.3

Data communication / bus

COSMO GmbH
D-22549 Hamburg
Multi 2
SW 2.0
Vor Öffnen Gerät spannungslos
terminals
schalten!
Isolate mains before removing cover!
Masse-Sammelklemme benutzen
Use the ground common terminal block
1 2 3 4 5 6
1.2.4

Sensors

Sensors
ground-common terminal block
OK / Set
IP 20
floating relay
Bus
VBus
VBus
Neutralleiter.
Sammelklemme benutzen!
Use neutral conductor
collective block
Erdungsleiter-Sammel-
klemme benutzen!
Use ground common
terminal block!
R1-R6 1 (1) A (100 ... 240) V~
R7 4 (1) A (100 ... 240) V~
T4A
The controller is equipped with the VBus
fer with and energy supply to external modules. The
semiconductor relay
connection is carried out at the two terminals marked
"VBus " (either polarity). One or more VBus
®
can be connected via this data bus:
• WMZ, calorimeter
• large display / Smart Display
• Datalogger
• COSMO heating circuit modules HKM
(up to 3 modules)
OK / Set
IP 20
floating relay

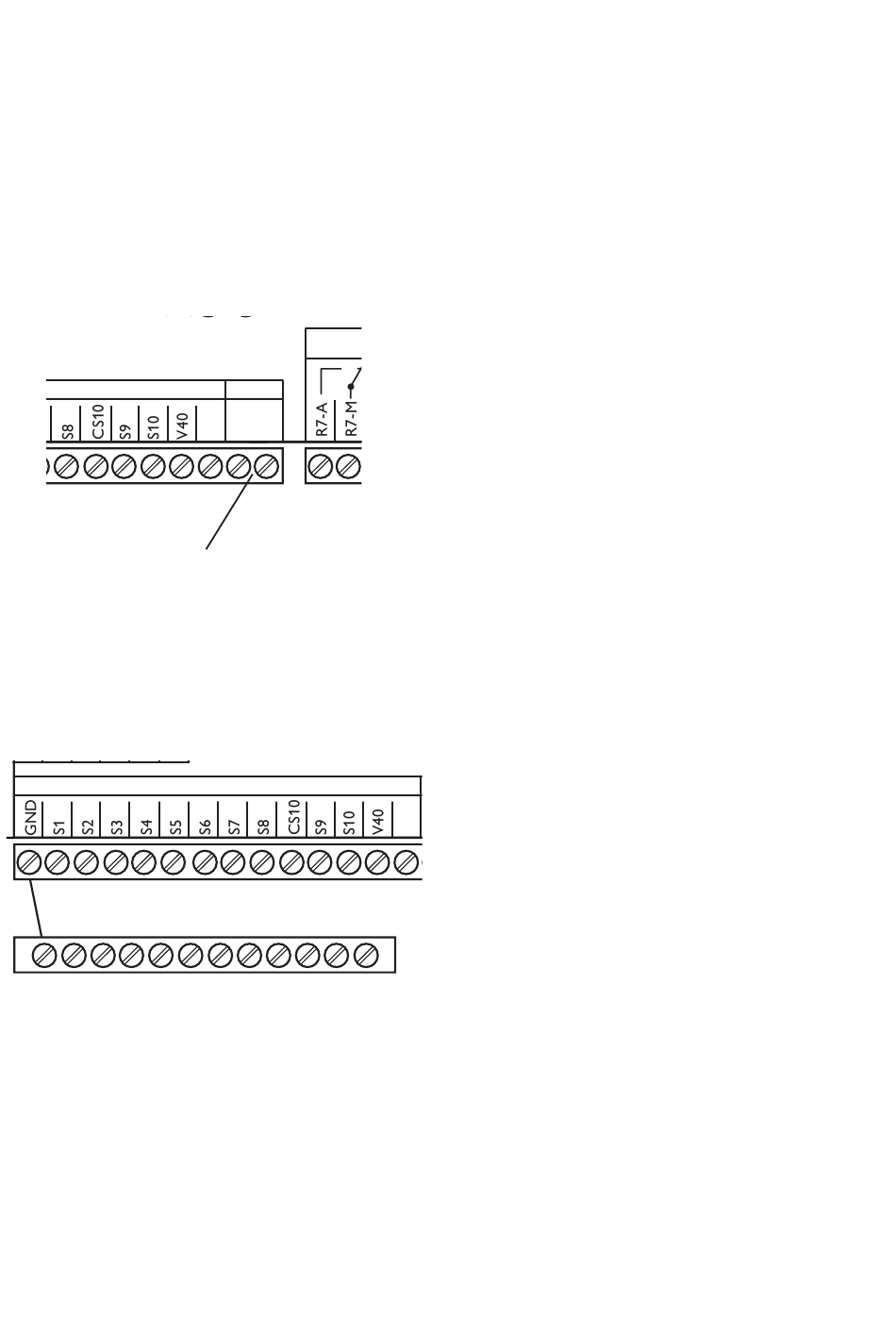

The controller is equipped with 12 sensor inputs in
Bus
total. The ground connection for the sensors has to be
VBus
carried out via the ground terminal block (GND).
• Temperature sensors have to be connected to the
terminals S1 ... S10 and GND (either polarity)
• The irradiation sensor (CS10) is to be connected to
the terminals CS10 and GND with correct polarity.
Connect the terminal GND of the sensor to the termi-
nal GND of the controller (ground terminal block), and
the terminal CS of the sensor to the terminal CS10 of
the controller.
• A flowmeter V40 can be connected to the terminals
V40 and GND (either polarity).
L' L N
Neutralleiter.
Sammelklemme benutzen!
Use neutral conductor
collective block
Erdungsleiter-Sammel-
klemme benutzen!
Use ground common
terminal block!
R1-R6 1 (1) A (100 ... 240) V~
R7 4 (1) A (100 ... 240) V~
T4A
semiconductor relay
69
for data trans-
®
modules
®
