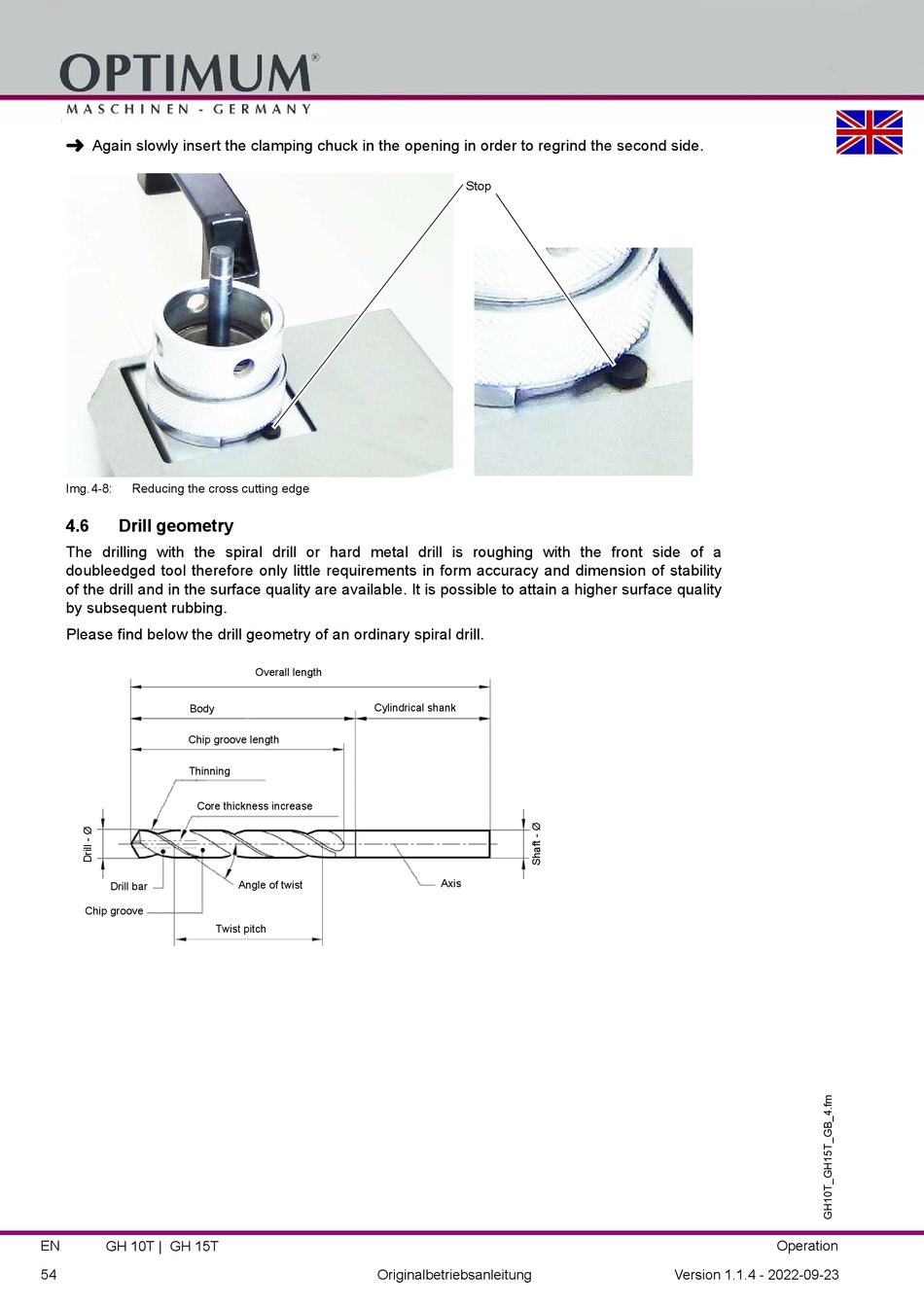

Again slowly insert the clamping chuck in the opening in order to regrind the second side.
Img.4-8: Reducing the cross cutting edge
4.6

Drill geometry

The drilling with the spiral drill or hard metal drill is roughing with the front side of a
doubleedged tool therefore only little requirements in form accuracy and dimension of stability
of the drill and in the surface quality are available. It is possible to attain a higher surface quality
by subsequent rubbing.
Please find below the drill geometry of an ordinary spiral drill.
Body
Chip groove length
Thinning
Core thickness increase
Drill bar
Chip groove
