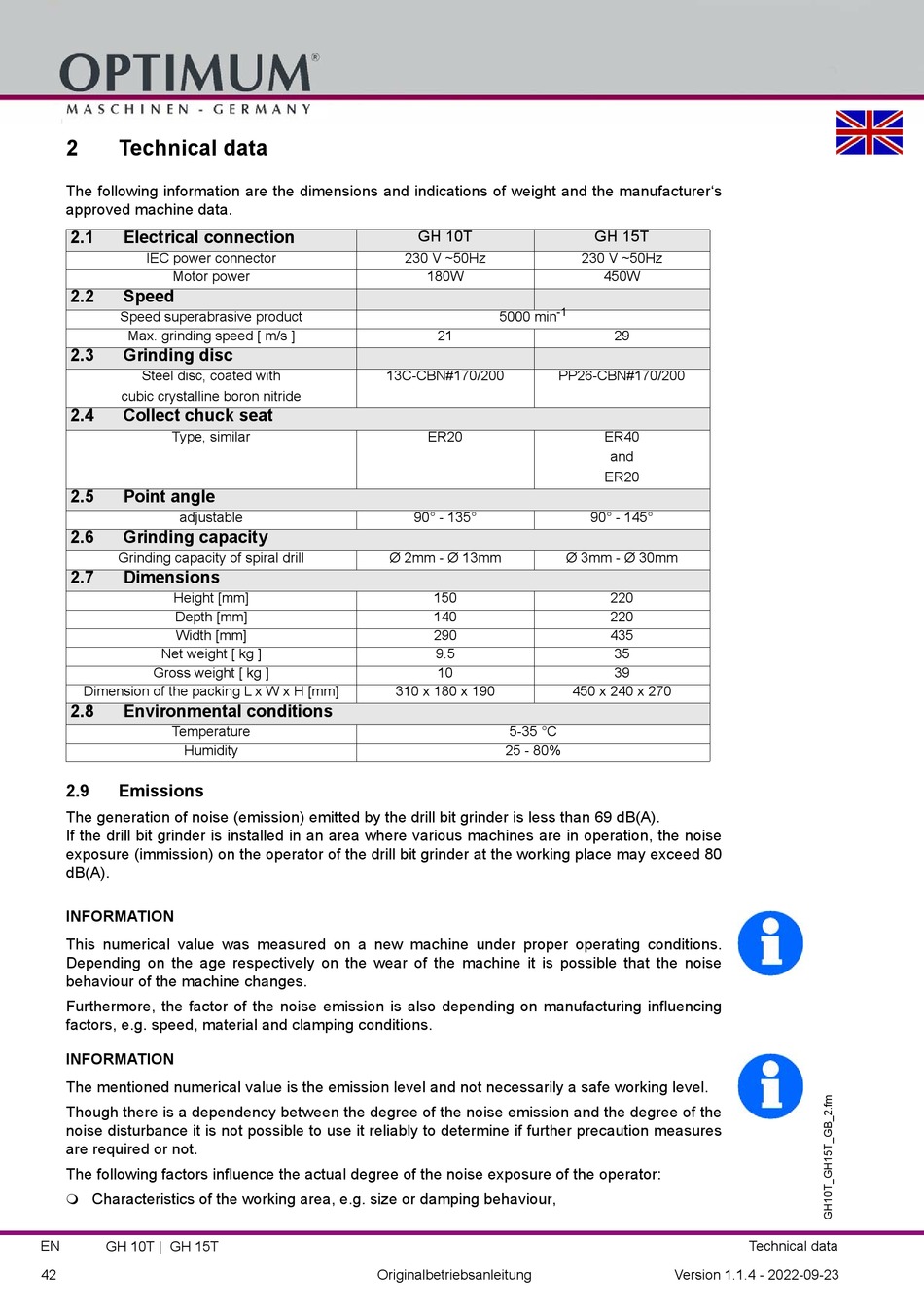

Technical data
The following information are the dimensions and indications of weight and the manufacturer's
approved machine data.
2.1
Electrical connection
IEC power connector
Motor power
2.2
Speed
Speed superabrasive product
Max. grinding speed [ m/s ]
2.3
Grinding disc
Steel disc, coated with
cubic crystalline boron nitride
2.4
Collect chuck seat
Type, similar
2.5
Point angle
adjustable
2.6
Grinding capacity
Grinding capacity of spiral drill
2.7
Dimensions
Height [mm]
Depth [mm]
Width [mm]
Net weight [ kg ]
Gross weight [ kg ]
Dimension of the packing L x W x H [mm]
2.8
Environmental conditions
Temperature
Humidity
2.9
Emissions
The generation of noise (emission) emitted by the drill bit grinder is less than 69 dB(A).
If the drill bit grinder is installed in an area where various machines are in operation, the noise
exposure (immission) on the operator of the drill bit grinder at the working place may exceed 80
dB(A).
INFORMATION
This numerical value was measured on a new machine under proper operating conditions.
Depending on the age respectively on the wear of the machine it is possible that the noise
behaviour of the machine changes.
Furthermore, the factor of the noise emission is also depending on manufacturing influencing
factors, e.g. speed, material and clamping conditions.
INFORMATION
The mentioned numerical value is the emission level and not necessarily a safe working level.
Though there is a dependency between the degree of the noise emission and the degree of the
noise disturbance it is not possible to use it reliably to determine if further precaution measures
are required or not.
The following factors influence the actual degree of the noise exposure of the operator:
Characteristics of the working area, e.g. size or damping behaviour,
EN
GH 10T | GH 15T
42
GH 10T
230 V ~50Hz
180W
5000 min
21
13C-CBN#170/200
ER20
90° - 135°
Ø 2mm - Ø 13mm
150
140
290
9.5
10
310 x 180 x 190
5-35 °C
25 - 80%
Originalbetriebsanleitung
GH 15T
230 V ~50Hz
450W
-1
29
PP26-CBN#170/200
ER40
and
ER20
90° - 145°
Ø 3mm - Ø 30mm
220
220
435
35
39
450 x 240 x 270
Version 1.1.4 - 2022-09-23
Technical data
