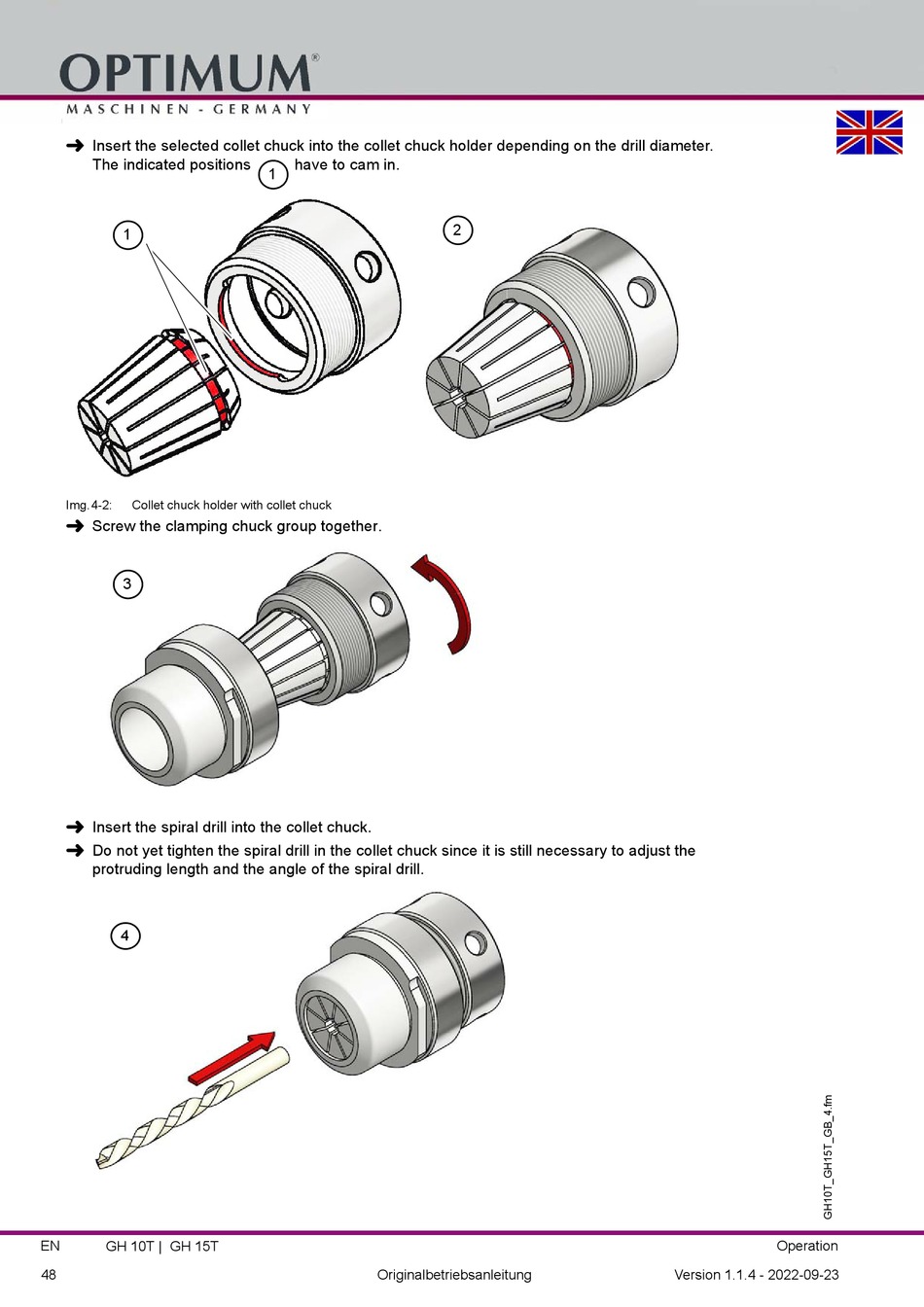

Insert the selected collet chuck into the collet chuck holder depending on the drill diameter.
The indicated positions
1
Img.4-2: Collet chuck holder with collet chuck

Screw the clamping chuck group together.
3

Insert the spiral drill into the collet chuck.

Do not yet tighten the spiral drill in the collet chuck since it is still necessary to adjust the
protruding length and the angle of the spiral drill.
4
EN
GH 10T | GH 15T
48
have to cam in.
