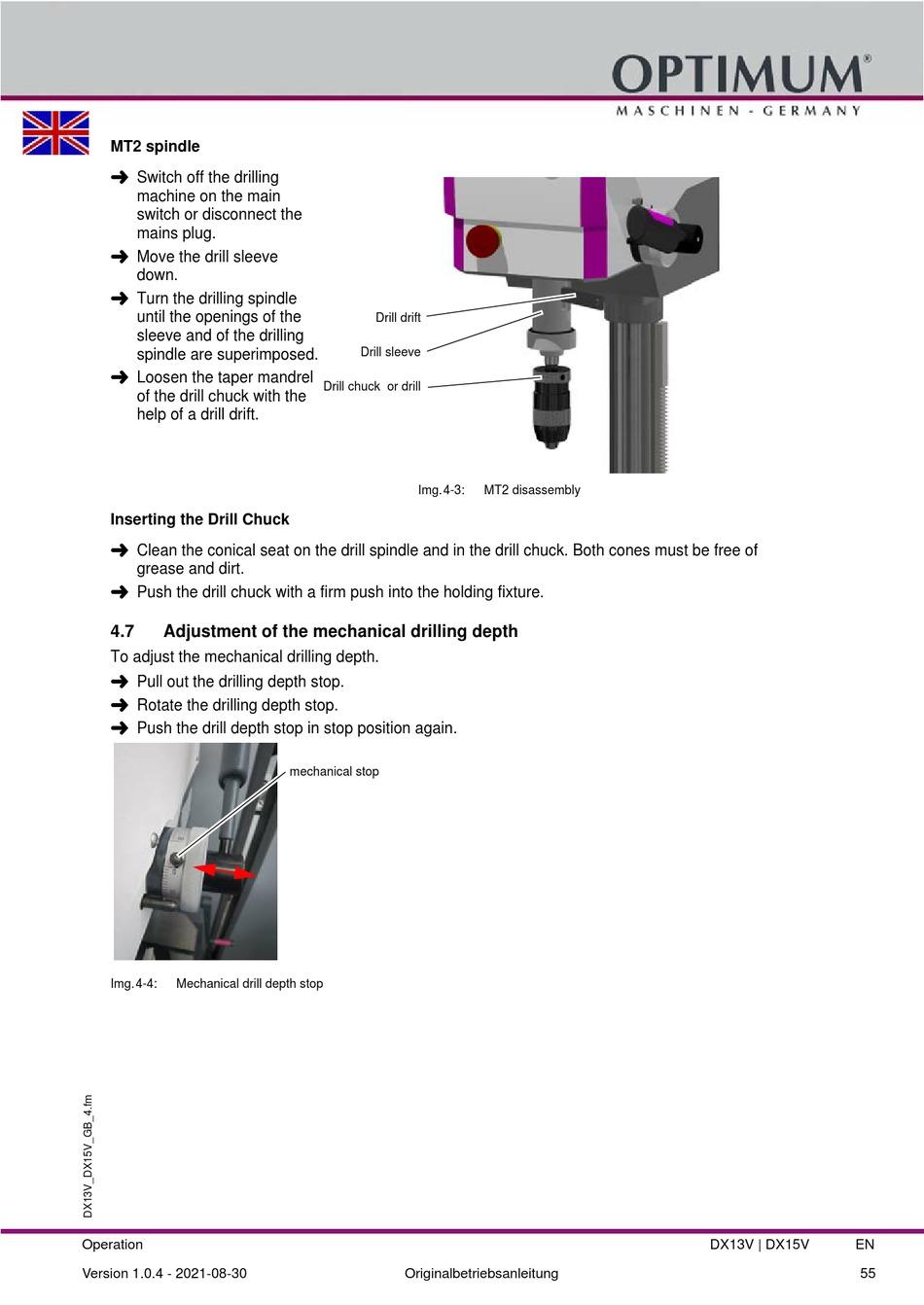

MT2 spindle

Switch off the drilling
machine on the main
switch or disconnect the
mains plug.

Move the drill sleeve
down.

Turn the drilling spindle
until the openings of the
sleeve and of the drilling
spindle are superimposed.

Loosen the taper mandrel
of the drill chuck with the
help of a drill drift.
Inserting the Drill Chuck

Clean the conical seat on the drill spindle and in the drill chuck. Both cones must be free of
grease and dirt.

Push the drill chuck with a firm push into the holding fixture.
4.7

Adjustment of the mechanical drilling depth

To adjust the mechanical drilling depth.

Pull out the drilling depth stop.

Rotate the drilling depth stop.

Push the drill depth stop in stop position again.
Img.4-4: Mechanical drill depth stop
